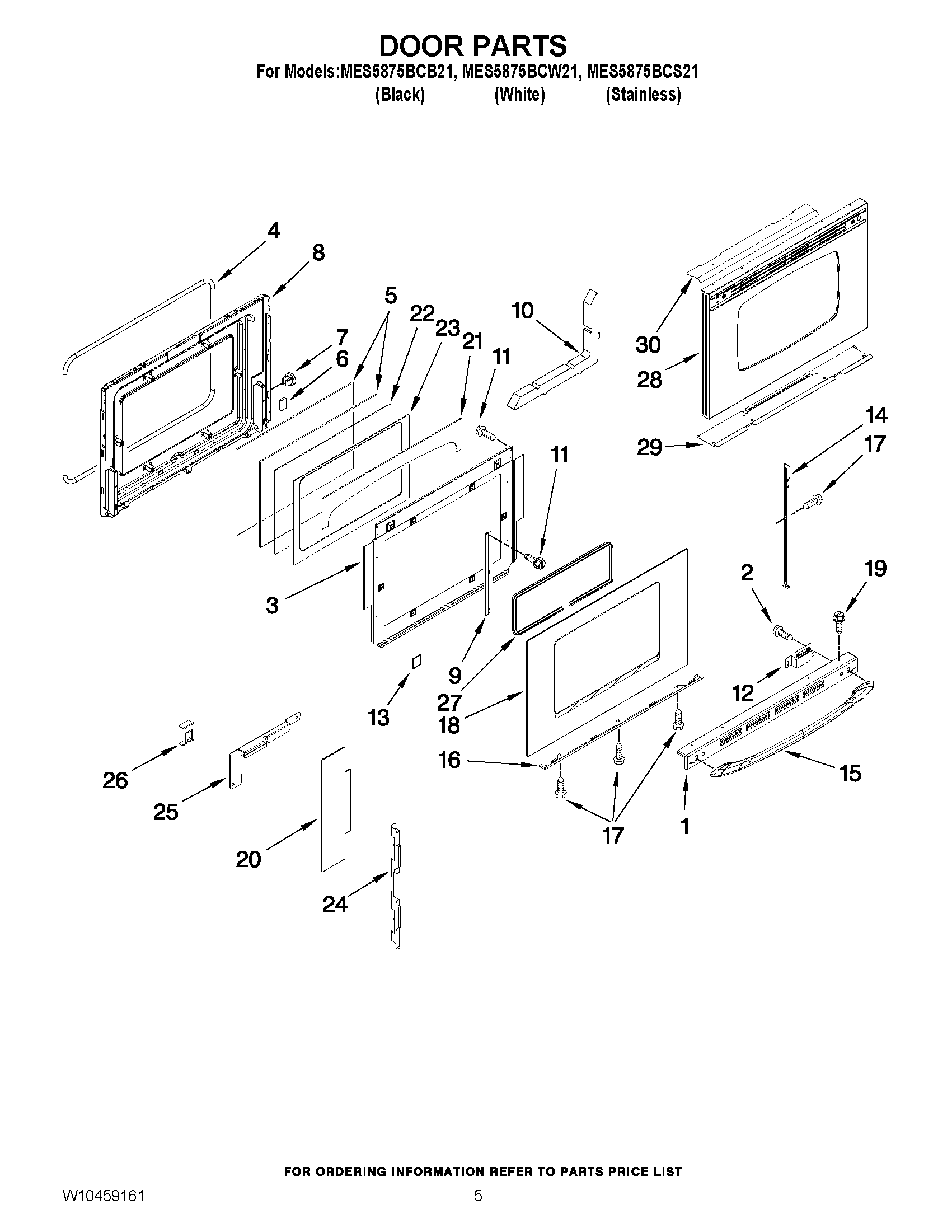

MES5875BCS21 04 – DOOR PARTS

Products

Position	Product
1	MAY 3608F141-71
1	MAY 3608F141-70
2	SCREW, HANDLE (2)
2	MAY 7101P681-60
3	MAY 3601F373-51
4	MAY W10162384
5	Glass, Inner
6	MAY 8010P130-60
7	MAY 7103P141-60
8	MAY 2402W312-19
9	BRACKET, INNER GLASS
10	MAY 7002P246-60
11	MAY 7101P426- 60
12	MAY 3801F832-45
12	MAY 3801F831-45
13	SPACER, RUBBER
14	MAY 3608F117-70
14	MAY 3608F116-70
14	MAY 3608F117-71
14	MAY 3608F116-71
15	MAY 7701P517-60
15	MAY 7701P516-60
15	HANDLE, DOOR (STAINLESS)
16	MAY 3807F708-70
16	MAY 3807F708-71
17	Screw (2) (Black)
18	GLASS, DOOR (INCL. FOIL TAPE) (BLACK)
18	GLASS, DOOR (INCL. FOIL TAPE) (WHITE)
19	SCREW (10ABX1/4P TR ZN)
20	INSULATION, FOIL
21	MAY 7002P403-60
22	GLASS, INNER COATED
23	MAY 7902P752-60
24	RETAINER, GLASS SUPPORT
25	MAY 3804F307-51
25	MAY 3804F308-51
26	CLIP, DOOR
27	MAY 7201P141-60
28	PANEL, OUTER DOOR (STAINLESS)
29	RETAINER, GLASS (LOWER)
30	MAY 3604F418-51
