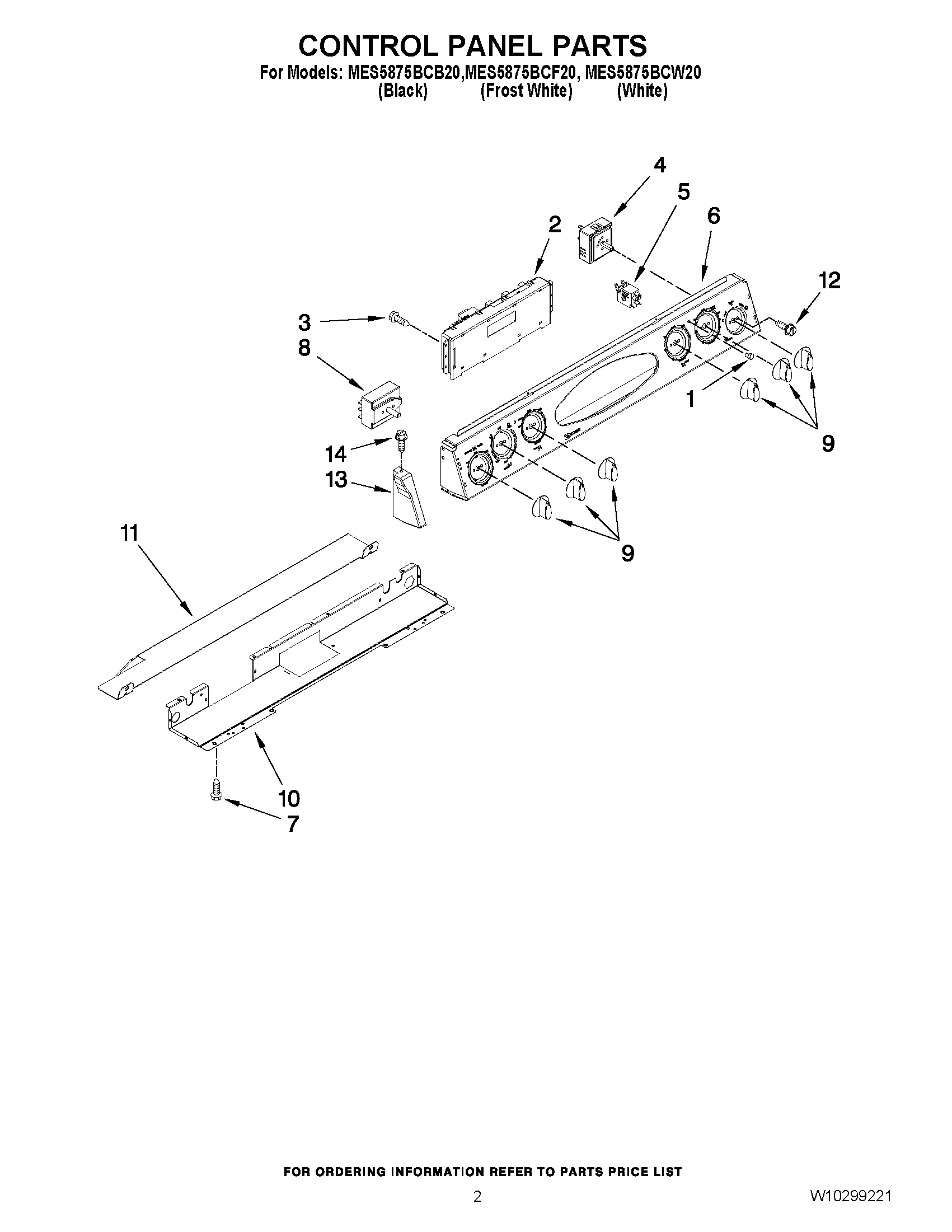

MES5875BCW20 02 – CONTROL PANEL PARTSadmin2025-04-26T08:55:11+00:00MES5875BCW20 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| NI | MAY 7450P070-60 |
| NI | MAY 7450P069-60 |
| 1 | WP7730P011-60 Whirlpool Indicator Lens |
| 2 | MAY 5701M885-60 |
| 2 | MAY 5701M884-60 |
| 3 | WP59002061 Whirlpool Microwave Screw |
| 4 | MAY 7450P024-60 |
| 4 | MAY 7403P992-60 |
| 4 | SWITCH, INFINITE (LR,RR (2)) |
| 4 | SWITCH, INFINITE (LEFT FRONT) |
| 4 | SWITCH, INFINITE (LEFT REAR & RIGHT REAR) |
| 5 | MAY 7407P136-60 |
| 6 | MAY 2614D131-09 |
| 6 | MAY 2614D131-81 |
| 7 | MAY 7101P426- 60 |
| 8 | WP7403P255-60 Whirlpool Selector Switch |
| 9 | MAY 7737P238-60 |
| 9 | MAY 7737P235-60 |
| 10 | MAY 3807F729-51 |
| 11 | MAY 3604F421-51 |
| 12 | SCREW |
| 13 | TRIM, END CAP (WHITE, RIGHT) |
| 13 | TRIM, END CAP (WHITE, LEFT) |
| 13 | CAP, END (RIGHT) (BLACK) |
| 13 | CAP, END (LEFT) (BLACK) |
| 14 | Screw (2) (Black) |
