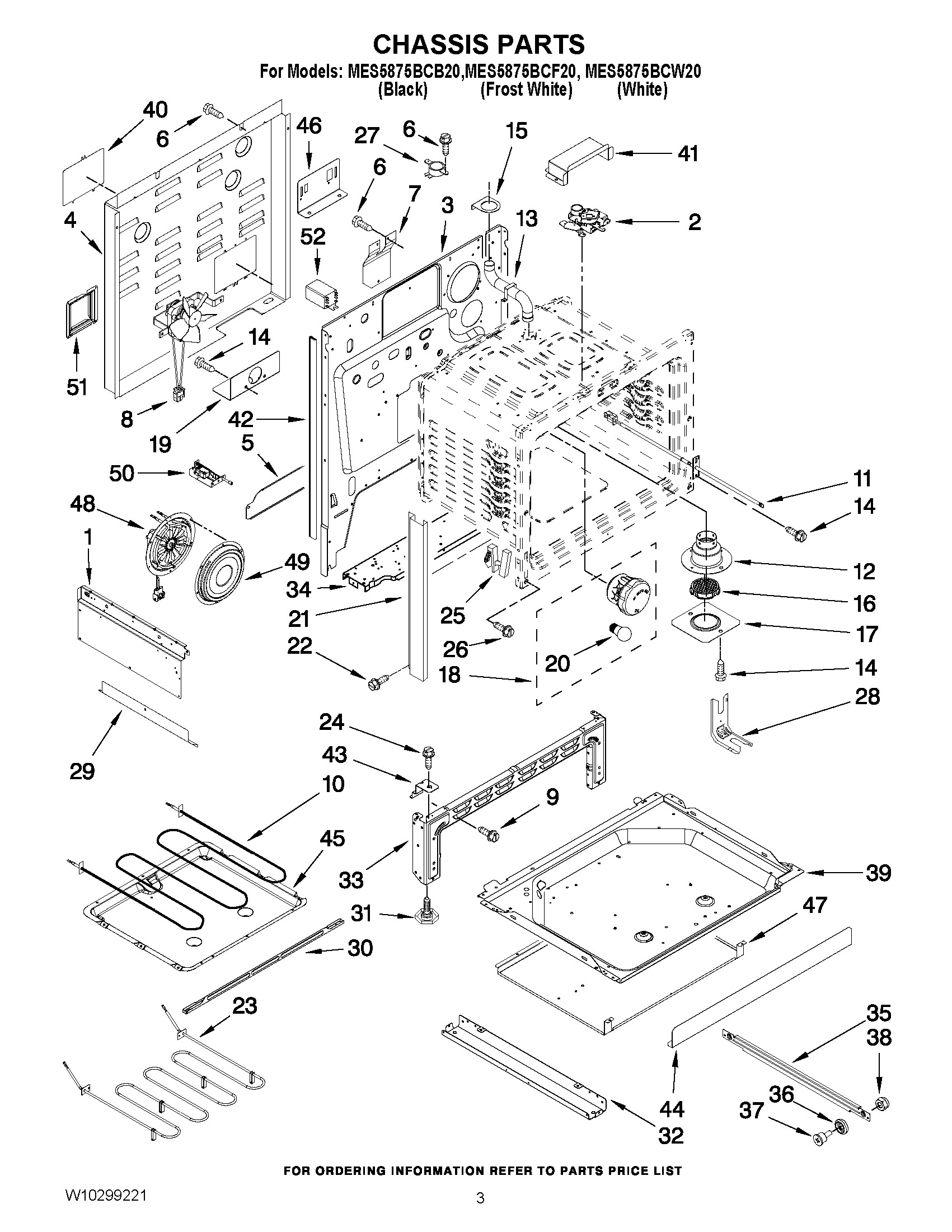

MES5875BCW20 03 – CHASSIS PARTS

Products

Position	Product
NI	MAY 7002P445-60
NI	INSULATION, HIDDEN BAKE COVER
NI	MAY 7002P471-60
1	MAY 2618F201-51
1	MAY 2618F206-51
2	MAY 8002P098-60
3	BACK, MAIN
4	COVER, MAIN WIRE
5	MAY 3826F066-51
7	MAY 7003P101-60
8	MAY W10317679
10	MAY W10314687
11	MAY 7430P042-60
12	MAY 8026P096-60
13	MAY W10233479
14	MAY 7101P426- 60
15	MAY 3605F345-51
16	SCREEN, SMOKE ELM.
17	MAY 3605F354-45
18	MAY 7407P182-60
19	BRACKET, POWER SUPPLY
20	RANGE ONLY 40W 120V APPL BULB
21	MAY 3608F138-71
21	TRIM, SIDE (BLACK (2))
23	MAY W10314699
24	MAY 7101P434-60
25	MAY 7106P141-60
26	MAY 7101P336-60
27	SWITCH, HI-LIMIT
28	BRACKET, ANTI-TIP
29	MAY 3826F064-51
30	MAY 3807F494-45
31	LEG, LEVELING
32	MAY 4020W035-80
33	PEDESTAL, FRONT
34	SUPPORT
35	RUNNER, DRAWER (2)
36	MAY W10272883
37	MAY 7118P032-60
38	MAY 7103P190-60
39	MAY 3804F231-51
40	COVER, TERMINAL
41	COVER, DOOR LATCH
42	MAY 2205F060-19
43	SUPPORT, OVEN BTM.
44	MAY 4005F749-45
45	PAN, BAKE
47	SHIELD, WARM. DWR.
48	FAN, CONVECTION
49	COVER, CONV. FAN
50	MAY 7450P108-60
51	INSULATION
52	RELAY, AUXILARY
