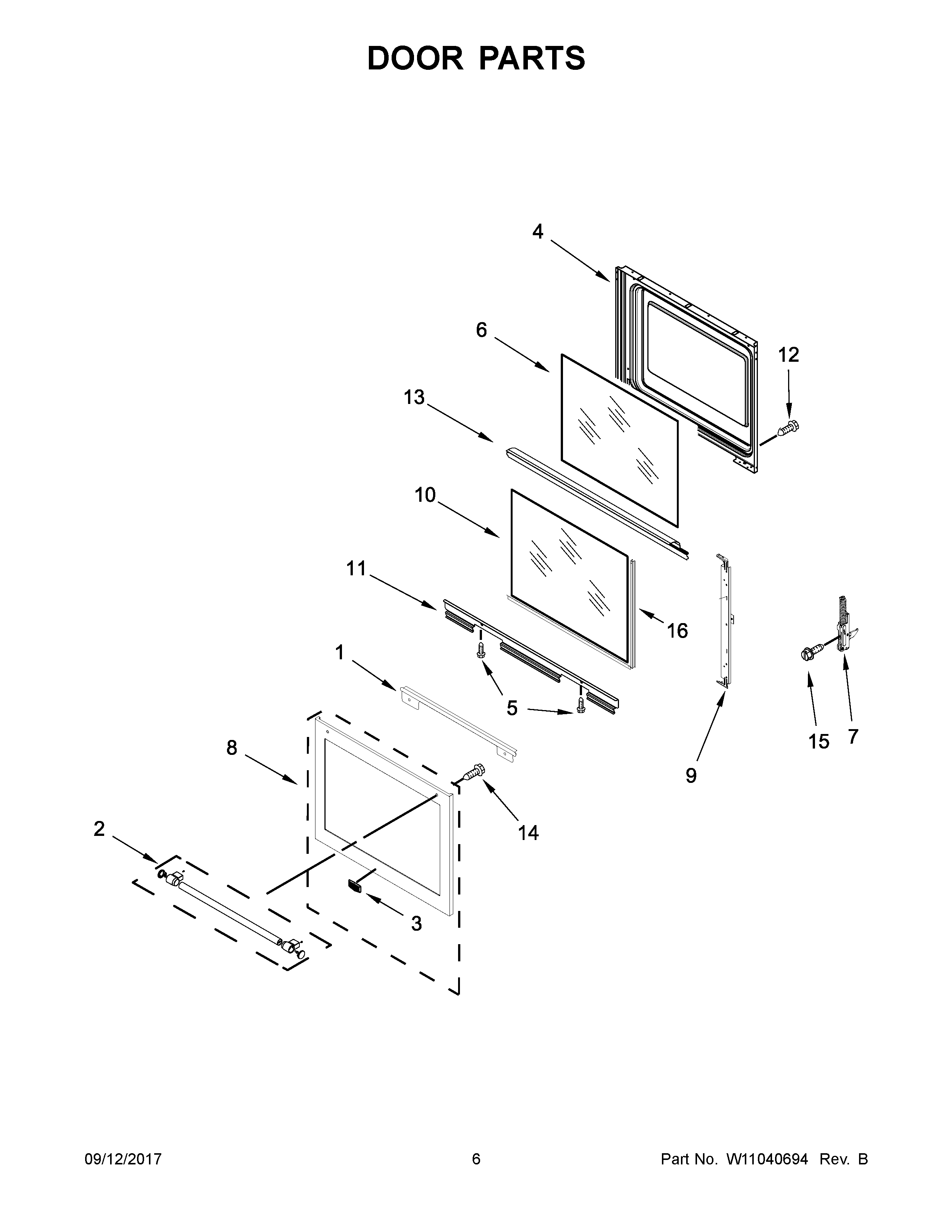

MES8800FZ0 04 – DOOR PARTS

Written by

Products

Position	Product
1	BRACKET, GLASS UPPER HANDLE
2	HANDLE, OVEN DOOR (STAINLESS)
3	BADGE
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	HINGE, DOOR (ACTIVE)
8	ASSEMBLY, DOOR SKIN (STAINLESS)
9	RAIL, VERTICAL SUPPORT
10	GLASS, OUTER (STAINLESS)
11	RAIL, HORIZONTAL SUPPORT
12	MAY W10031780
13	SCOOP, DOOR (BLACK)
14	SCREW
15	SCREW
16	SPACER, GLASS
