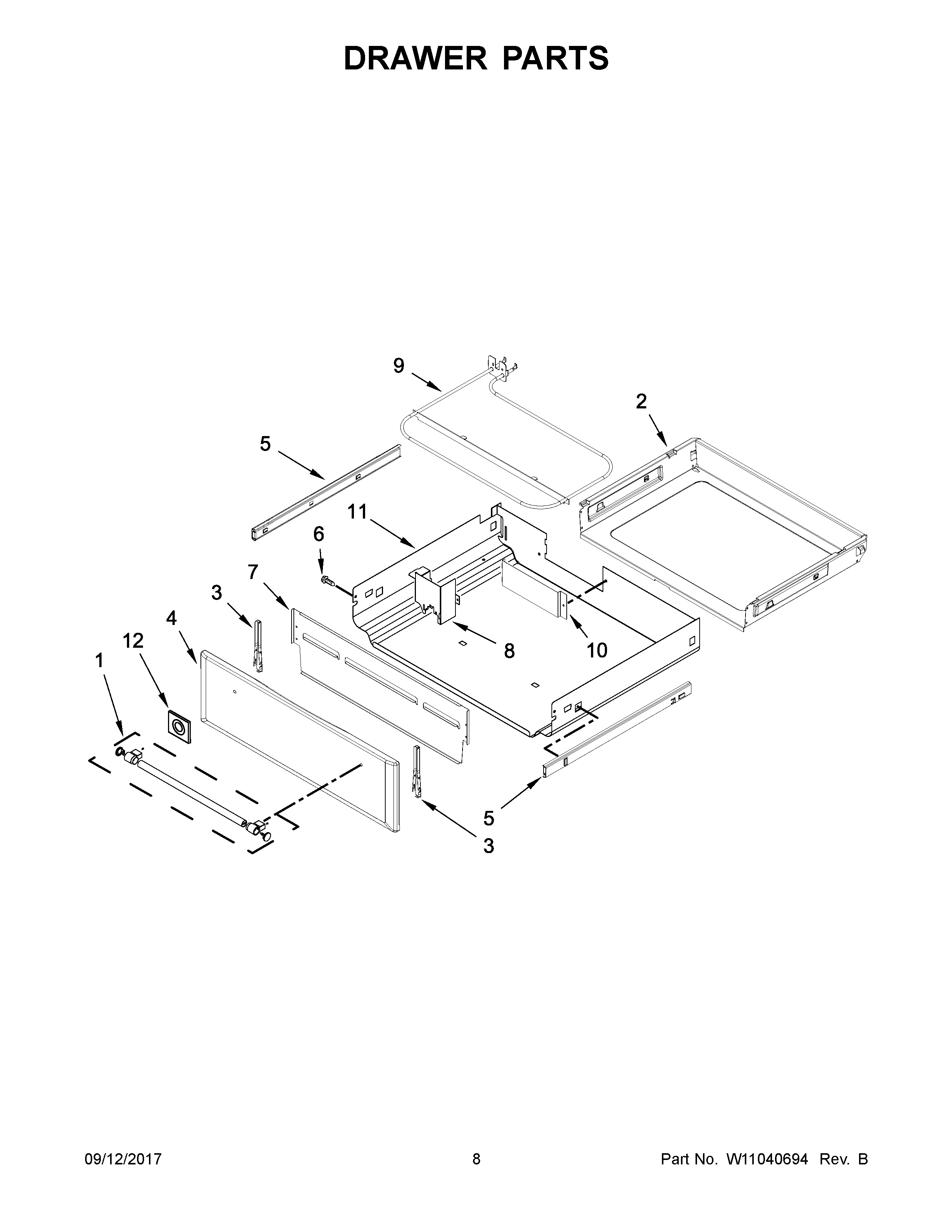

MES8800FZ0 05 – DRAWER PARTS

Written by

Products

Position	Product
1	HANDLE, OVEN DOOR (STAINLESS)
2	DRAWER, STORAGE
3	BRACKET, MOUNTING
4	PANEL, DRAWER FRONT (STAINLESS)
5	MAY W10441804
5A	MAY W10441805
6	SCREW
7	PANEL, INNER
8	MAY W10634259
9	ELEMENT, WARM
10	COVER, GAS VALVE
11	MAY W10634260
12	MAY 3823F017-45
