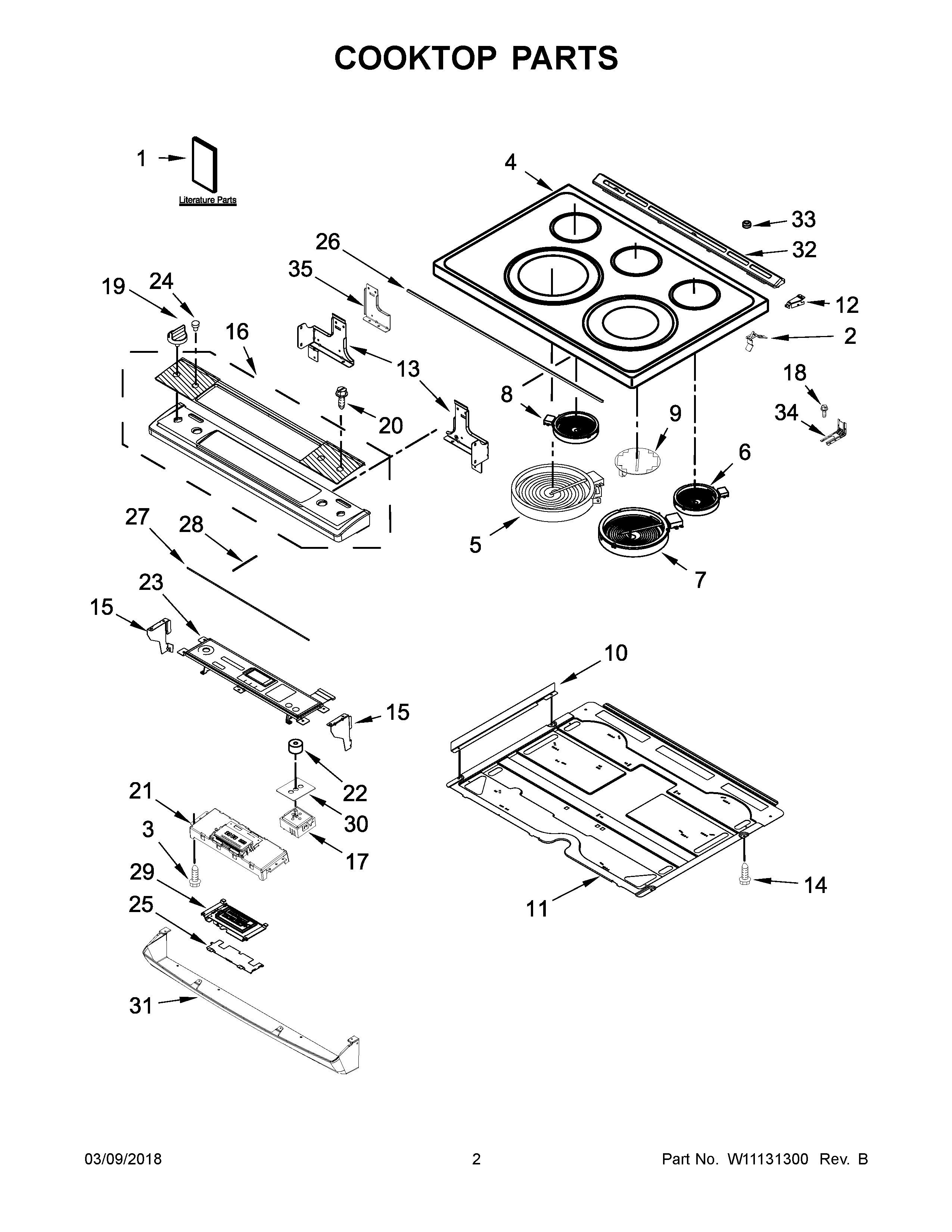

MES8800FZ1 02 – COOKTOP PARTS

Products

Position	Product
NI	MAY W10580265
NI	MAY W10664316
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10580298
NI	MAY W10575120
NI	MAY W10598170
NI	MAY W10908778
NI	MAY W10580243
1A	GUIDE, USE & CARE
1B	SHEET, TECH
1D	MAY W10400065
1	INSTRUCTIONS, INSTALLATION
1C	MAY W10400064
1E	DIAGRAM, WIRING
2	SPRING, ELEMENT
3	SCREW
4	COOKTOP (BLACK)
5	ELEMENT, SURFACE (2500/1200W (RF))
6	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
7	ELEMENT (3200W) (RIGHT FRONT)
8	ELEMENT, SURFACE (700W) (RIGHT REAR)
9	ELEMENT, WARM ZONE (CENTER)
10	MAY W10613286
11	MAY W10536275
12	BRACE, CORNER (LEFT)
12A	BRACE, CORNER (RIGHT)
13A	SUPPORT, COOKTOP (RIGHT)
13	SUPPORT, COOKTOP (LEFT)
14	SCREW
15	BRACKET, CONSOLE (LEFT)
15A	BRACKET, CONSOLE (RIGHT)
16	ASSEMBLY, CONSOLE (STAINLESS)
17	SWITCH, INFINITE (DUAL) (LEFT FRONT)
17B	SWITCH, INFINITE (RIGHT FRONT)
17C	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
17A	SWITCH, INFINITE (RIGHT FRONT)
18	SCREW, ANTI-TIP KIT
19	KNOB (STAINLESS)
20	SCREW
21	CONTROL, ELECTRONIC (MRC2)
22	MAY W10702912
23	ASSEMBLY, OVERLAY (STAINLESS)
24	MAY 3196068
25	BRACKET, CONTROL
26	GASKET, CONSOLE/COOKTOP
27	GASKET, CONSOLE
28	GASKET, CONSOLE SHORT
29	ASSEMBLY, DISPLAY
30	GASKET, INFINITE SWITCH
31	PANEL, LOWER CONSOLE (BLACK)
32	MAY W10636528
33	BUMPER
34	BRACKET, ANTI-TIP
35	BRACKET, CONSOLE (CE
