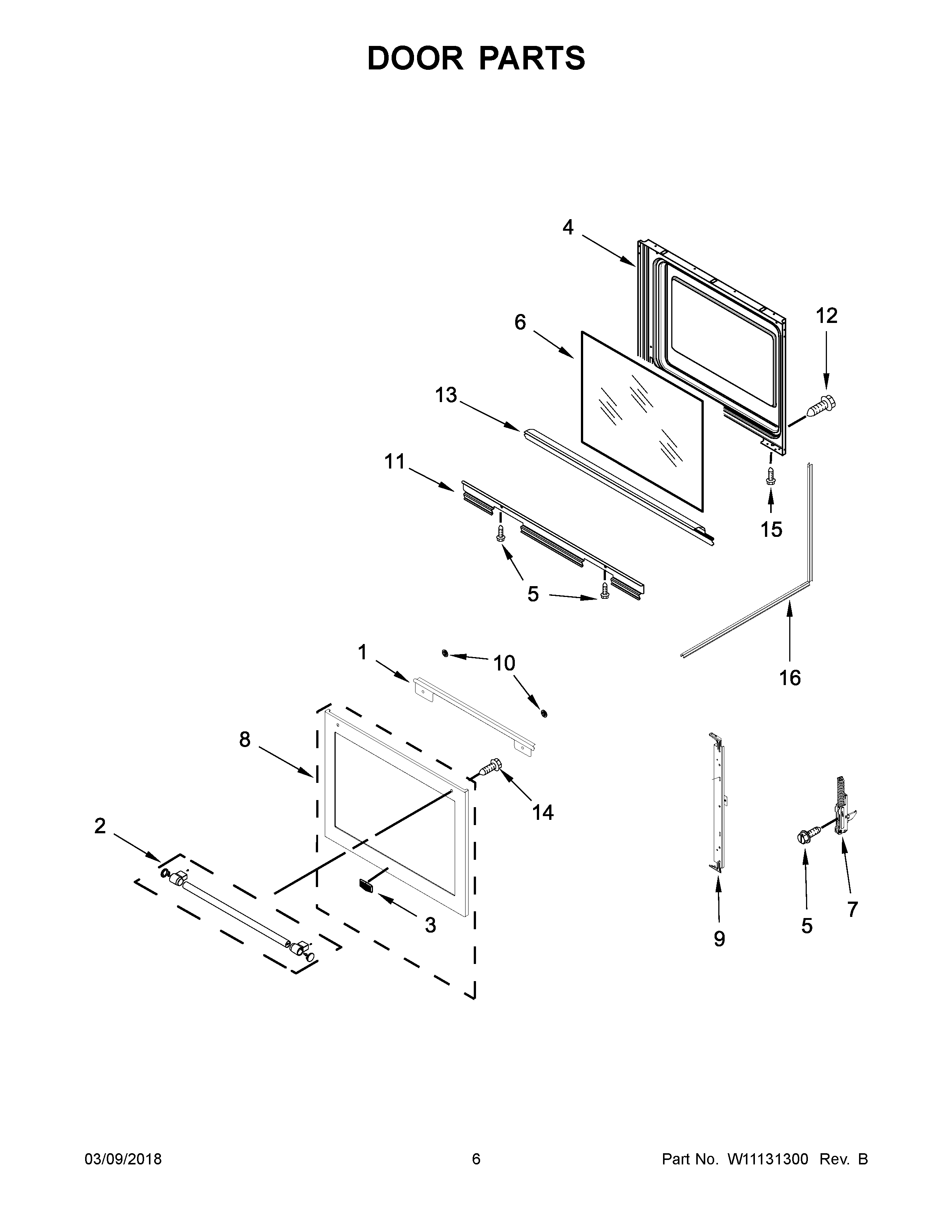

MES8800FZ1 04 – DOOR PARTSadmin2025-04-26T08:54:37+00:00MES8800FZ1 04 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | BRACKET, GLASS UPPER HANDLE |
| 2 | HANDLE, OVEN DOOR (STAINLESS) |
| 3 | BADGE |
| 4 | LINER, DOOR |
| 5 | SCREW |
| 6 | GLASS, INNER |
| 7 | HINGE, DOOR (ACTIVE) |
| 8 | ASSEMBLY, DOOR SKIN (STAINLESS) |
| 9 | RAIL, VERTICAL SUPPORT |
| 10 | WASHER, DOOR |
| 11 | RAIL, HORIZONTAL SUPPORT |
| 12 | MAY W10031780 |
| 13 | SCOOP, DOOR (BLACK) |
| 14 | SCREW |
| 15 | SCREW |
| 16 | SPACER, GLASS |
