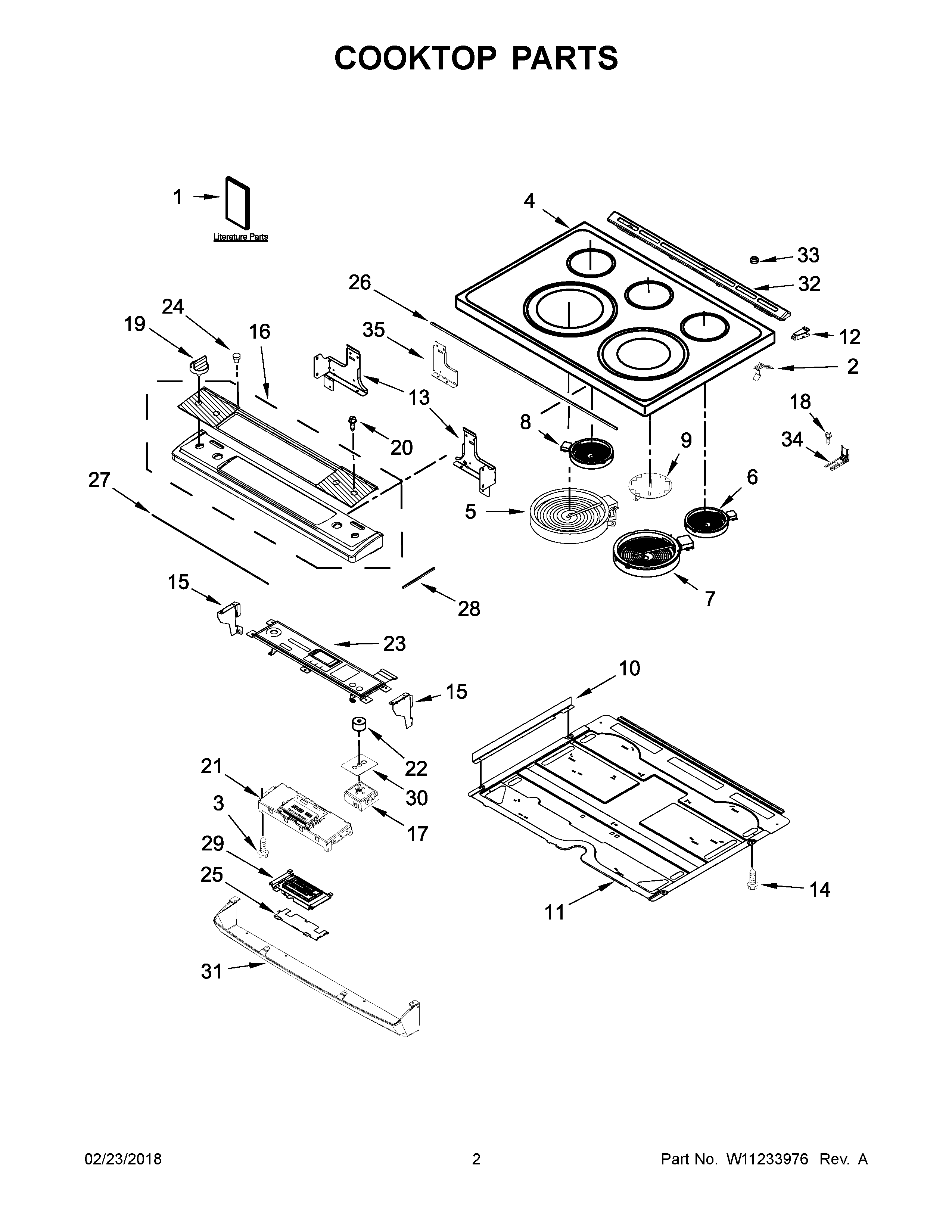

MES8800FZ2 02 – COOKTOP PARTS

MES8800FZ2 02 – COOKTOP PARTS

Written by

in

MES8800FZ2 02 – COOKTOP PARTS

Products

PositionProduct
NIMAY W11207139
NIMAY W11172426
NIMAY W11207143
NILINER (NOT A SERVICEABLE PART)
NIMAY W10664316
NIMAY W11188430
NIMAY W10575120
NIMAY W11188439
1AGUIDE, USE & CARE
1EDIAGRAM, WIRING
1DMAY W10400065
1INSTRUCTIONS, INSTALLATION
1CMAY W10400064
1BSHEET, TECH
2SPRING, ELEMENT
3SCREW
4COOKTOP (BLACK)
5ELEMENT, SURFACE (2500/1200W (RF))
6ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
7ELEMENT (3200W) (RIGHT FRONT)
8ELEMENT, SURFACE (700W) (RIGHT REAR)
9ELEMENT, WARM ZONE (CENTER)
10MAY W10613286
11MAY W10536275
12BRACE, CORNER (LEFT)
12ABRACE, CORNER (RIGHT)
13ASUPPORT, COOKTOP (RIGHT)
13SUPPORT, COOKTOP (LEFT)
14SCREW
15BRACKET, CONSOLE (LEFT)
15ABRACKET, CONSOLE (RIGHT)
16ASSEMBLY, CONSOLE (STAINLESS)
17SWITCH, INFINITE (DUAL) (LEFT FRONT)
17ASWITCH, INFINITE (RIGHT FRONT)
17CSWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
17BSWITCH, INFINITE (RIGHT FRONT)
18SCREW, ANTI-TIP KIT
19KNOB (STAINLESS)
20SCREW
21CONTROL, ELECTRONIC (MRC2)
22MAY W10702912
23ASSEMBLY, OVERLAY (STAINLESS)
24MAY 3196068
25BRACKET, CONTROL
26GASKET, CONSOLE/COOKTOP
27GASKET, CONSOLE
28GASKET, CONSOLE SHORT
29ASSEMBLY, DISPLAY
30GASKET, INFINITE SWITCH
31PANEL, LOWER CONSOLE (BLACK)
32MAY W10636528
33BUMPER
34BRACKET, ANTI-TIP
35BRACKET, CONSOLE (CE
