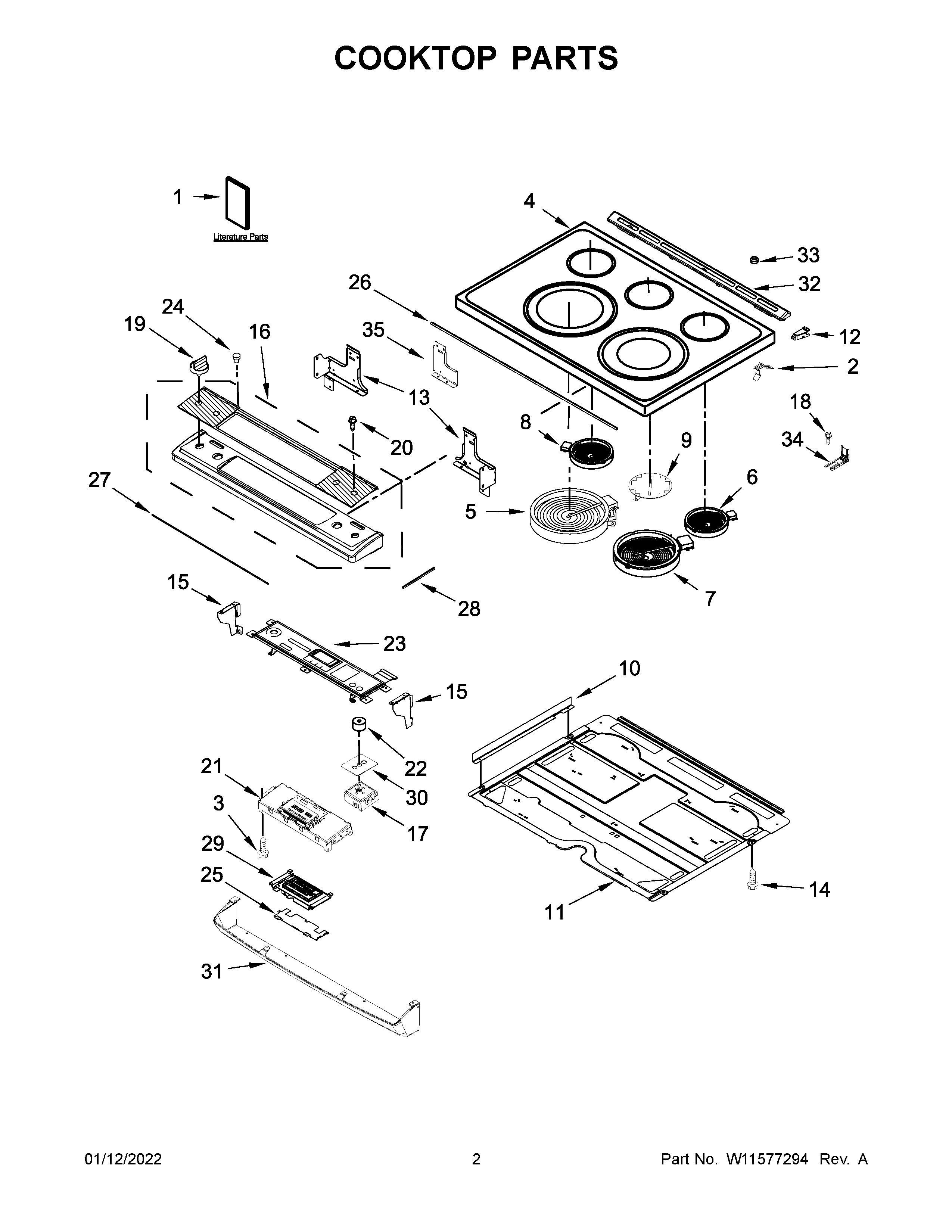

MES8800FZ3 02 – COOKTOP PARTS

Products

Position	Product
NI	W11025616 Whirlpool Wire Harness
NI	WPL W11454509
NI	W11226772 Whirlpool Wire Harness
NI	W11207143 Whirlpool Wire Harness
NI	W10664316 Whirlpool Clip
NI	W11207139 Whirlpool Wire Harness
NI	WPL W11188430
NI	CABINET (NOT A SERVICEABLE PART)
1	QUICK START GUIDE
1A	TECH SHEET
1B	OWNERS MANUAL
2	WPW10225448 Whirlpool Spring Assembly
3	SCREW
4	W10751487 Whirlpool Cooktop Assembly
5	ELMNT-SURF
6	ELMNT-SURF
7	WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
8	WPW10270604 Whirlpool Surface Element
9	W11041453 Whirlpool Surface Element
10	BRACKET, RADIANT
11	W10536275 Whirlpool Pan
12A	W10162252 Whirlpool Bracket Mounting
12	W10162253 Whirlpool Mounting Bracket
13A	W10289169 Whirlpool Bracket Support
13	W10289170 Whirlpool Support Bracket
14	W11244557 Whirlpool Screw
15A	W10547961 Whirlpool Endcap Panel
15	W10547960 Whirlpool Endcap Panel
16	W11203729 Whirlpool Control Panel
17A	WPW10295048 Whirlpool Range Switch, Infinite (Left Rear)
17B	W10917724 Whirlpool Infinite Switch
17C	W10911303 Whirlpool Infinite Switch
17	SWITCH-INF
18	SCREW, ANTI-TIP KIT
19	W10876614 Whirlpool Knob
20	W11245710 Whirlpool Refrigerator Screw
21	W11050555 Whirlpool Electronic Control Board + Core
22	W10702912 Whirlpool Switch Gasket
23	W11040816 Whirlpool Membrane Switch
24	WP3196068 Whirlpool Light Lens
25	W10558372 Whirlpool Bracket Mounting
26	W10802441 Whirlpool Gasket
27	W10802457 Whirlpool Gasket
28	W11744482 Whirlpool Gasket Assembly
29	W11122852 Whirlpool Electronic Control Board + Core
30	GASKET, SWITCH
31	W11218703 Whirlpool Mounting Bracket
32	W11240519 Whirlpool Vent Trim
33	W11104127 Whirlpool Bumper Assembly
34	W11502257 Whirlpool Anchor Tip
35	W10598048 Whirlpool Support Bracket
