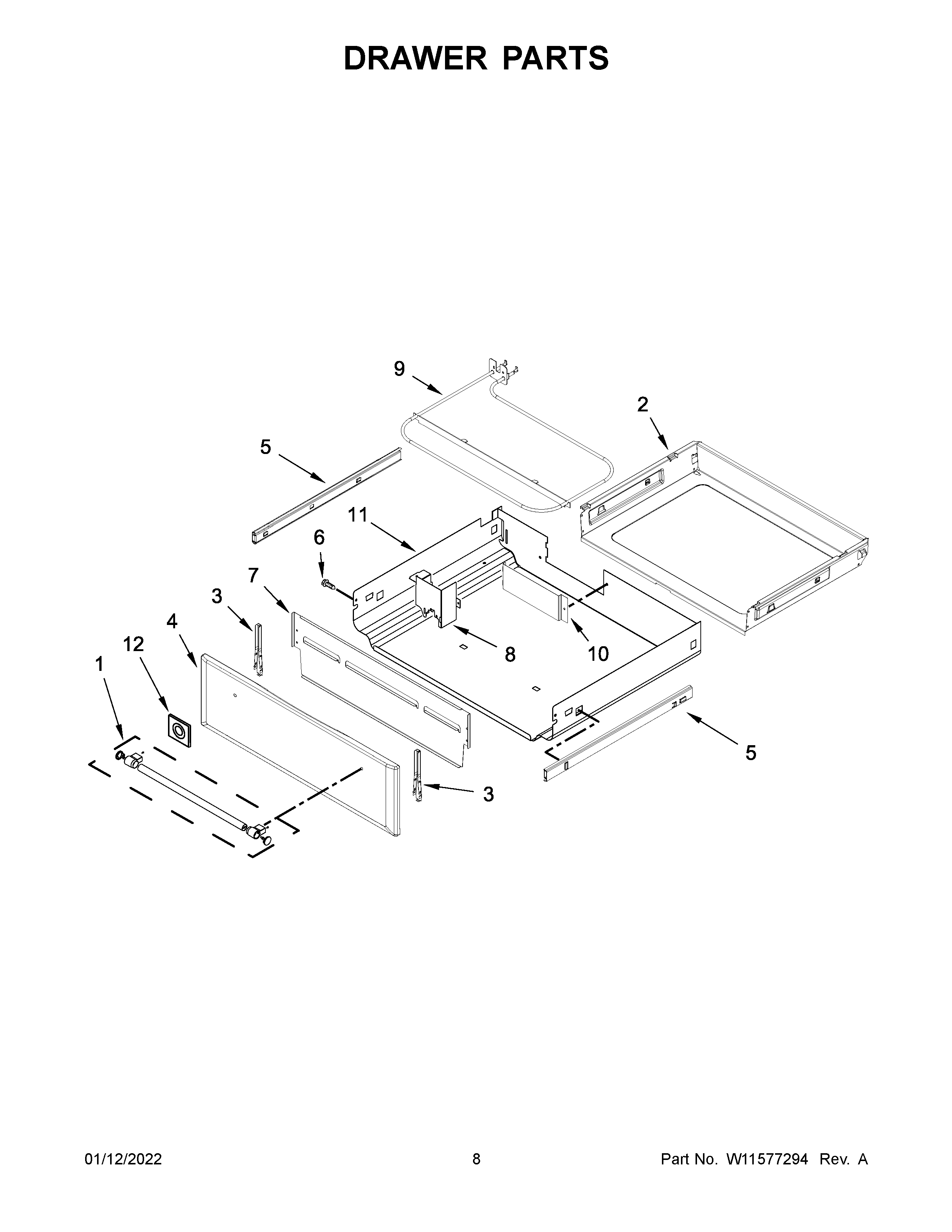

MES8800FZ3 05 – DRAWER PARTS

MES8800FZ3 05 – DRAWER PARTS

Written by

in

MES8800FZ3 05 – DRAWER PARTS

Products

PositionProduct
1W10912640 Whirlpool Door Handle
2W10813962 Whirlpool Utility Drawer
3WPW10318026 Whirlpool Mounting Bracket
4W11049639 Whirlpool Drawer Panel
5AWPW10441805 Whirlpool Slide Drawer
5WPW10441804 Whirlpool Drawer Slide
6WP8533988 Whirlpool Screw Fastener
7W10748082 Whirlpool Drawer Panel
8W10634259 Whirlpool Wire Cover
9WPW10323181 Whirlpool Surface Element
10COVER, GAS VALVE
11W10634260 Whirlpool Utility Drawer
12SPACER, HANDLE
