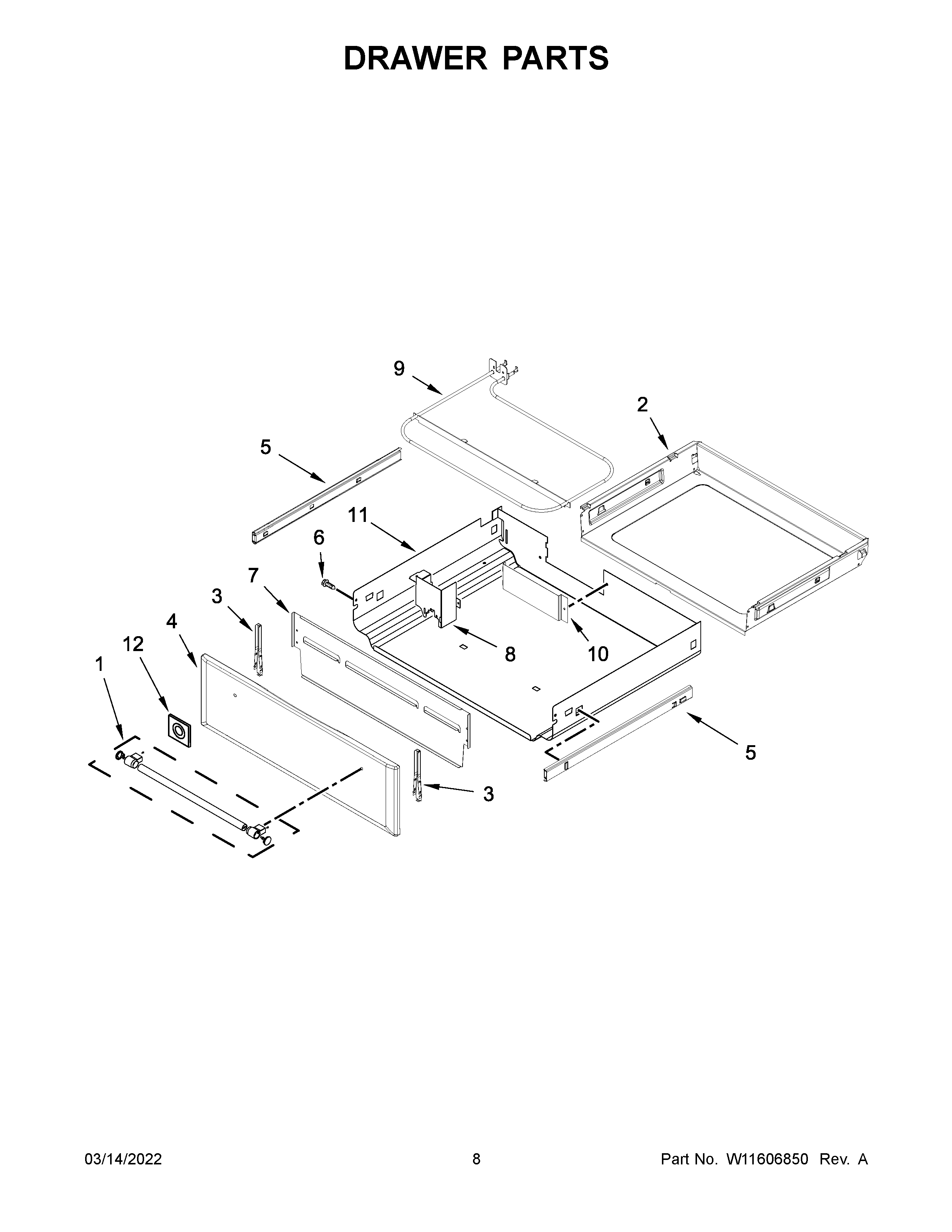

MES8800FZ5 05 – DRAWER PARTS

Products

Position	Product
1	W10912640 Whirlpool Door Handle
2	W10813962 Whirlpool Utility Drawer
3	WPW10318026 Whirlpool Mounting Bracket
4	W11049639 Whirlpool Drawer Panel
5A	WPW10441805 Whirlpool Slide Drawer
5	WPW10441804 Whirlpool Drawer Slide
6	WP8533988 Whirlpool Screw Fastener
7	W10748082 Whirlpool Drawer Panel
8	W10634259 Whirlpool Wire Cover
9	WPW10323181 Whirlpool Surface Element
10	COVER, GAS VALVE
11	W10634260 Whirlpool Utility Drawer
12	SPACER, HANDLE
