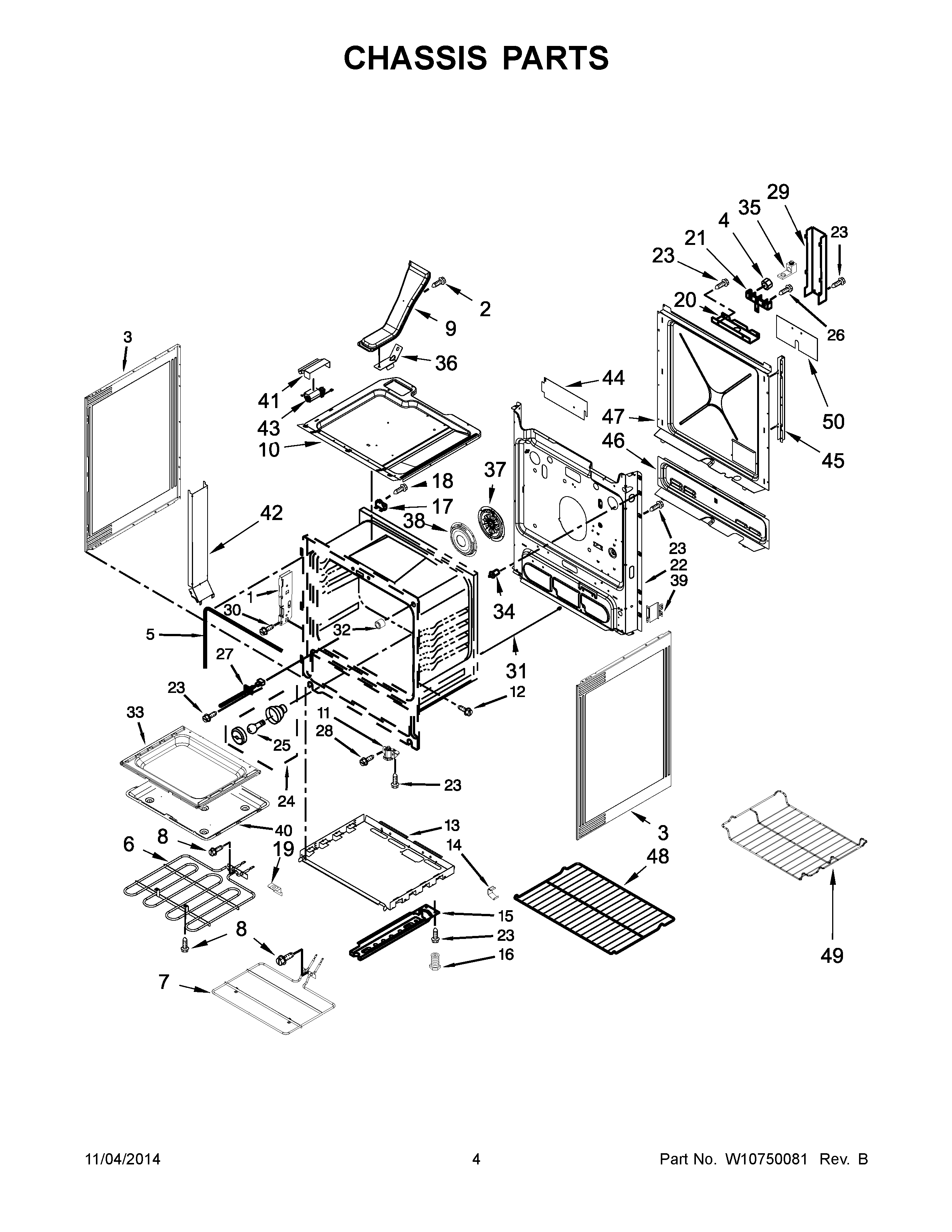

MES8880DE0 03 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, BOTTOM
NI	LINER (NOT A SERVICEABLE PART)
NI	STRAP, INSULATION
NI	INSULATION, BACK
NI	INSULATION, WRAP
NI	MAY 7111P017-60
NI	CLIP, WIRE
1	RECEIVER, HINGE
2	SCREW
3A	PANEL, SIDE (WHITE)
3	PANEL, SIDE (BLACK)
4	WP7103P027-60 Whirlpool Nut
5	MAY W10162385
6	ELEMENT, BROIL
7	ELEMENT, BAKE 3600W
8	MAY W10362924
9	ASSEMBLY, FLUE
10	BOX, BURNER SI
11	ASSEMBLY, FRONT FOOT
12	SCREW
13	SHIELD, BAKE
14	CLIP, PANEL
15A	ASSEMBLY, BASE RAIL (RIGHT)
15	ASSEMBLY, BASE RAIL (LEFT)
16	FOOT, LEVELING
17	FUSE, THERMAL
18	SCREW
19	MAY W10035900
20	BRACKET, SERVICE
21	BLOCK, TERMINAL
22	BACK, MAIN
23	SCREW
24	ASSEMBLY, LIGHT
25	BULB, OVEN LIGHT
26	SCREW
27	MAY W10586204
28	SCREW
29	COVER, TERMINAL BLOCK
30	MAY W10031780
31	ROD, REAR DOOR
32	SPACER, DOOR
33	MAY W10289079
34	SWITCH, DOOR
35	KIT, BARE WIRE ADAPTER BLOCK
36	MAY W10603623
37	MAY W10617484
38	MAY W10346154
39	BRACKET, SUPPORT
40	MAY W10346147
41	DUCT, COVER
42	DUCT, COOLING
43	MAY W10162259
44	MAY W10655485
45	MAY W10162241
46	MAY W10162248
47	MAY W10289172
48	MAY W10531060
49	ACCESSORIES, RACK, OVEN (GULL-WING)
50	MAY W10655441
