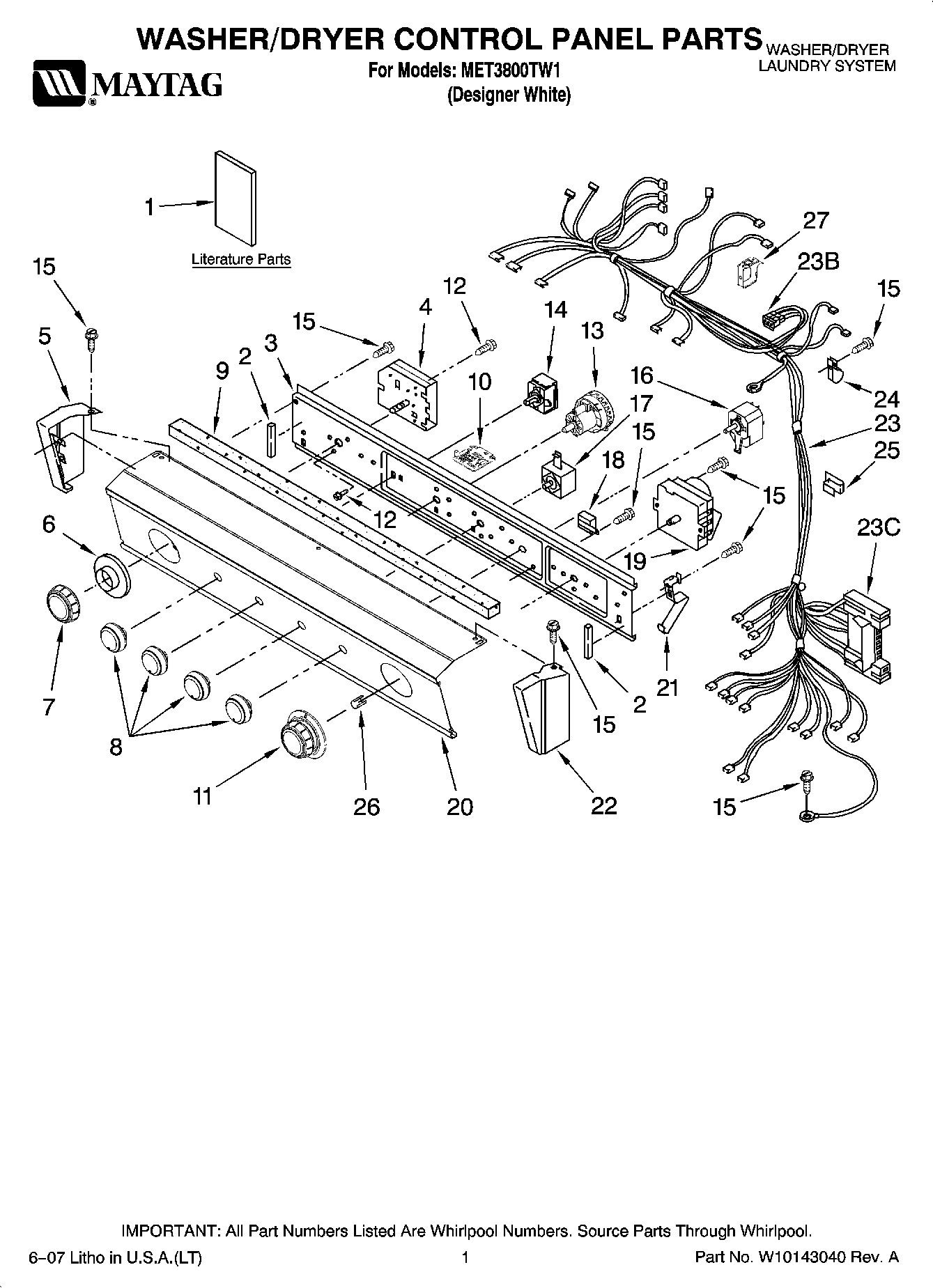

MET3800TW1 01 – WASHER/DRYER CONTROL PANEL PARTS

MET3800TW1 01 – WASHER/DRYER CONTROL PANEL PARTS

Written by

in

MET3800TW1 01 – WASHER/DRYER CONTROL PANEL PARTS

Products

PositionProduct
1MAY W10118320
1MAY W10114285
1MAY W10118289
1MAY W10117755
1MAY W10117754
2MAY 3390688
3MAY 8528583
4MAY W10124193
5End Cap (LH)
6Dial, (Washer)
7Knob, Timer (Washer)
8Knob, Control (4)
9MAY 8521965
10MAY 8558178
11Knob, Timer (Dryer)
12Screw, 10-32 x 5/16
13MAY W10112533
14MAY W10114118
15SCREW,8-18 X 3/8
16MAY W10117655
17MAY 3405156
18MAY 694419
19MAY W10113816
20MAY W10124093
21MAY 3389453
22End Cap (RH)
23BMAY 2154470
23MAY W10139465
23CCONNECTOR (MOTOR)
24MAY 3390604
25MAY 3390422
26CLIP, SPRING
27MAY W10134185
