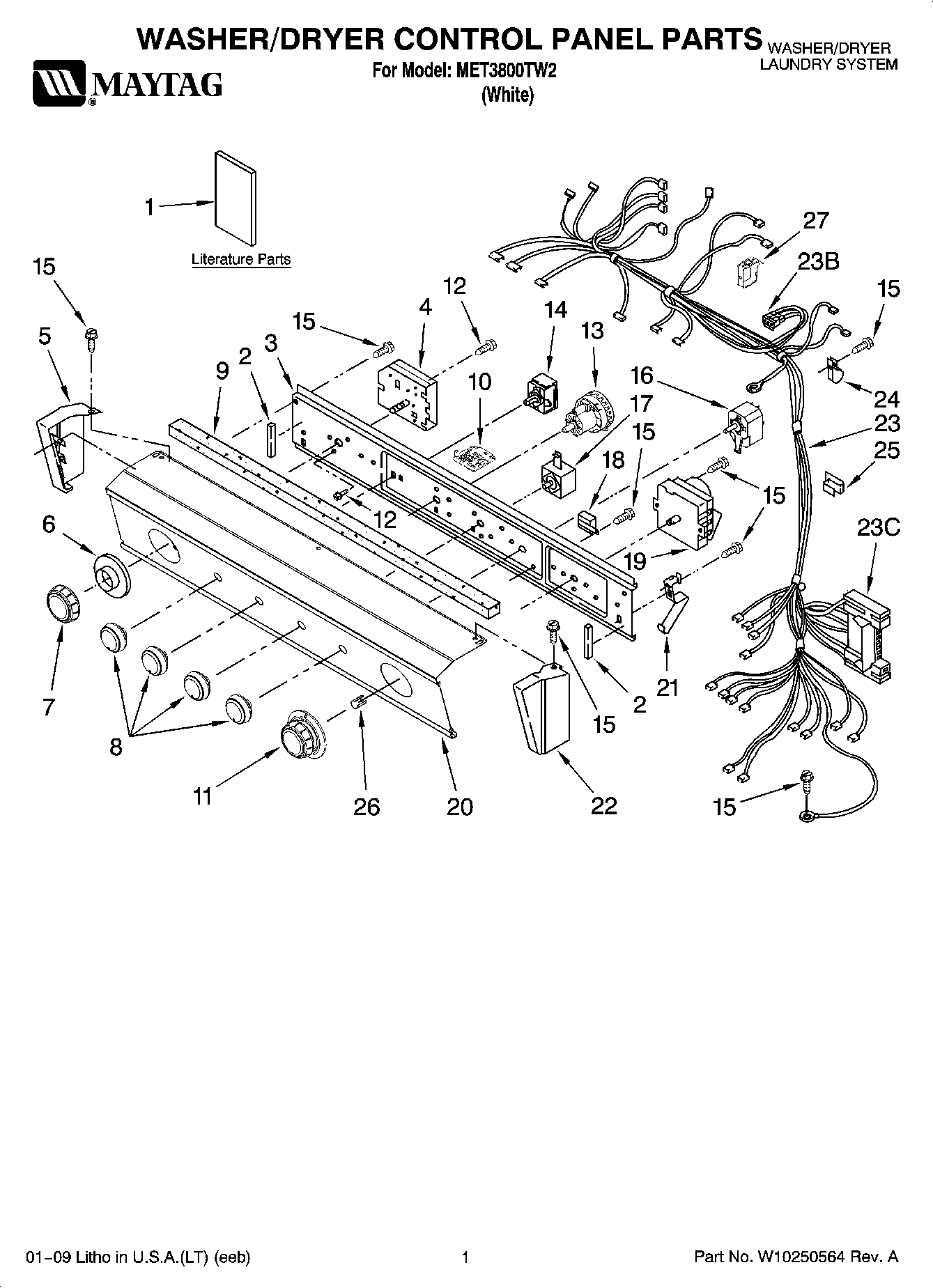

MET3800TW2 01 – WASHER/DRYER CONTROL PANEL PARTS

MET3800TW2 01 – WASHER/DRYER CONTROL PANEL PARTS

Written by

in

MET3800TW2 01 – WASHER/DRYER CONTROL PANEL PARTS

Products

Position	Product
1	MAY W10196552
1	MAY W10222378
1	MAY W10114285
1	MAY W10117755
2	MAY 3390688
3	MAY 8528583
4	MAY W10124193
5	End Cap (LH)
6	Dial, (Washer)
7	Knob, Timer (Washer)
8	Knob, Control (3)
9	MAY 8521965
10	MAY 8558178
11	Knob, Timer
12	Screw, 10-32 x 5/16
13	MAY W10112533
14	MAY W10114118
15	SCREW,8-18 X 3/8
16	MAY W10117655
17	MAY 3405156
18	MAY 694419
19	MAY W10113816
20	MAY W10124093
21	MAY 3389453
22	End Cap (RH)
23B	MAY 2154470
23	MAY W10139465
23C	CONNECTOR (MOTOR)
24	MAY 3390604
25	MAY 3390422
26	CLIP, SPRING
27	Clip, Harness (2)
