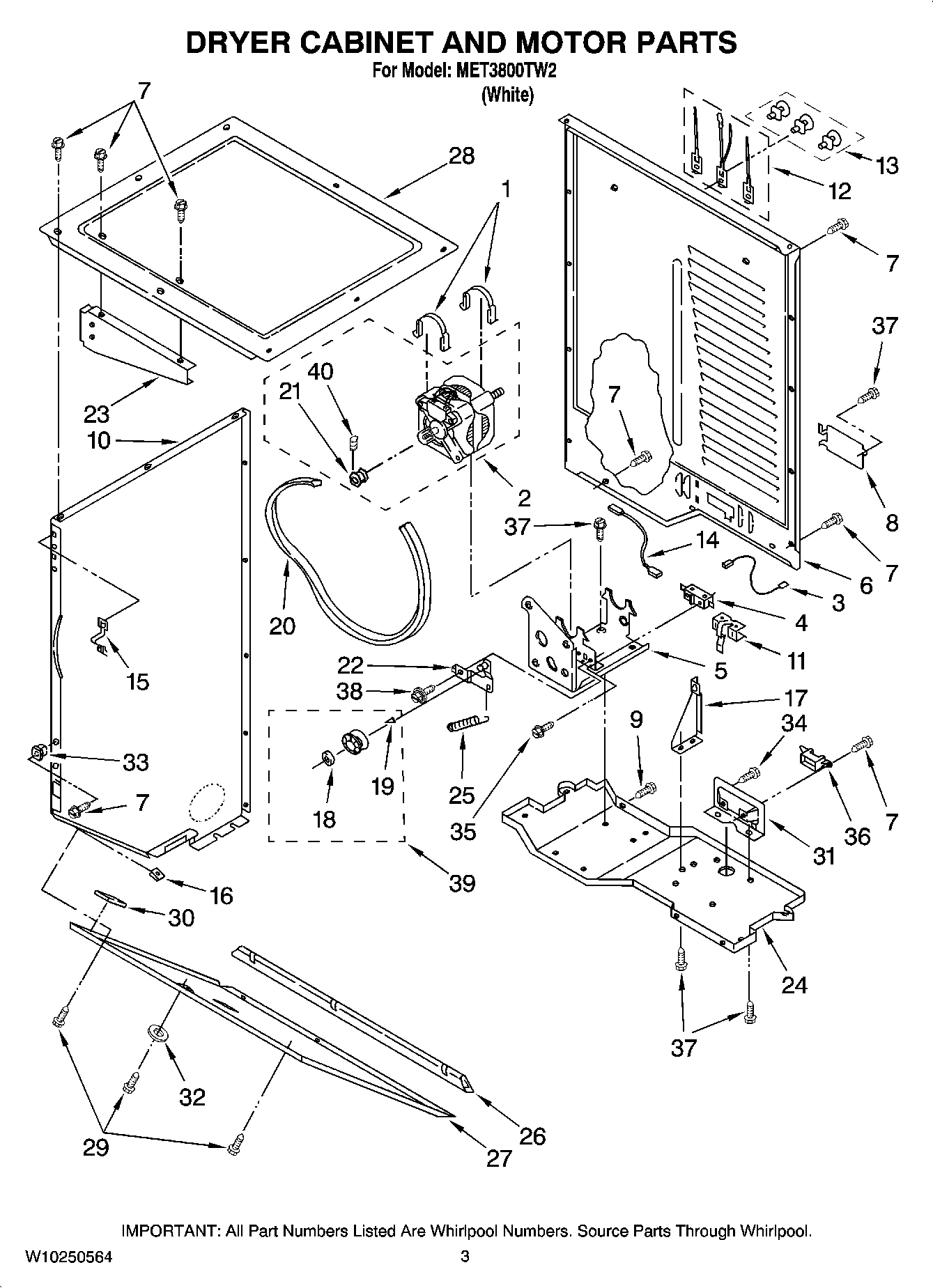

MET3800TW2 03 – DRYER CABINET AND MOTOR PARTS

Products

Position	Product
1	CLAMP, MOTOR MOUNT
2	MAY 8538266
3	Wire, Jumper (Broken Belt Switch)
4	MAY 3394881
5	MAY 3388858
6	MAY 3389847
7	SCREW
8	MAY 3387673
9	MAY 8533974
10	MAY 3389256
10	MAY 3389264
11	MAY 8066120
12	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
13	MAY 279393
14	MAY W10167612
15	MAY 3389231
16	Clip, Ground
17	MAY 3391639
18	WASHER, TRI RING
19	MAY W10121334
20	MAY 3387610
21	MAY 3391087
22	MAY 3389332
23	MAY 3390722
24	MAY 3390026
25	MAY 3387374
26	MAY 3389683
27	MAY 3389272
28	MAY 3389537
29	Screw & Washer
30	MAY 3389682
31	MAY 3393722
32	MAY 3389431
33	Nut, Push-In
34	MAY 3387485
35	Screw, 6-20 x 1-1/16
36	MAY 3397659
37	SCREW
38	SCREW
39	ASSEMBLY, PULLEY
40	MAY 3394743
