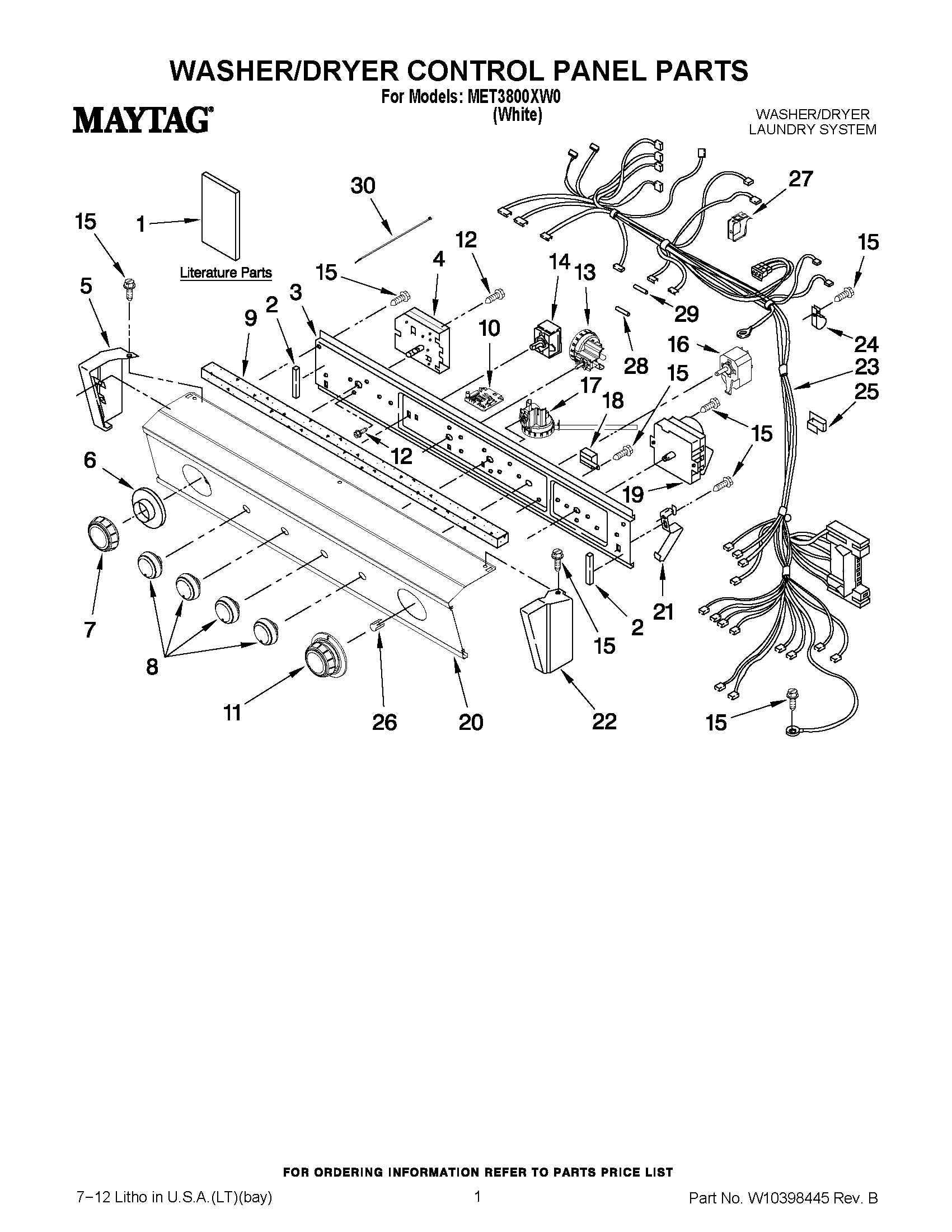

MET3800XW0 01 – WASHER/DRYER CONTROL PANEL PARTS

Products

Position	Product
1	MAY W10343072
1	MAY W10356098
1	MAY W10389459
1	MAY W10364011
2	MAY 3390688
3	MAY 8528583
4	MAY W10124193
5	End Cap (LH)
6	Dial, (Washer)
7	Knob, Timer (Washer)
8	Knob, Control (3)
9	MAY 8521965
10	MAY 8558178
11	Knob, Timer
12	Screw, 10-32 x 5/16
13	SWITCH, PRESSURE (3-LEVEL) (INCLUDES, 28 & 30 )
14	MAY W10114118
15	SCREW,8-18 X 3/8
16	MAY W10117655
17	SWITCH, PRESSURE (2-LEVEL) (INCLUDES NO. 29 )
18	MAY 694419
19	MAY W10113816
20	MAY W10339548
21	MAY 3389453
22	End Cap (RH)
23	MAY W10371542
24	MAY 3390604
25	MAY 3390422
26	CLIP, SPRING
27	Clip, Harness (2)
28	HOSE, PRESSURE SWITCH
29	MAY W10368080
30	TIE WIRE
