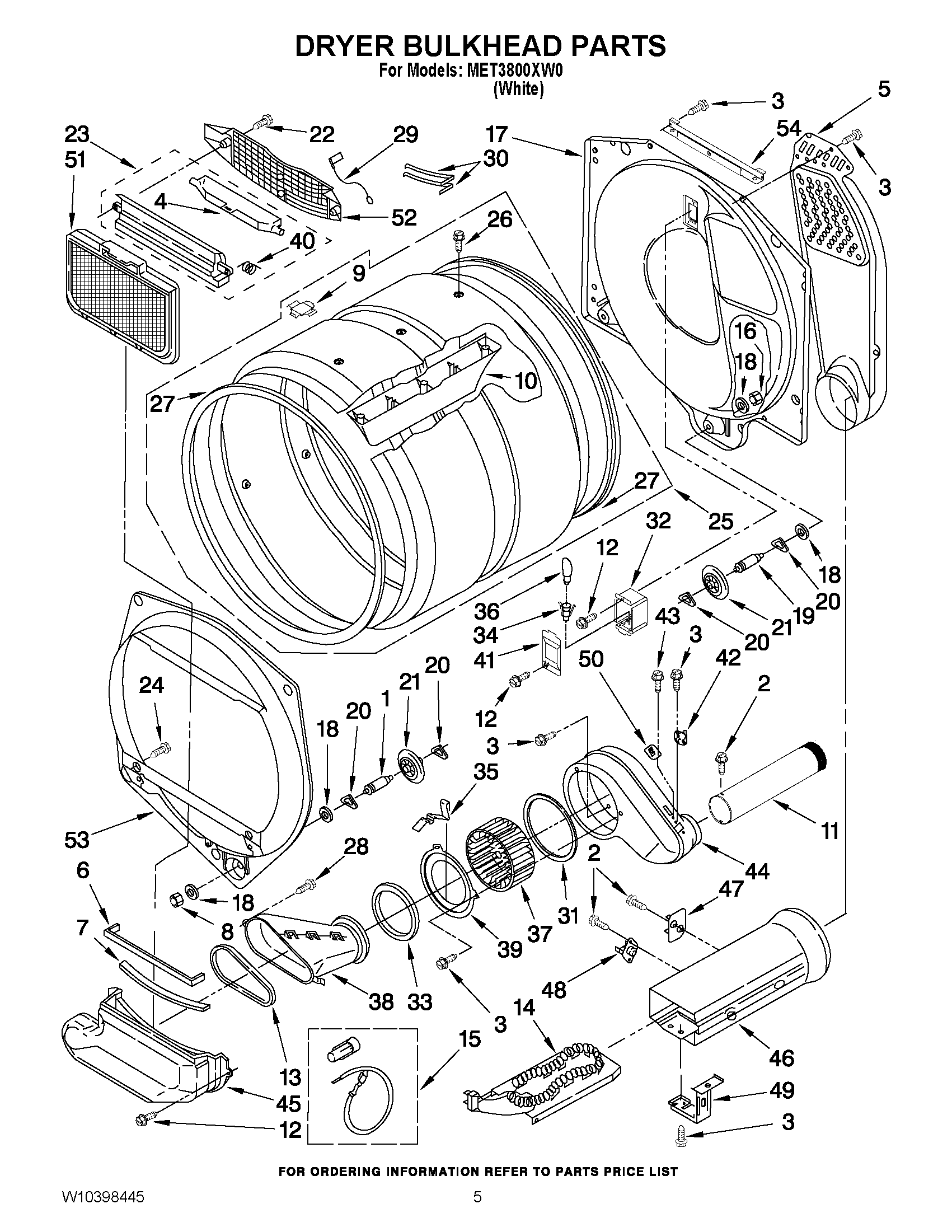

MET3800XW0 04 – DRYER BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	SCREW,8-18 X 3/8
3	SCREW
4	MAY 3394984
5	ASSEMBLY, AIR DUCT
6	MAY 697813
7	MAY 3391906
8	NUT, HEX
9	Plug, Drum Hole
10	MAY 3389449
11	PIPE, EXHAUST
12	SCREW
13	MAY 3391685
14	Element, Heater
15	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 8520836
18	WASHER
19	SHAFT, DRUM ROLLER – LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	SCREW
23	MAY 3394985
24	Screw, 8-18 x 1/2
25	MAY 3389448
26	MAY W10219342
27	MAY W10166807
28	SCREW
29	Wire
30	SENSOR, ELECTRODE
31	SEAL, PLATE COVER
32	MAY 3977373
33	MAY 8566209
34	MAY W10214261
35	MAY 3390935
36	MAY 3406124
37	MAY 697772
38	Duct, Transition (Includes Illus. No.33)
39	Plate, Blower
40	Spring, Lint Screen Door
41	MAY 3402841
42	MAY 3387134
43	Screw
44	MAY 8544363
45	Lint Duct Assembly (Includes Illus. 7 & 13)
46	MAY 697715
47	Thermal Cutoff (Includes Illus. 48)
48	Thermostat 250 F (122 C)
49	Bracket, Heater Mounting
50	Limiter, Thermal
51	MAY 3389644
52	MAY 8299979
53	BULKHEAD, FRONT
54	MAY 8571651
