MET3800XW0 09 – MACHINE BASE PARTS – Aparts

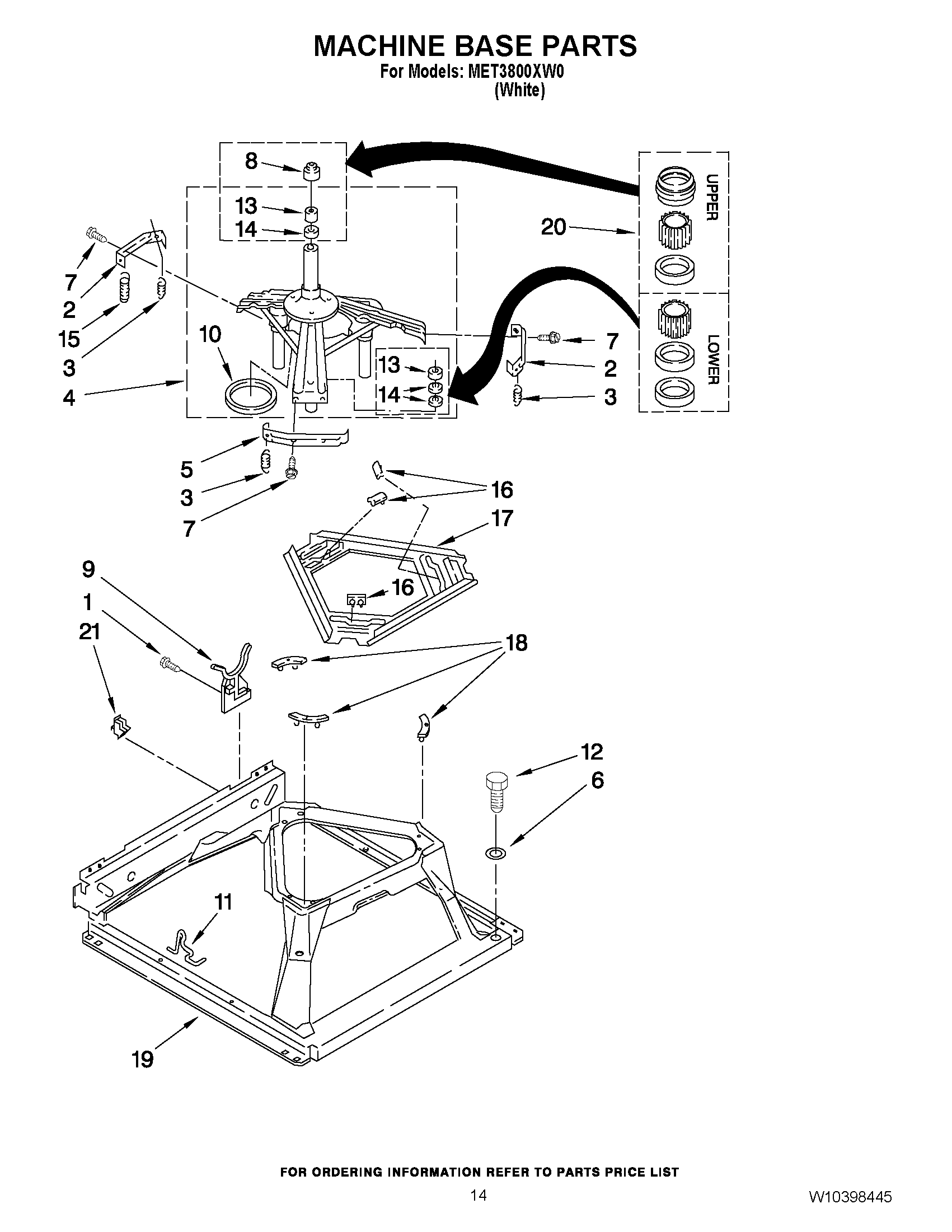

MET3800XW0 09 – MACHINE BASE PARTS

Products

Position	Product
1	SCREW
2	MAY 64067
3	SPRING, SUSPENSION(3)
4	MAY 8575214
5	MAY 64065
6	MAY 3349340
7	Screw, 10-32 x 5/8
8	MAY 8577376
9	MAY 3350506
10	MAY 63134
11	MAY W10145155
12	Screw, 5/16-18 x 1 3/32
13	MAY 8546455
14	MAY 357409
15	MAY W10250667
16	MAY 62568
17	MAY 3946509
18	MAY 3363660
19	MAY 3349343
20	MAY 285203
21	MAY 3349749
