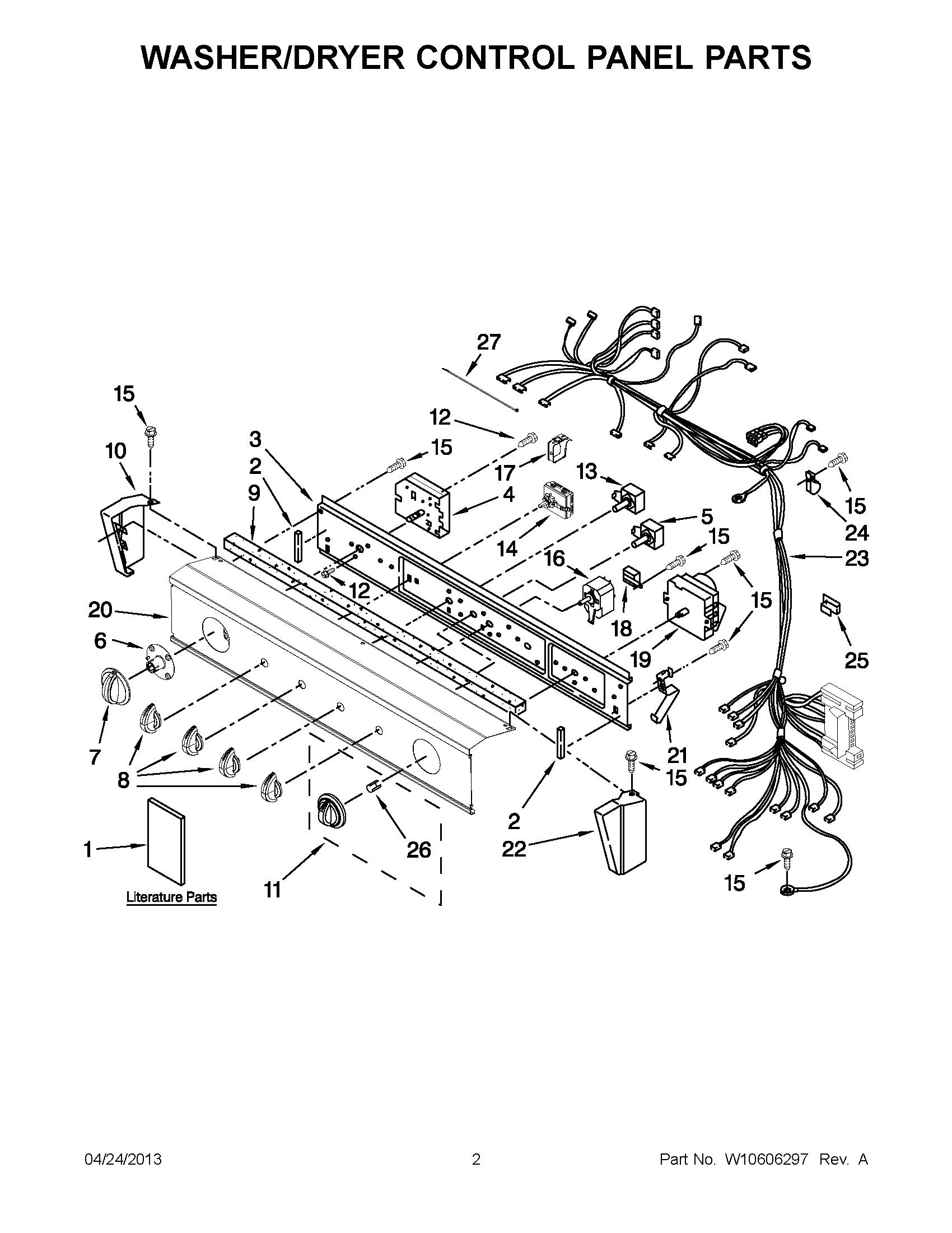

MET3800XW1 01 – WASHER/DRYER CONTROL PANEL PARTS

MET3800XW1 01 – WASHER/DRYER CONTROL PANEL PARTS

Written by

in

MET3800XW1 01 – WASHER/DRYER CONTROL PANEL PARTS

Products

Position	Product
1	MAY W10562797
1	MAY W10389459
1	MAY W10343072
1	MAY W10356098
2	MAY 3390688
3	MAY 8528583
4	MAY W10124193
5	MAY 3949188
6	Dial, (Washer)
7	Knob, Timer (Washer)
8	Knob, Control (3)
9	MAY 8521965
10	End Cap (LH)
11	Knob, Timer
12	Screw, 10-32 x 5/16
13	MAY W10544357
14	MAY W10114118
15	SCREW,8-18 X 3/8
16	MAY W10117655
17	Clip, Harness (2)
18	MAY 694419
19	MAY W10113816
20	MAY W10339548
21	MAY 3389453
22	End Cap (RH)
23	MAY W10470714
24	MAY 3390604
25	MAY 3390422
26	CLIP, SPRING
27	TIE WIRE
