MET3800XW1 09 – MACHINE BASE PARTS – Aparts

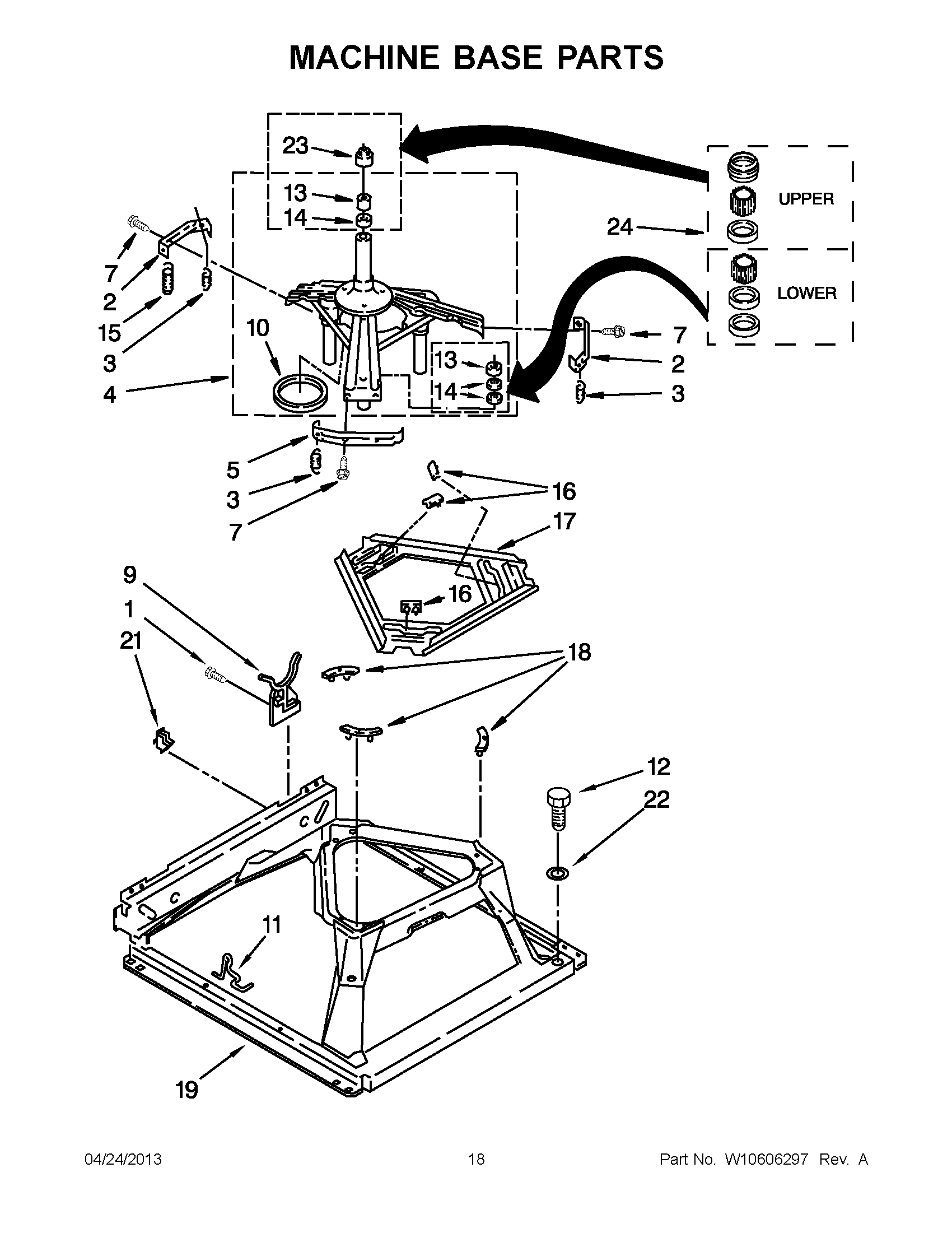

MET3800XW1 09 – MACHINE BASE PARTS

Products

Position	Product
1	SCREW
2	MAY 64067
3	SPRING, SUSPENSION(3)
4	MAY 8575214
5	MAY 64065
7	Screw, 10-32 x 5/8
9	MAY 3350506
10	MAY 63134
11	MAY W10145155
12	Screw, 5/16-18 x 1 3/32
13	MAY 8546455
14	MAY 357409
15	MAY W10250667
16	MAY 62568
17	MAY 3946509
18	MAY 3363660
19	MAY 3349343
21	MAY 3349749
22	MAY 3349340
23	MAY 8577376
24	MAY 285203
