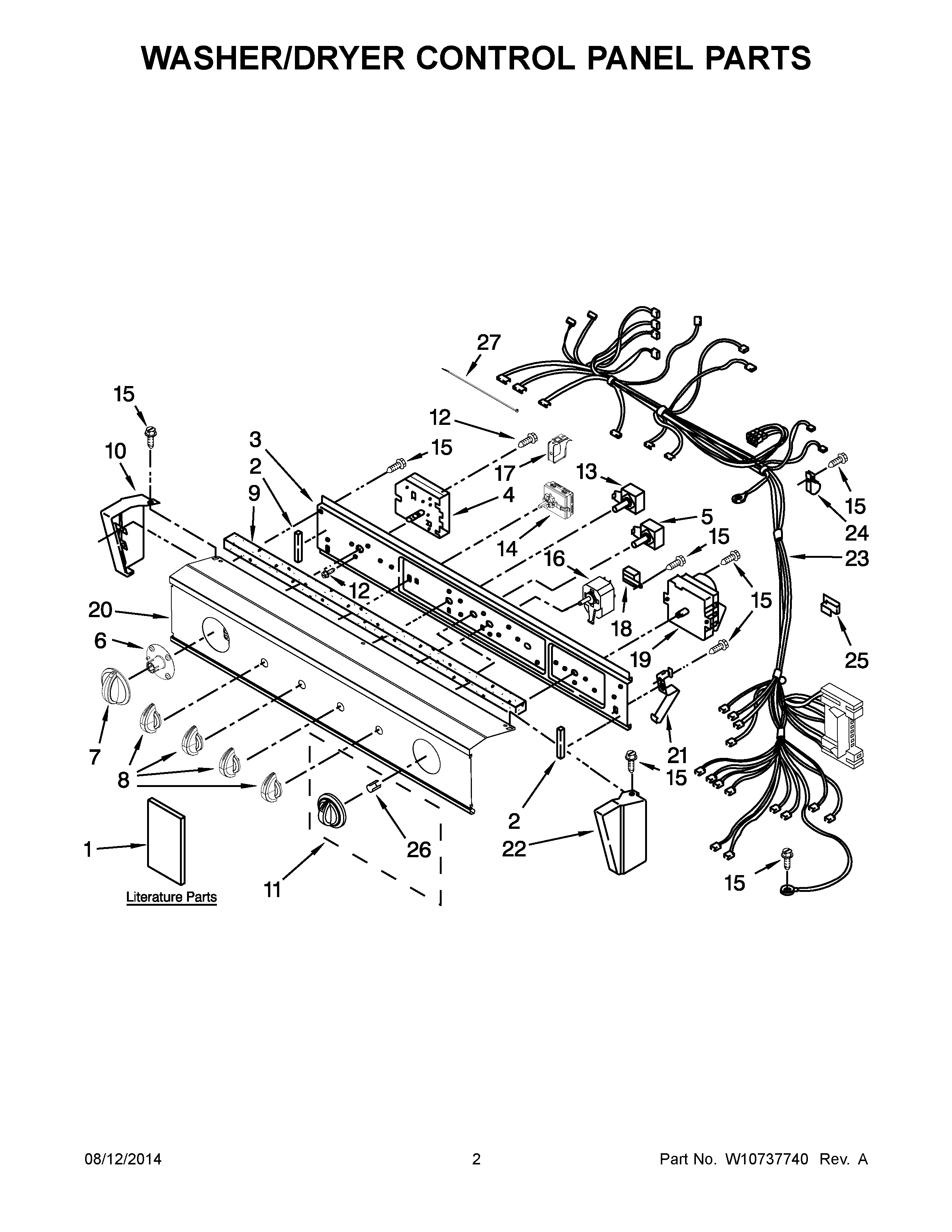

MET3800XW2 02 – WASHER/DRYER CONTROL PANEL PARTS

MET3800XW2 02 – WASHER/DRYER CONTROL PANEL PARTS

Written by

in

MET3800XW2 02 – WASHER/DRYER CONTROL PANEL PARTS

Products

PositionProduct
1BMAY W10685956
1MAY W10356098
1AMAY W10343072
1CMAY W10389459
2MAY 3390688
3MAY 8528583
4MAY W10124193
5MAY 3949188
6Dial, (Washer)
7Knob, Timer (Washer)
8Knob, Control (3)
9MAY 8521965
10End Cap (LH)
11Knob, Timer
12Screw, 10-32 x 5/16
13MAY W10544357
14MAY W10114118
15SCREW,8-18 X 3/8
16MAY W10117655
17Clip, Harness (2)
18MAY 694419
19MAY W10642932
20MAY W10339548
21MAY 3389453
22End Cap (RH)
23MAY W10640726
24MAY 3390604
25MAY 3390422
26CLIP, SPRING
27TIE WIRE
