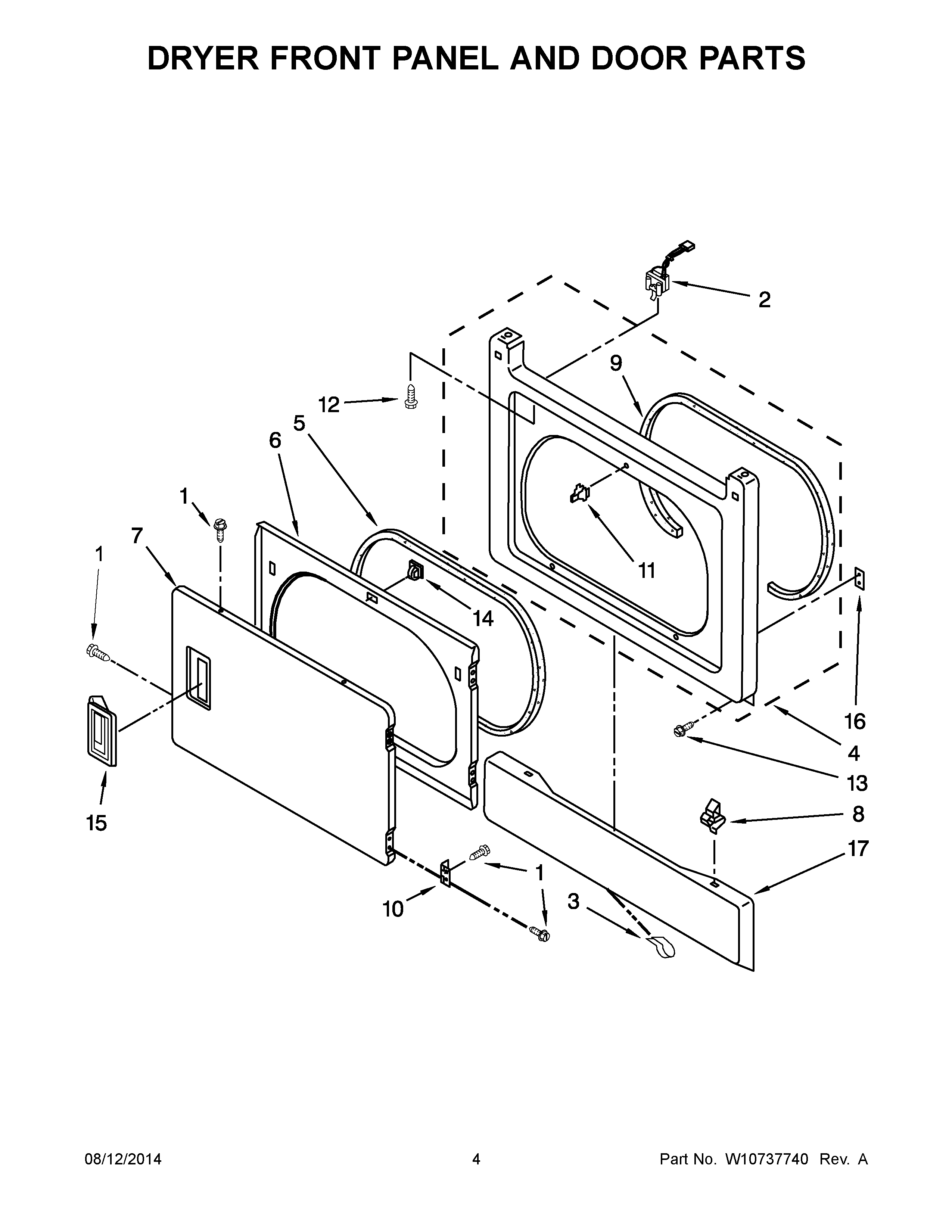

MET3800XW2 03 – DRYER FRONT PANEL AND DOOR PARTS

MET3800XW2 03 – DRYER FRONT PANEL AND DOOR PARTS

Written by

in

MET3800XW2 03 – DRYER FRONT PANEL AND DOOR PARTS

Products

Position	Product
1	MAY 342055
2	Switch, Door
3	Clip, Ground
4	MAY 3392547
5	MAY W10463984
6	MAY W10323061
7	DOOR, FRONT
8	RETAINER
9	MAY 3387242
10	ASSEMBLY, HINGE & PIN (SILVER)
11	MAY W10601014
12	SCREW
13	SCREW, 10-16 X 1/2
14	Door Catch Assembly (Upper)
15	MAY W10095180
16	MAY 3390902
17	MAY 3388958
