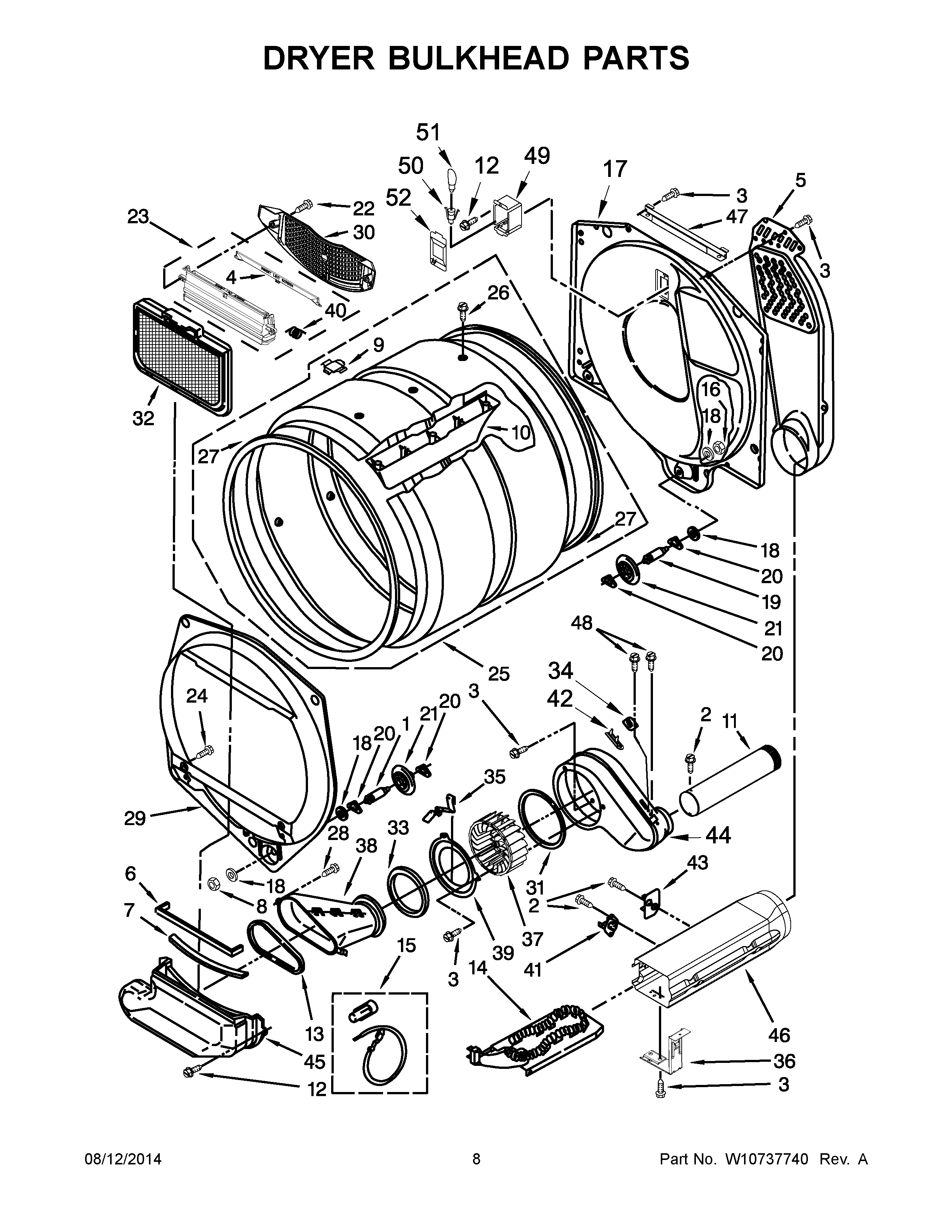

MET3800XW2 05 – DRYER BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	SCREW,8-18 X 3/8
3	SCREW
4	MAY W10685668
5	ASSEMBLY, AIR DUCT
6	MAY 697813
7	MAY 3391906
8	NUT, HEX
9	Plug, Drum Hole
10	MAY 3389449
11	PIPE, EXHAUST
12	SCREW
13	MAY 3391685
14	Element, Heater
15	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 8520836
18	WASHER
19	SHAFT, DRUM ROLLER – LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	SCREW
23	ASSEMBLY, OUTLET HOUSING
24	Screw, 8-18 x 1/2
25	MAY W10518375
26	MAY W10219342
27	MAY W10495828
28	SCREW
29	BULKHEAD, FRONT
30	GRILL, OUTLET
31	SEAL, PLATE COVER
32	MAY 3389644
33	MAY 8566209
34	MAY 3387134
35	MAY 3390935
36	Bracket, Heater Mounting
37	MAY 697772
38	Duct, Transition (Includes Illus. No.33)
39	Plate, Blower
40	Spring, Lint Screen Door
41	Thermostat 250 F (122 C)
42	Fuse, Thermal (91 C)
43	Thermal Cutoff (Includes Illus. 48)
44	MAY 8544362
45	Lint Duct Assembly (Includes Illus. 7 & 13)
46	MAY W10608822
47	MAY 8571651
48	Screw
49	MAY 3977373
50	MAY W10214261
51	MAY 3406124
52	MAY 3402841
