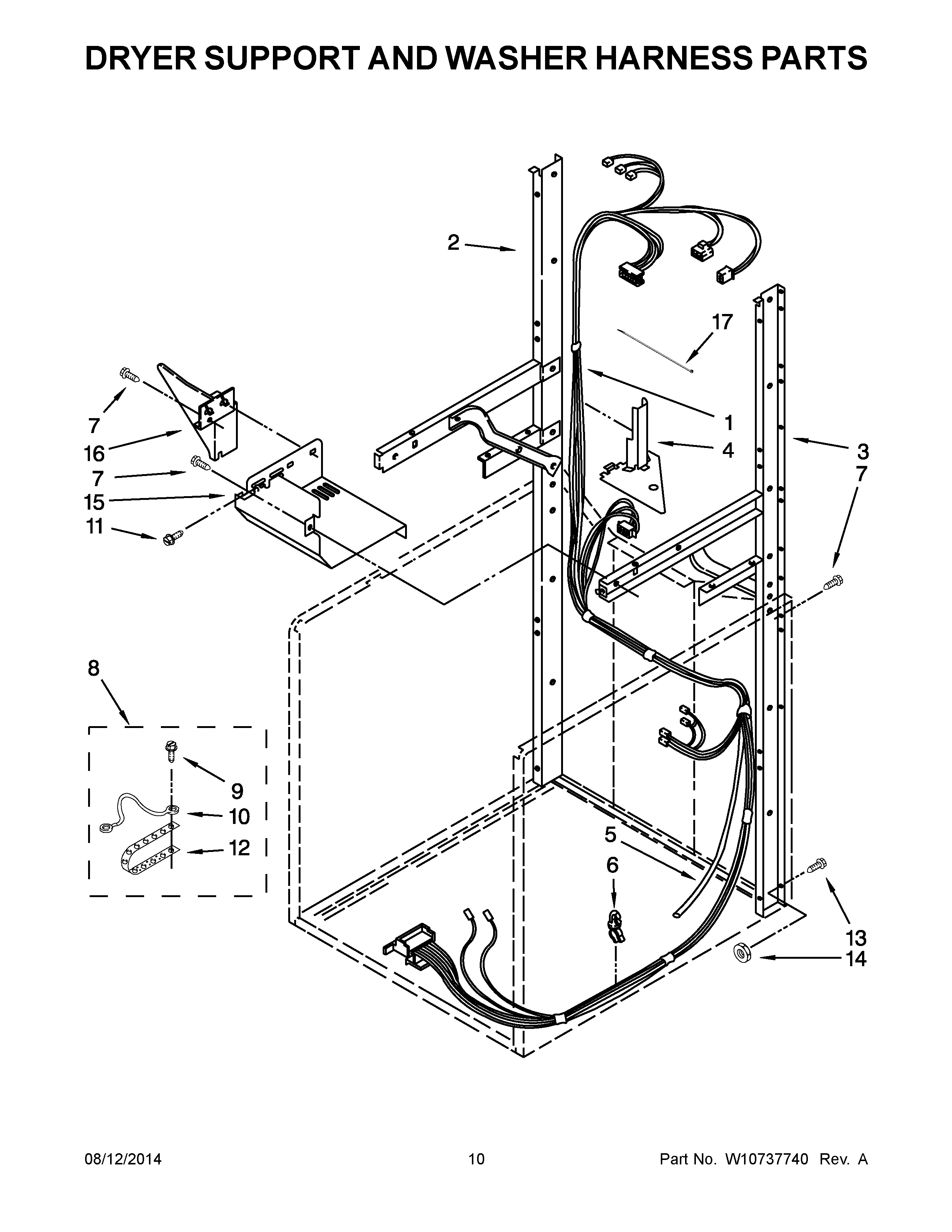

MET3800XW2 06 – DRYER SUPPORT AND WASHER HARNESS PARTS

MET3800XW2 06 – DRYER SUPPORT AND WASHER HARNESS PARTS

Written by

in

MET3800XW2 06 – DRYER SUPPORT AND WASHER HARNESS PARTS

Products

PositionProduct
1MAY W10545604
2MAY 3388851
3MAY 3388850
4MAY 3390609
5MAY W10564195
6Clip, Harness (2)
7SCREW
8MAY 685463
9MAY 8533971
10Wire
11SCREW, 10-16 X 1/2
12Strap, Grounding
13Bolt, 5/16-18 x 1/2 (4)
14Nut
15MAY 3394350
16MAY W10513339
17TIE WIRE
