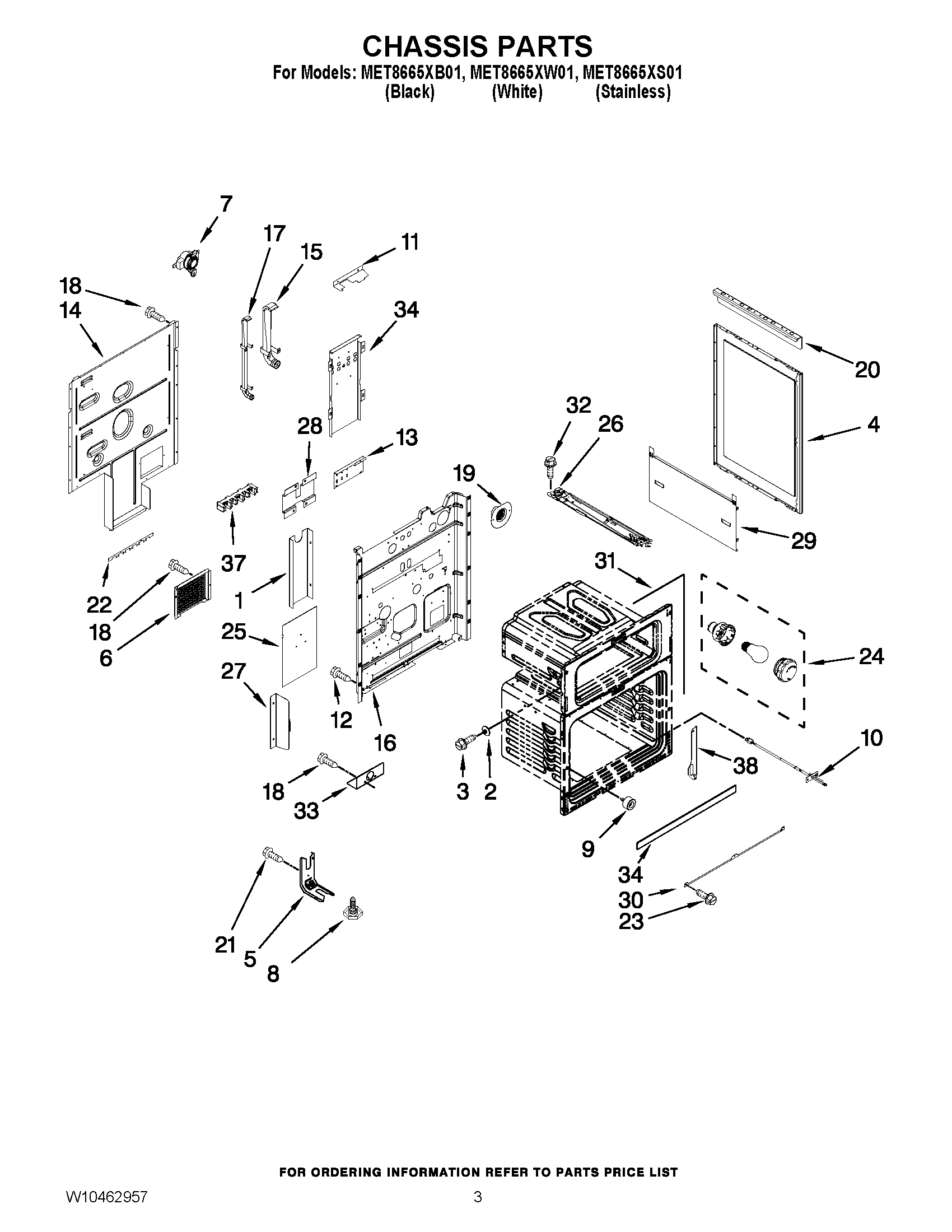

MET8665XS01 03 – CHASSIS PARTSadmin2025-04-26T08:54:57+00:00MET8665XS01 03 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | INSULATION, BACK |
| NI | INSULATION, WRAPPER |
| NI | MAY W10271637 |
| NI | INSULATION, MAIN FRONT STRIP |
| NI | INSULATION, MIDDLE |
| 1 | MAY W10332459 |
| 2 | MAY W10237689 |
| 3 | MAY W10267456 |
| 4 | PANEL, SIDE (BLACK) |
| 4 | PANEL, SIDE (WHITE) |
| 5 | BRACKET, ANTI-TIP |
| 6 | MAY W10312612 |
| 7 | SWITCH, HI LIMIT |
| 8 | Leg, Leveling |
| 9 | ASSEMBLY, BUMPER |
| 10 | SENSOR, OVEN |
| 11 | MAY W10268559 |
| 12 | MAY 7101P426- 60 |
| 13 | MAY W10332449 |
| 14 | MAY W10261386 |
| 15 | MAY W10337391 |
| 16 | MAY W10260583 |
| 17 | MAY W10323793 |
| 18 | MAY 7101P434-60 |
| 19 | MAY W10322408 |
| 20 | BRACKET, U CHANNEL |
| 21 | SCREW, ANTI-TIP KIT |
| 22 | SHIELD, POWER CORD |
| 23 | Screw (2) (Black) |
| 24 | MAY W10323374 |
| 25 | SHIELD, CORD RIGHT |
| 26 | MAY W10370650 |
| 27 | COVER, WIRE LOWER |
| 28 | INSULATOR, HEAT SHIELD |
| 29 | SHIELD, SIDE INSULATION |
| 30 | MAY W10299886 |
| 31 | MAY W10337392 |
| 31 | MAY W10269069 |
| 32 | Screw (Black) (2) |
| 33 | BRACKET, POWER SUPPLY |
| 34 | MAY W10261388 |
| 37 | WPW10245259 Whirlpool Terminal Block |
| 38 | MAY W10410463 |
| 38 | MAY W10410461 |
