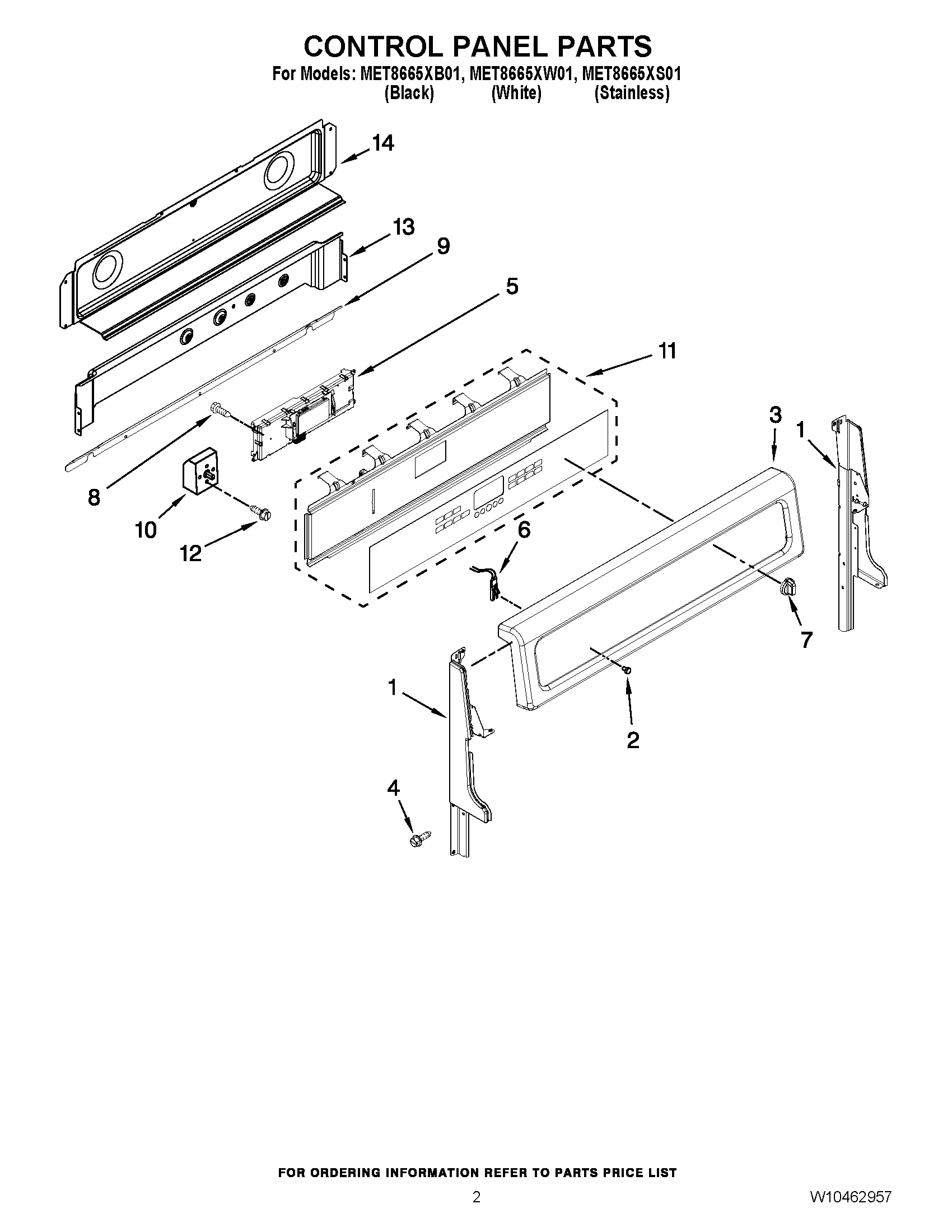

MET8665XW01 02 – CONTROL PANEL PARTS

MET8665XW01 02 – CONTROL PANEL PARTS

Written by

in

MET8665XW01 02 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY W10319109
1MAY W10319110
1MAY W10319111
1MAY W10319112
2MAY 3196068
3CONSOLE (STAINLESS)
3MAY W10097270
3MAY W10097280
4Screw (2) (Black)
5ELECTRIC, CONTROL MRC2
6MAY 7407P136-60
7KNOB (STAINLESS)
7MAY W10294794
7MAY W10294796
8MAY 7101P500-60
9SHIELD, WIRE COVER
10SWITCH, INFINITE (RIGHT FRONT)
10SWITCH, INFINITE (LEFT REAR & RIGHT REAR)
10SWITCH, INFINITE (RF)
11ASSEMBLY, MEMBRANE (INCL. BRACKET) (BLACK)
11ASSEMBLY, MEMBRANE (INCL. BRACKET) (STAINLESS)
11ASSEMBLY, MEMBRANE (INCL. BRACKET) (WHITE)
12SCREW
13MAY W10278697
14COVER, BACKGUARD
