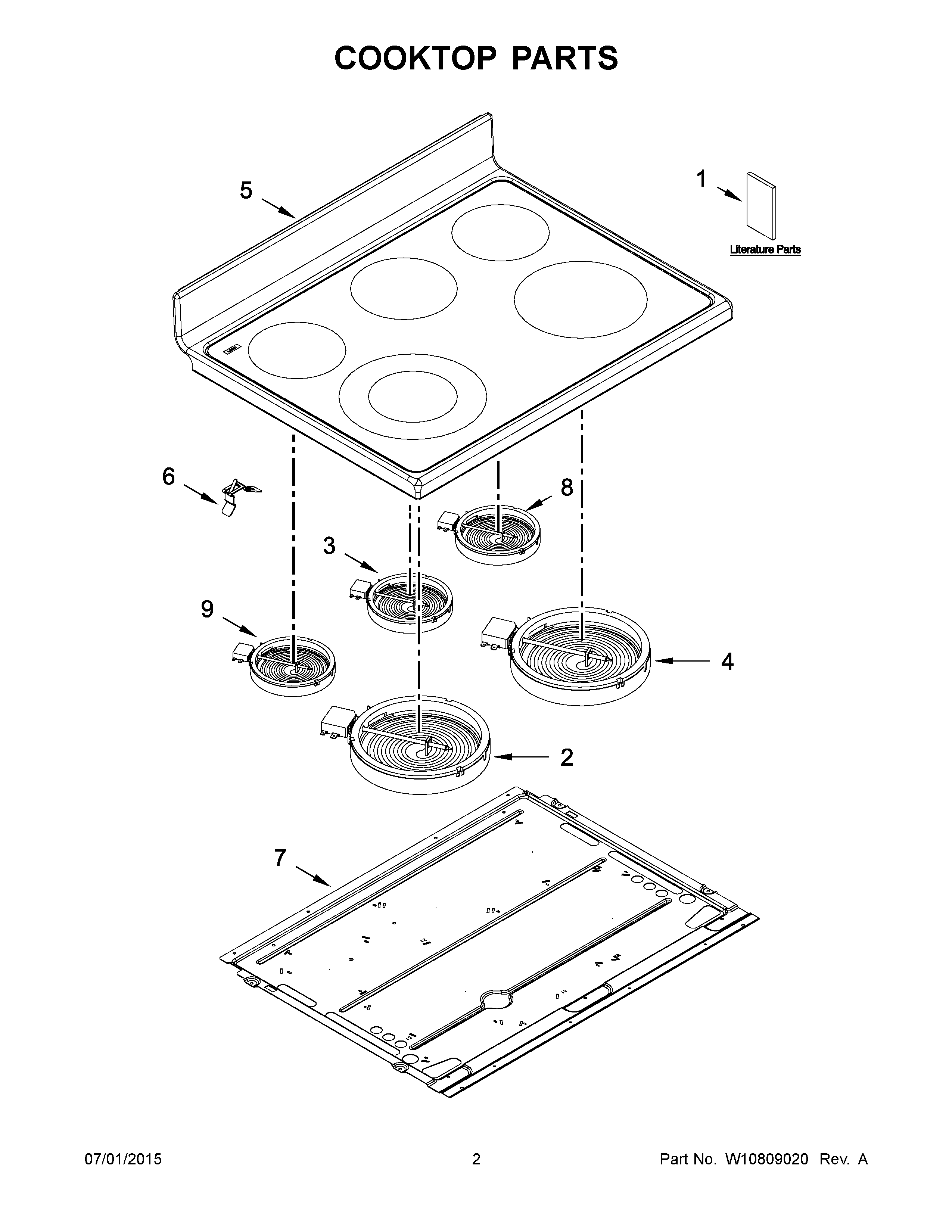

MET8720DE02 02 – COOKTOP PARTSadmin2025-04-26T08:54:36+00:00MET8720DE02 02 – COOKTOP PARTS
Products
| Position | Product |
|---|
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | WIRING HARNESS PARTS, HARNESS, INFINITE SWITCH RIGHT |
| NI | Clip, Wire |
| NI | MAY W10219255 |
| NI | HARNESS, EOL (MRC) |
| NI | SCREW, GROUND (GRN) |
| NI | MAY W10537938 |
| NI | MAY W10745683 |
| NI | MAY W10745672 |
| NI | BLOCK, WIRE ADAPTER (3) |
| 1B | MAY W10647745 |
| 1A | MAY W10748894 |
| 1 | MAY W10430958 |
| 1C | TIPS, SAFE COOKING (ENGLISH) |
| 1D | TIPS, SAFE COOKING (FRENCH) |
| 2 | ELEMENT (3000W, 1000/2000W) (LEFT FRONT) |
| 3 | Element, Warm |
| 4 | ELEMENT (3200W) (RIGHT FRONT) |
| 5 | MAY W10664053 |
| 5A | MAY W10664052 |
| 6 | SPRING, ELEMENT |
| 7 | MAY W10260946 |
| 8 | ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR) |
| 9 | ELEMENT, SURFACE (700W) (RIGHT REAR) |
