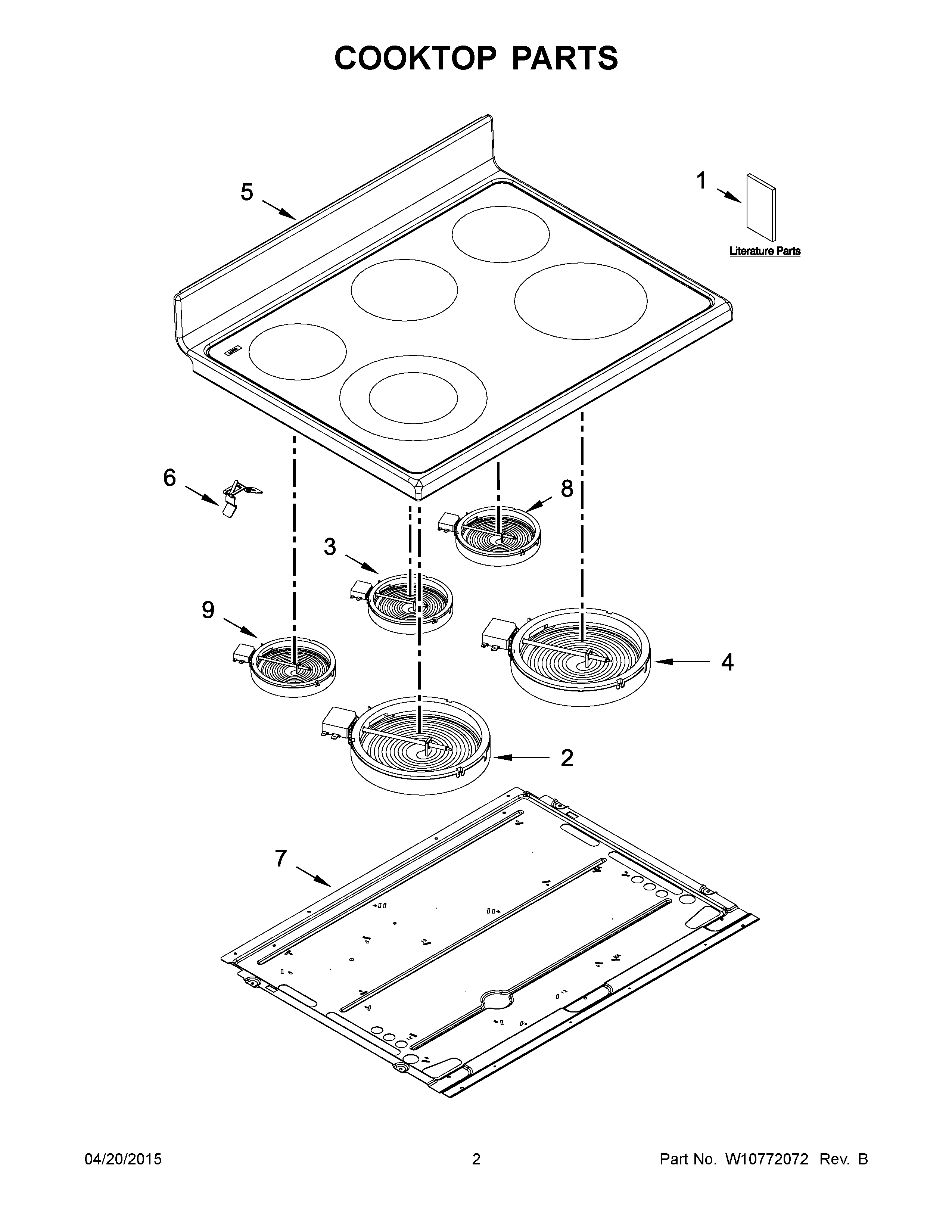

MET8720DS01 02 – COOKTOP PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	WIRING HARNESS PARTS, HARNESS, SENSOR
NI	WIRING HARNESS PARTS, HARNESS, INFINITE SWITCH RIGHT
NI	Clip, Wire
NI	BLOCK, WIRE ADAPTER (3)
NI	MAY W10219255
NI	SCREW, GROUND (GRN)
NI	HARNESS, EOL (MRC)
NI	MAY W10537938
NI	HARNESS, MAIN
1A	MAY W10748894
1B	MAY W10647745
1	MAY W10430958
1C	TIPS, SAFE COOKING (ENGLISH)
1D	TIPS, SAFE COOKING (FRENCH)
2	ELEMENT (3000W, 1000/2000W) (LEFT FRONT)
3	Element, Warm
4	ELEMENT (3200W) (RIGHT FRONT)
5A	MAY W10664052
5	MAY W10664053
6	SPRING, ELEMENT
7	MAY W10260946
8	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
9	ELEMENT, SURFACE (700W) (RIGHT REAR)
