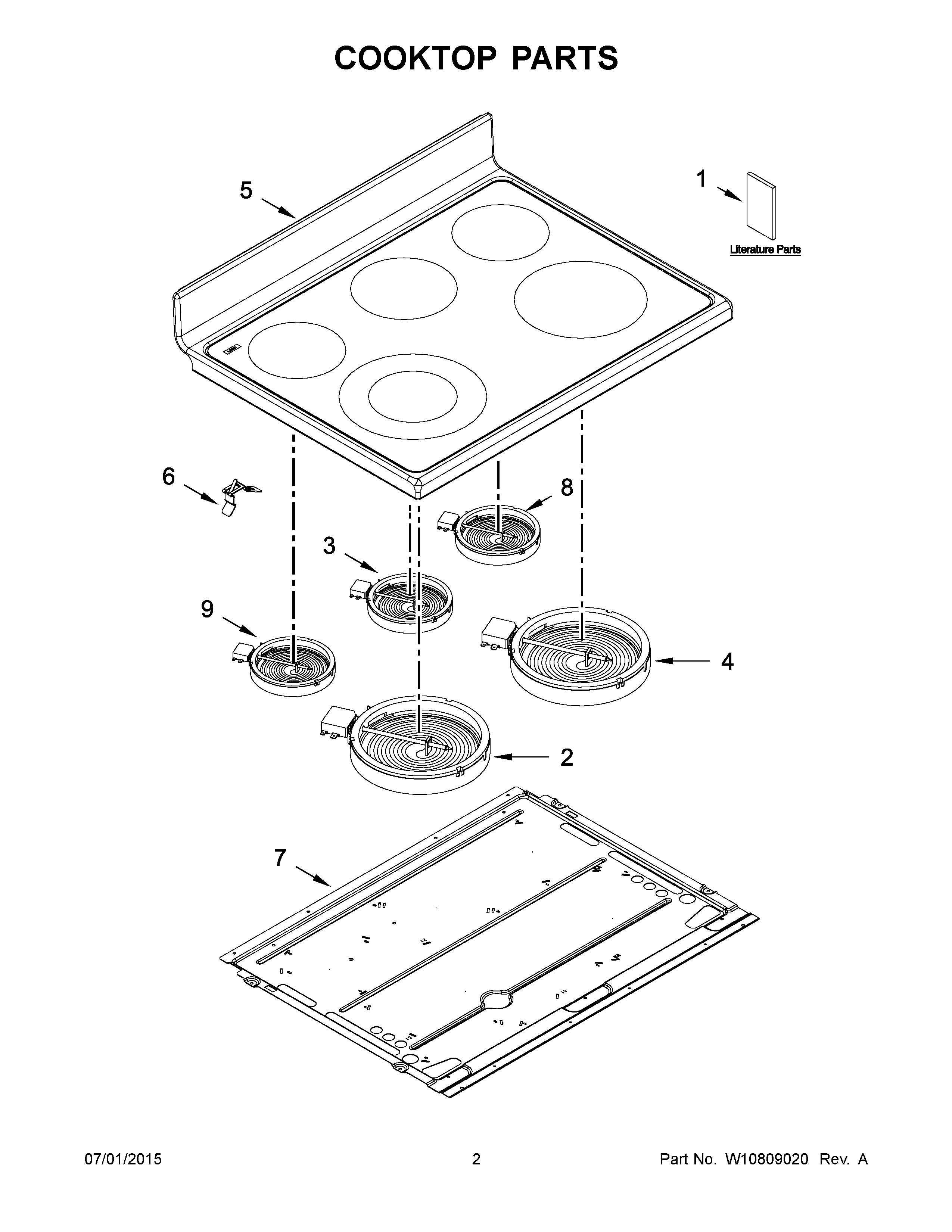

MET8720DS02 02 – COOKTOP PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	WIRING HARNESS PARTS, HARNESS, INFINITE SWITCH RIGHT
NI	Clip, Wire
NI	MAY W10219255
NI	HARNESS, EOL (MRC)
NI	SCREW, GROUND (GRN)
NI	MAY W10537938
NI	MAY W10745683
NI	MAY W10745672
NI	BLOCK, WIRE ADAPTER (3)
1B	MAY W10647745
1A	MAY W10748894
1	MAY W10430958
1C	TIPS, SAFE COOKING (ENGLISH)
1D	TIPS, SAFE COOKING (FRENCH)
2	ELEMENT (3000W, 1000/2000W) (LEFT FRONT)
3	Element, Warm
4	ELEMENT (3200W) (RIGHT FRONT)
5	MAY W10664053
5A	MAY W10664052
6	SPRING, ELEMENT
7	MAY W10260946
8	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
9	ELEMENT, SURFACE (700W) (RIGHT REAR)
