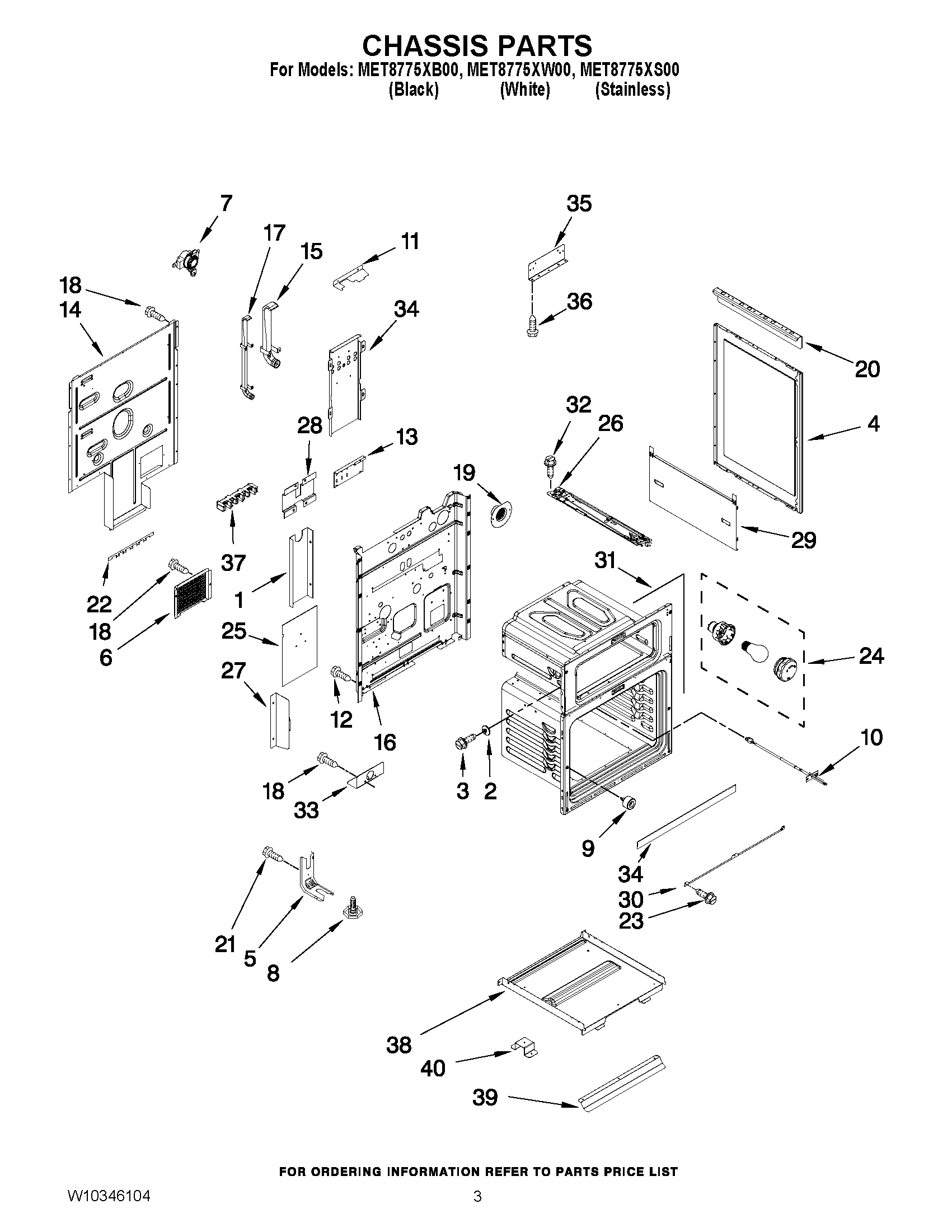

MET8775XB00 03 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, BACK
NI	MAY W10272326
NI	MAY W10271637
NI	INSULATION, WRAPPER
NI	INSULATION, MIDDLE
NI	INSULATION, MAIN FRONT STRIP
1	MAY W10332459
2	MAY W10237689
3	MAY W10267456
4	PANEL, SIDE (BLACK)
4	PANEL, SIDE (WHITE)
5	BRACKET, ANTI-TIP
6	MAY W10315657
7	SWITCH, HI LIMIT
8	Leg, Leveling
9	ASSEMBLY, BUMPER
10	SENSOR, OVEN
11	MAY W10268559
12	MAY 7101P426- 60
13	MAY W10332449
14	MAY W10261386
15	MAY W10323792
16	MAY W10260583
17	MAY W10323793
18	MAY 4449743
19	MAY W10322408
20	MAY W10319084
21	SCREW, ANTI-TIP KIT
22	SHIELD, POWER CORD
23	Screw (2) (Black)
24	MAY W10323374
25	SHIELD, CORD RIGHT
26	LOCK, DOOR (LOWER)
26	LOCK, DOOR (UPPER)
27	COVER, WIRE LOWER
28	INSULATOR, HEAT SHIELD
29	SHIELD, SIDE INSULATION
30	MAY W10299886
31	MAY W10269069
31	MAY W10249984
32	Screw (Black) (2)
33	BRACKET, POWER SUPPLY
34	MAY W10261388
35	MAY W10328265
36	MAY 7101P635-60
37	WPW10245259 Whirlpool Terminal Block
38	MAY W10253469
39	BRACKET, RETAINING
40	CLIP, RETAINING
