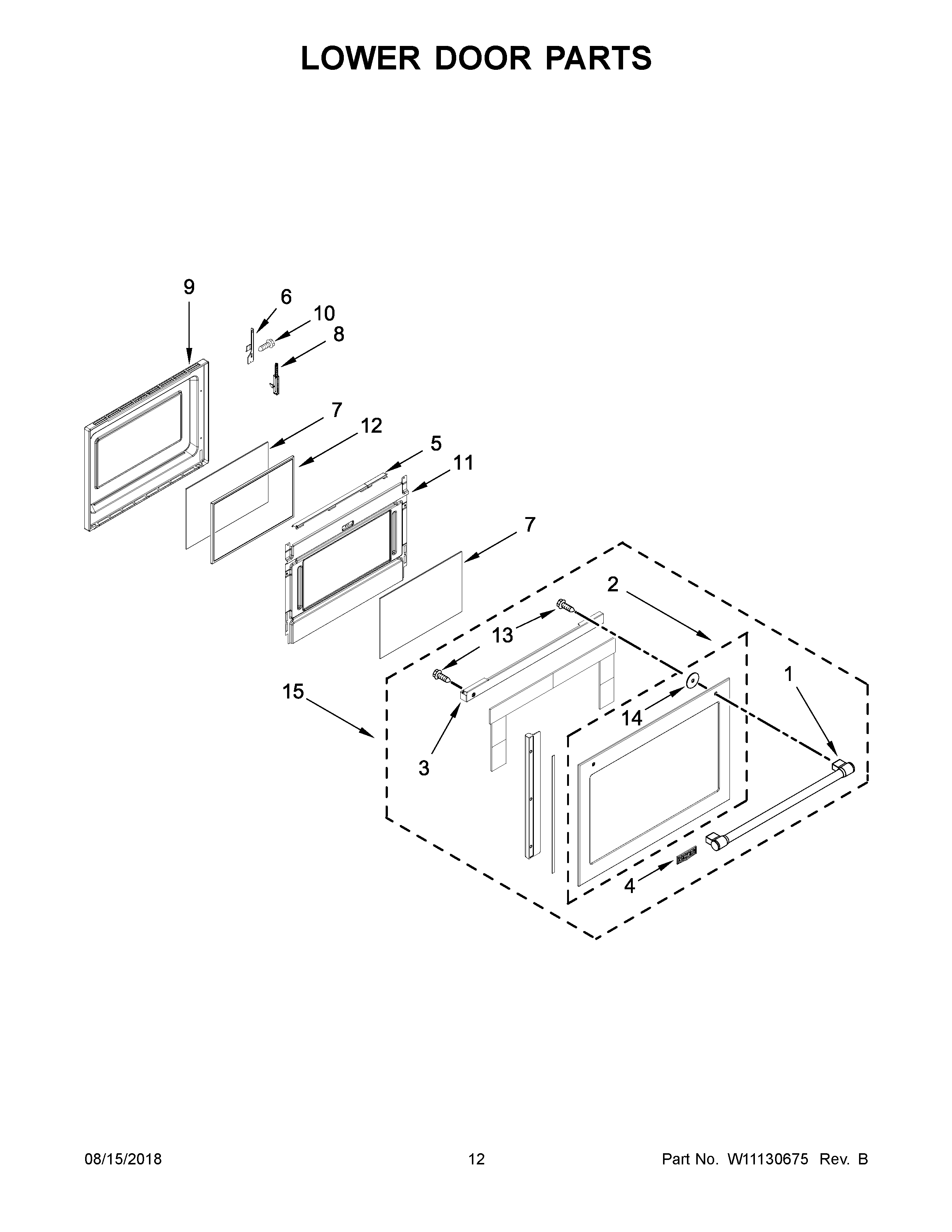

MET8800FZ00 07 – LOWER DOOR PARTS

Written by

Products

Position	Product
1	ASSEMBLY, DOOR HANDLE (STAINLESS)
2	PANEL, OUTER DOOR (STAINLESS)
3	BRACKET, HANDLE
4	BADGE
5	FRAME, GLASS
6	RECEIVER (LEFT)
6A	RECEIVER (RIGHT)
7	GLASS, INNER
8	HINGE, DOOR (LEFT)
8A	HINGE, DOOR (RIGHT)
9	MAY W10272698
10	MAY 4449040
11	MAY W10340464
12	MAY W10321285
13	SCREW
14	MAY 7109P084-60
15	ASSEMBLY, OUTER DOOR (STAINLESS)
