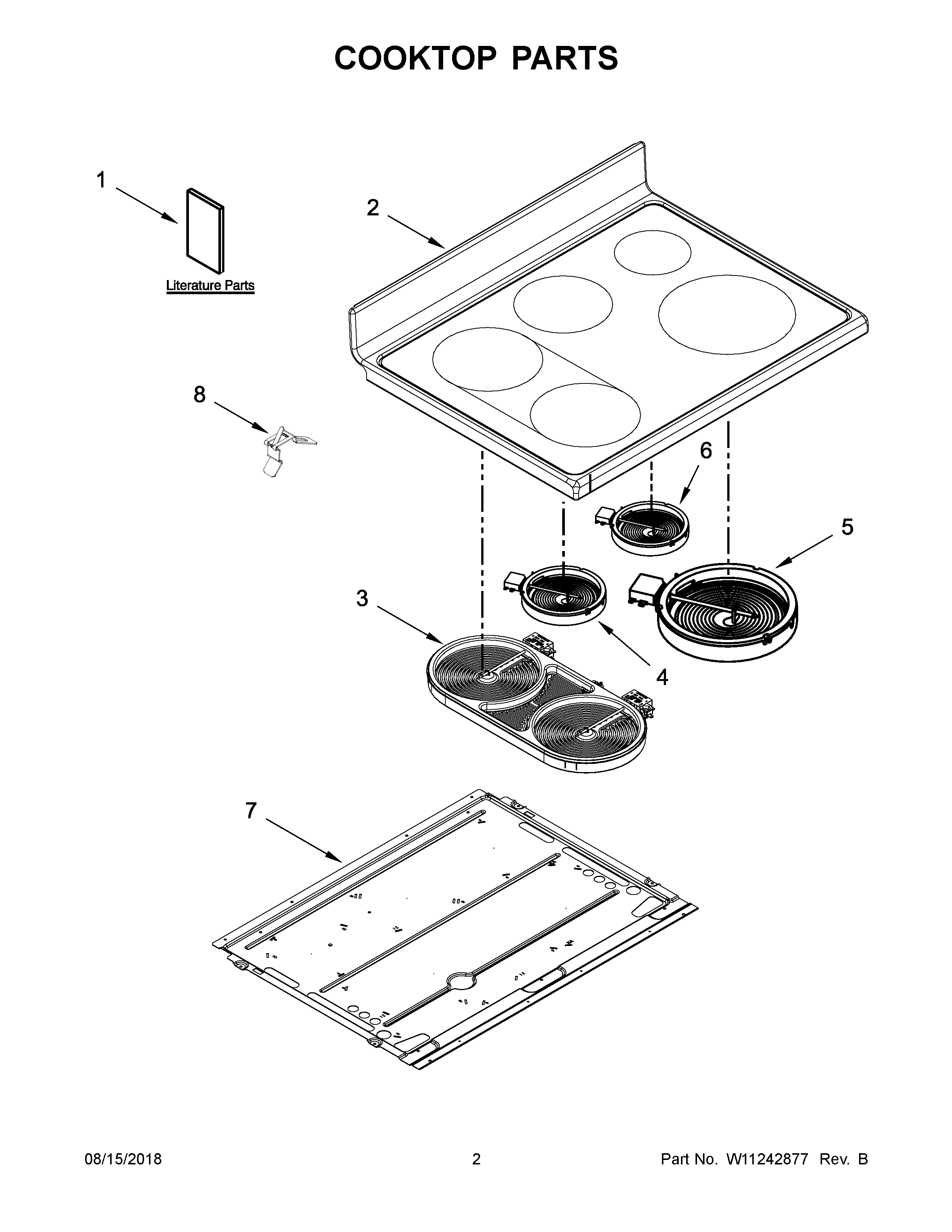

MET8800FZ01 02 – COOKTOP PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	BLOCK, WIRE ADAPTER (3)
NI	HARNESS, EOL (DOFSR)
NI	Clip, Wire
NI	HARNESS, SENSOR & LOCKS
NI	SCREW, GROUND (GRN)
NI	HARNESS, COOKTOP
NI	HARNESS, INFINITE SWITCH (LEFT)
NI	HARNESS, INFINITE SWITCH (RIGHT)
NI	HARNESS, MAIN
1C	DIAGRAM, ELECTRIC WIRE
1A	GUIDE, USE & CARE
1D	TIPS, SAFE COOKING (ENGLISH)
1B	MAY W10647745
1	MAY W10430958
1E	TIPS, SAFE COOKING (FRENCH)
2	COOKTOP (BLACK)
3	ELEMENT, BRIDGE (RIGHT FRONT & RIGHT REAR)
4	ELEMENT, WARM ZONE (CENTER)
5	ELEMENT (3200W) (RIGHT FRONT)
6	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
7	MAY W10260946
8	SPRING, ELEMENT
