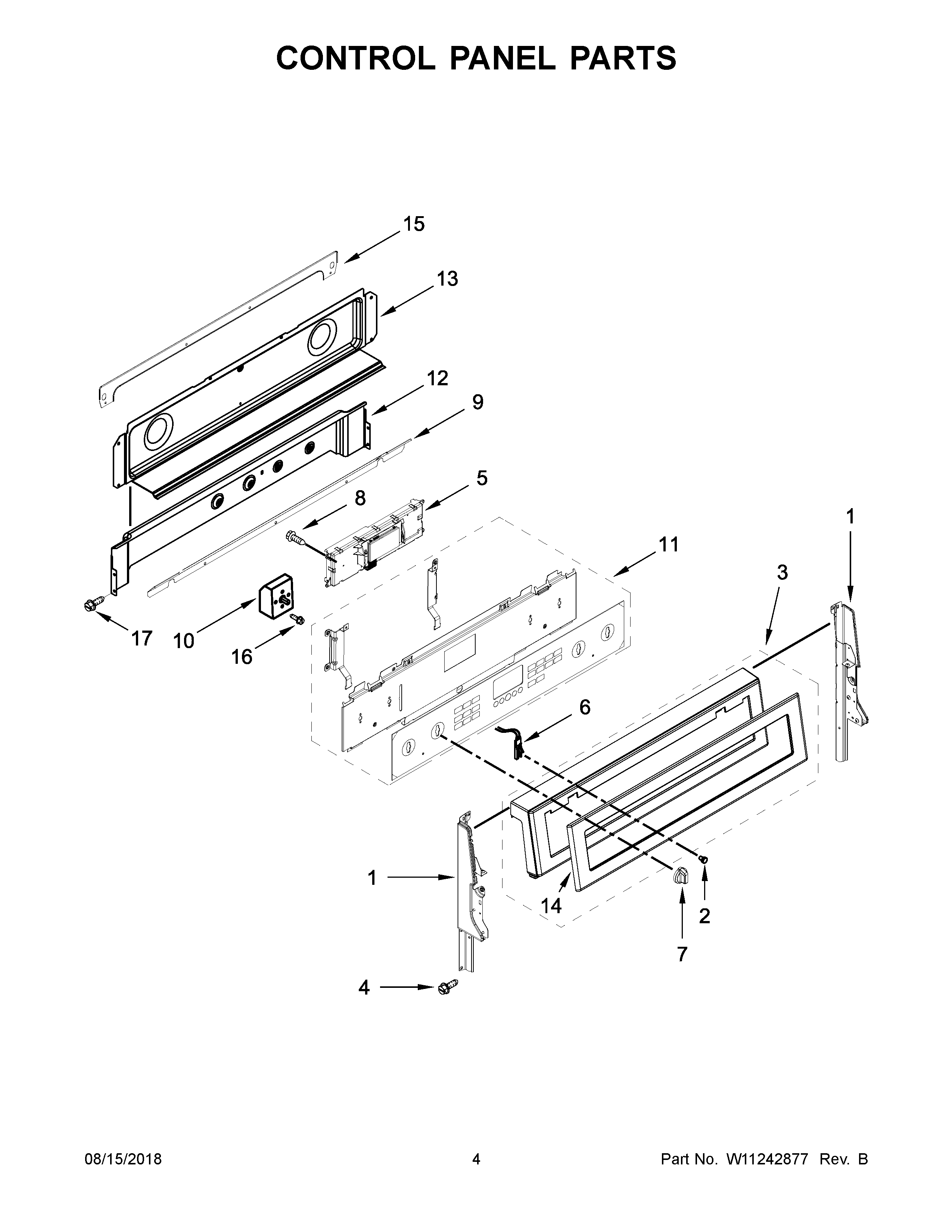

MET8800FZ01 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	MAY W10319111
1	MAY W10319109
2	MAY 3196068
3	ASSEMBLY, CONSOLE (STAINLESS)
4	Screw (2) (Black)
5	CONTROL, ELECTRIC
6	MAY 7407P136-60
7	KNOB (STAINLESS)
8	MAY 7101P434-60
9	SHIELD, WIRE COVER
10	SWITCH, INFINITE (LEFT FRONT & RIGHT FRONT)
10C	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
10B	SWITCH, INFINITE (RIGHT FRONT)
10A	MAY W10843843
11	ASSEMBLY, MEMBRANE (INCLUDES BRACKET) (STAINLESS)
12	MAY W10278697
13	MAY W10776098
14	LINER (NOT A SERVICEABLE PART)
15	COVER, WIRE FILLER
16	SCREW
17	SCREW
