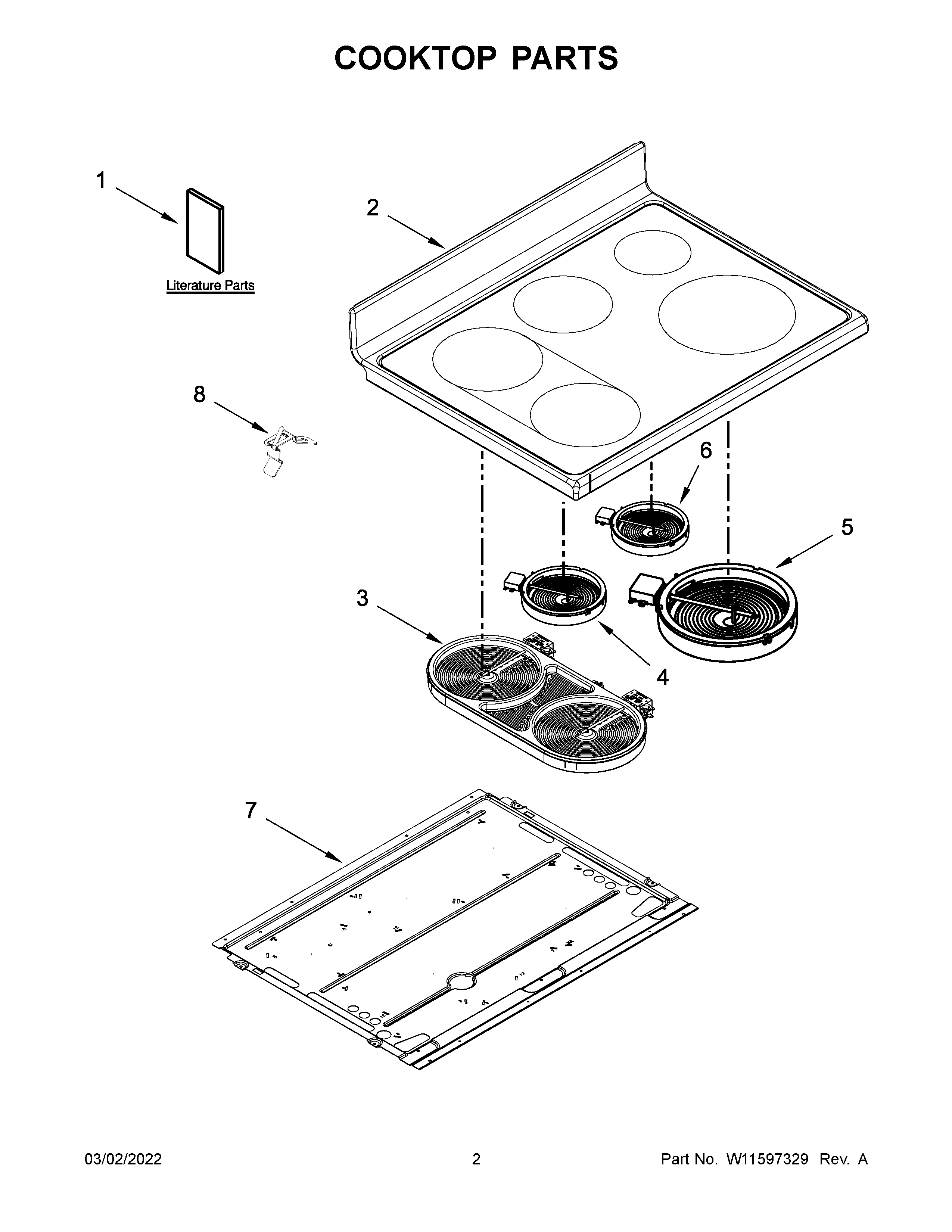

MET8800FZ05 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	HARNESS, INFINITE SWITCH (RIGHT)
NI	HARNESS, INFINITE SWITCH (LEFT)
NI	HARNESS, COOKTOP
NI	W11172428 Whirlpool Wire Harness
NI	W11172531 Whirlpool Wire Harness
NI	WIRING HARNESS PARTS, BLOCK, BARE WIRE ADAPTER
NI	HARNESS, MAIN
NI	WIRING HARNESS PARTS, SCREW, GROUND
NI	WPL 8019P01360
1B	TECH SHEET
1A	QUICK START GUIDE
1	OWNER'S MANUAL
2	W11132188 Whirlpool Cooktop
3	WPW10248259 Whirlpool Surface Element
4	W11041453 Whirlpool Surface Element
5	WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
6	ELMNT-SURF
7	WPW10260946 Whirlpool Panel
8	WPW10225448 Whirlpool Spring Assembly
