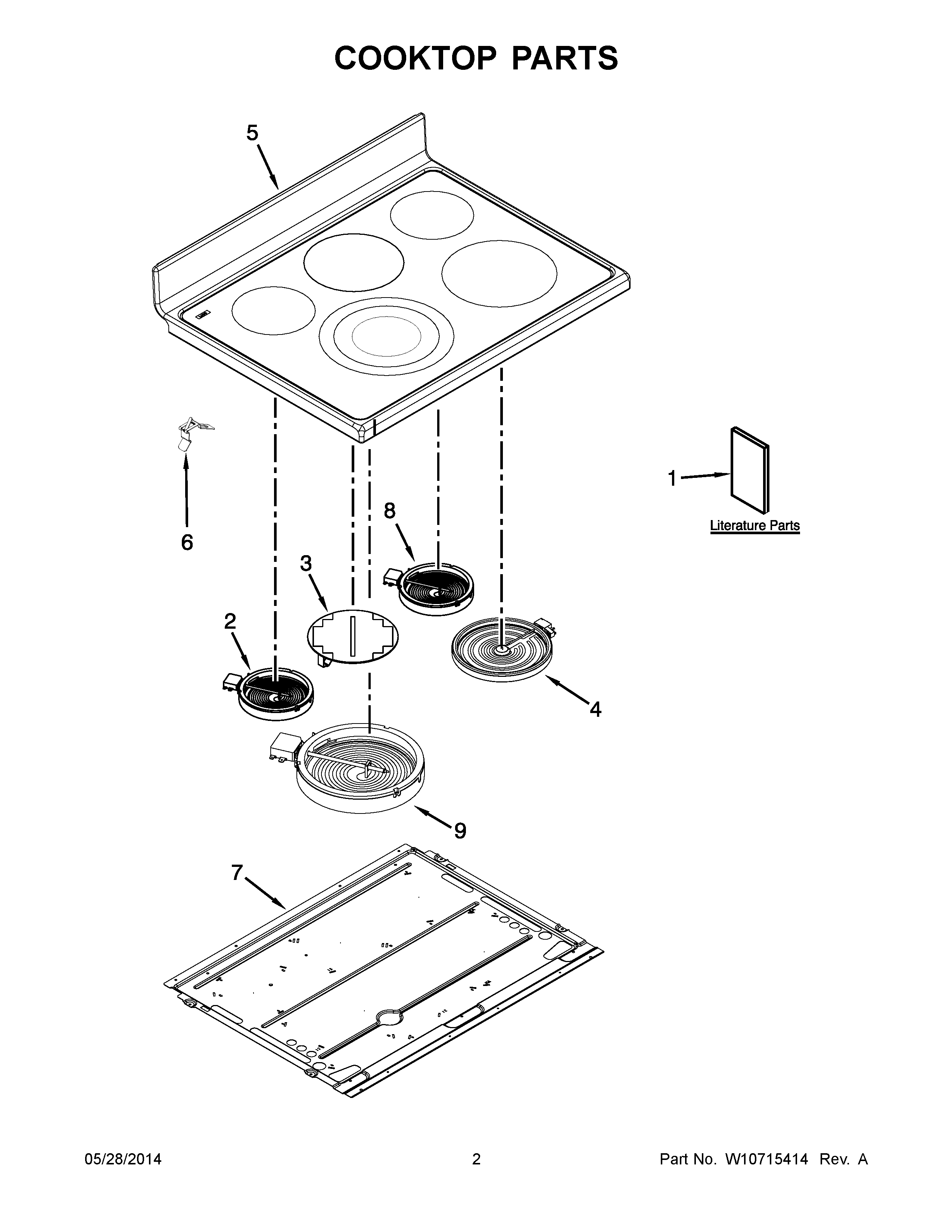

MET8820DS00 02 – COOKTOP PARTS

MET8820DS00 02 – COOKTOP PARTS

Written by

in

MET8820DS00 02 – COOKTOP PARTS

Products

PositionProduct
NIMAY W10668432
NIWIRING HARNESS PARTS, HARNESS, COOKTOP
NIWIRING HARNESS PARTS, HARNESS, INFINITE SWITCH LEFT
NIWIRING HARNESS PARTS, HARNESS, SENSOR
NIClip, Wire
NISCREW, GROUND (GRN)
NIWIRING HARNESS PARTS, HARNESS, INFINITE SWITCH RIGHT
NIBLOCK, WIRE ADAPTER (3)
1MAY W10669246
1MAY W10696177
1MAY W10430958
1TIPS, SAFE COOKING (ENGLISH)
1TIPS, SAFE COOKING (FRENCH)
2ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
3Element, Warm
4ELEMENT, HYPER (3200W) (RIGHT FRONT)
5MAY W10664054
6SPRING, ELEMENT
7MAY W10260946
8ELEMENT, SURFACE (700W) (RIGHT REAR)
9ELEMENT, TRIPLE (2700W) (LEFT FRONT)
