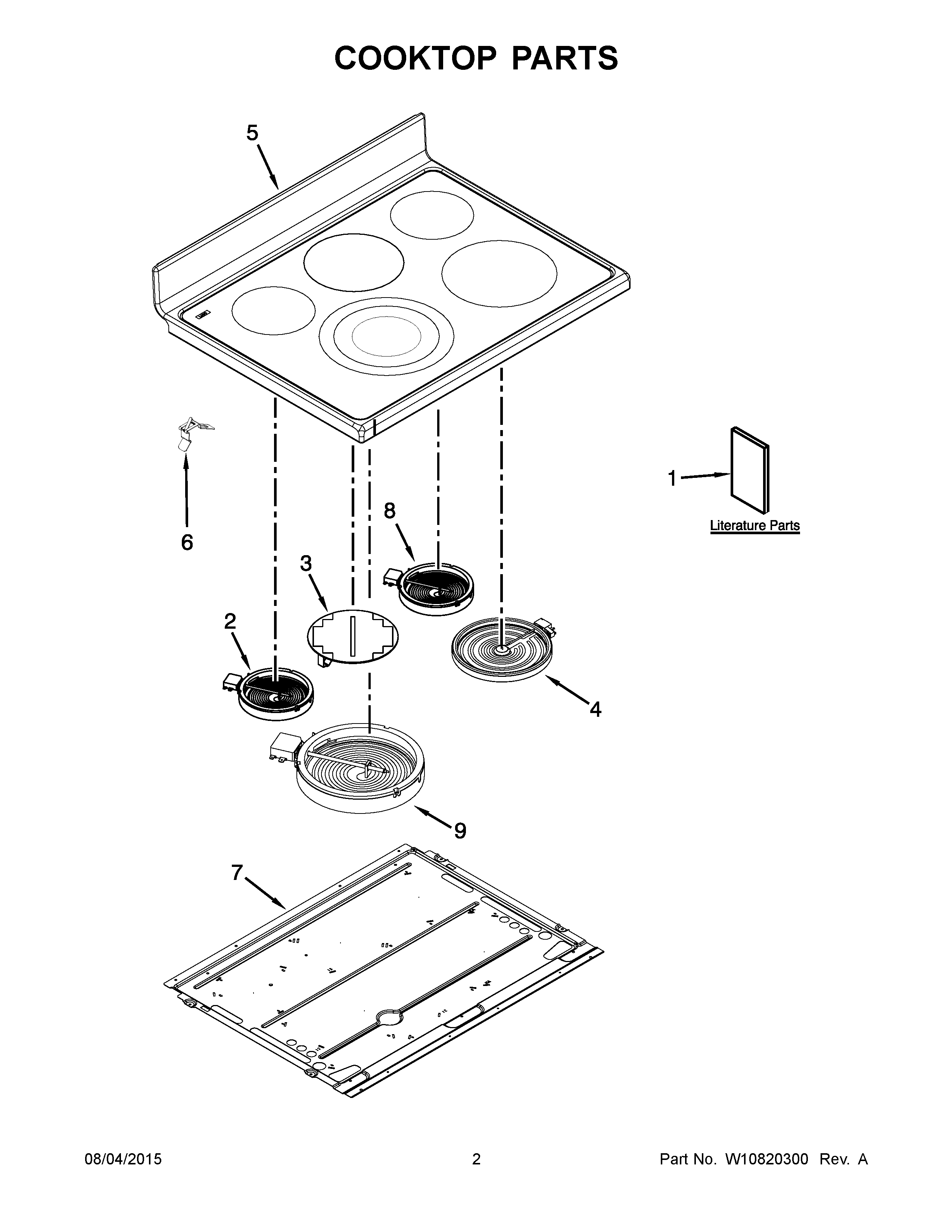

MET8820DS02 02 – COOKTOP PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIBLOCK, WIRE ADAPTER (3)
NIWIRING HARNESS PARTS, HARNESS, INFINITE SWITCH LEFT
NIWIRING HARNESS PARTS, HARNESS, INFINITE SWITCH RIGHT
NIClip, Wire
NISCREW, GROUND (GRN)
NIHARNESS, EOL (MRC)
NIMAY W10745683
NIMAY W10745675
NIWIRING HARNESS PARTS, HARNESS, COOKTOP
1BMAY W10647745
1AMAY W10748894
1MAY W10430958
1DTIPS, SAFE COOKING (FRENCH)
1CTIPS, SAFE COOKING (ENGLISH)
2ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
3Element, Warm
4ELEMENT (3200W) (RIGHT FRONT)
5MAY W10664054
6SPRING, ELEMENT
7MAY W10260946
8ELEMENT, SURFACE (700W) (RIGHT REAR)
9ELEMENT, TRIPLE (2700W) (LEFT FRONT)
