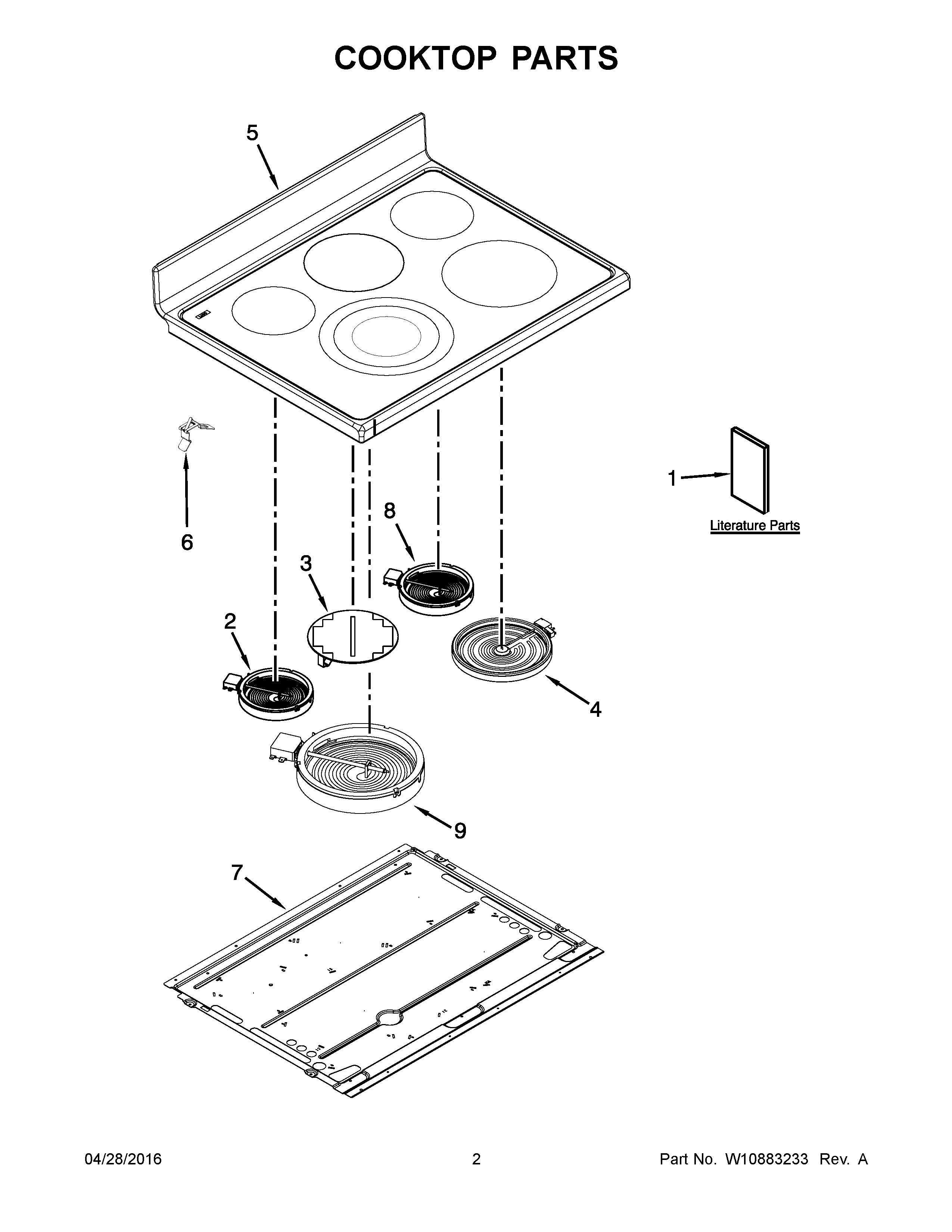

MET8820DS03 02 – COOKTOP PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIMAY W10825606
NIMAY W10825612
NIMAY W10745683
NIHARNESS, EOL (MRC)
NIWIRING HARNESS PARTS, HARNESS, INFINITE SWITCH LEFT
NIWIRING HARNESS PARTS, HARNESS, COOKTOP
NIBLOCK, WIRE ADAPTER (3)
NISCREW, GROUND (GRN)
NIClip, Wire
1DTIPS, SAFE COOKING (ENGLISH)
1ETIPS, SAFE COOKING (FRENCH)
1CDIAGRAM, ELECTRIC WIRE
1BMAY W10647745
1AMAY W10748894
1MAY W10430958
2ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
3Element, Warm
4ELEMENT (3200W) (RIGHT FRONT)
5MAY W10664054
6SPRING, ELEMENT
7MAY W10260946
8ELEMENT, SURFACE (700W) (RIGHT REAR)
9ELEMENT, TRIPLE (2700W) (LEFT FRONT)
