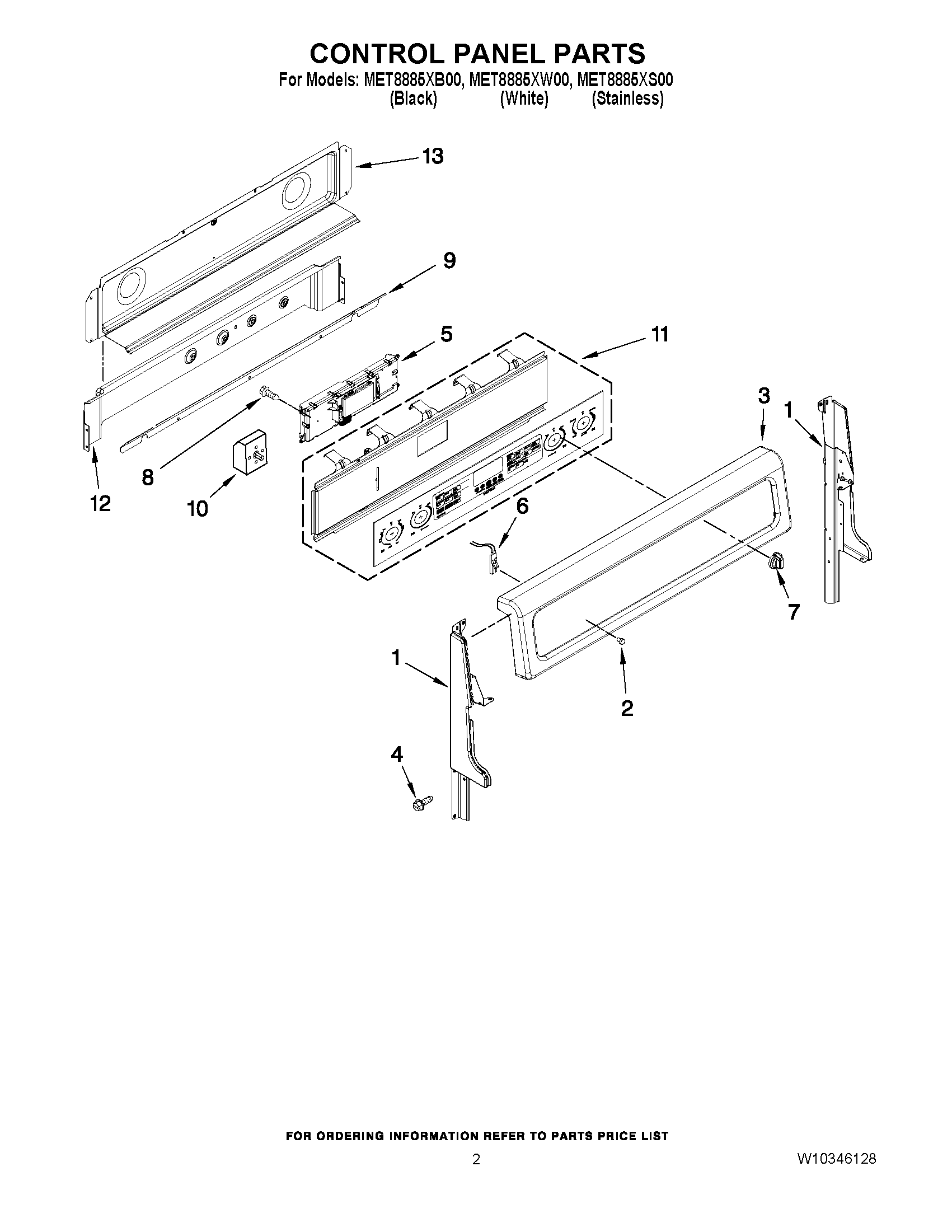

MET8885XB00 02 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY W10319112
1MAY W10319109
1MAY W10319110
1MAY W10319111
2MAY 3196068
3CONSOLE (STAINLESS)
3MAY W10097270
3MAY W10097280
4Screw (2) (Black)
5MAY W10293884
6MAY 7407P136-60
7MAY W10294794
7MAY W10294796
8MAY 7101P500-60
9SHIELD, WIRE COVER
10SWITCH, INFINITE (RIGHT FRONT)
10SWITCH, INFINITE (LEFT REAR & RIGHT REAR)
10SWITCH, INFINITE (LEFT FRONT)
10SWITCH, INFINITE (LEFT FRONT)
11ASSEMBLY, MEMBRANE (INCL. BRACKET) (STAINLESS)
11ASSEMBLY, MEMBRANE (INCL. BRACKET) (WHITE)
11ASSEMBLY, MEMBRANE (INCL. BRACKET) (BLACK)
12MAY W10278697
13COVER, BACKGUARD
