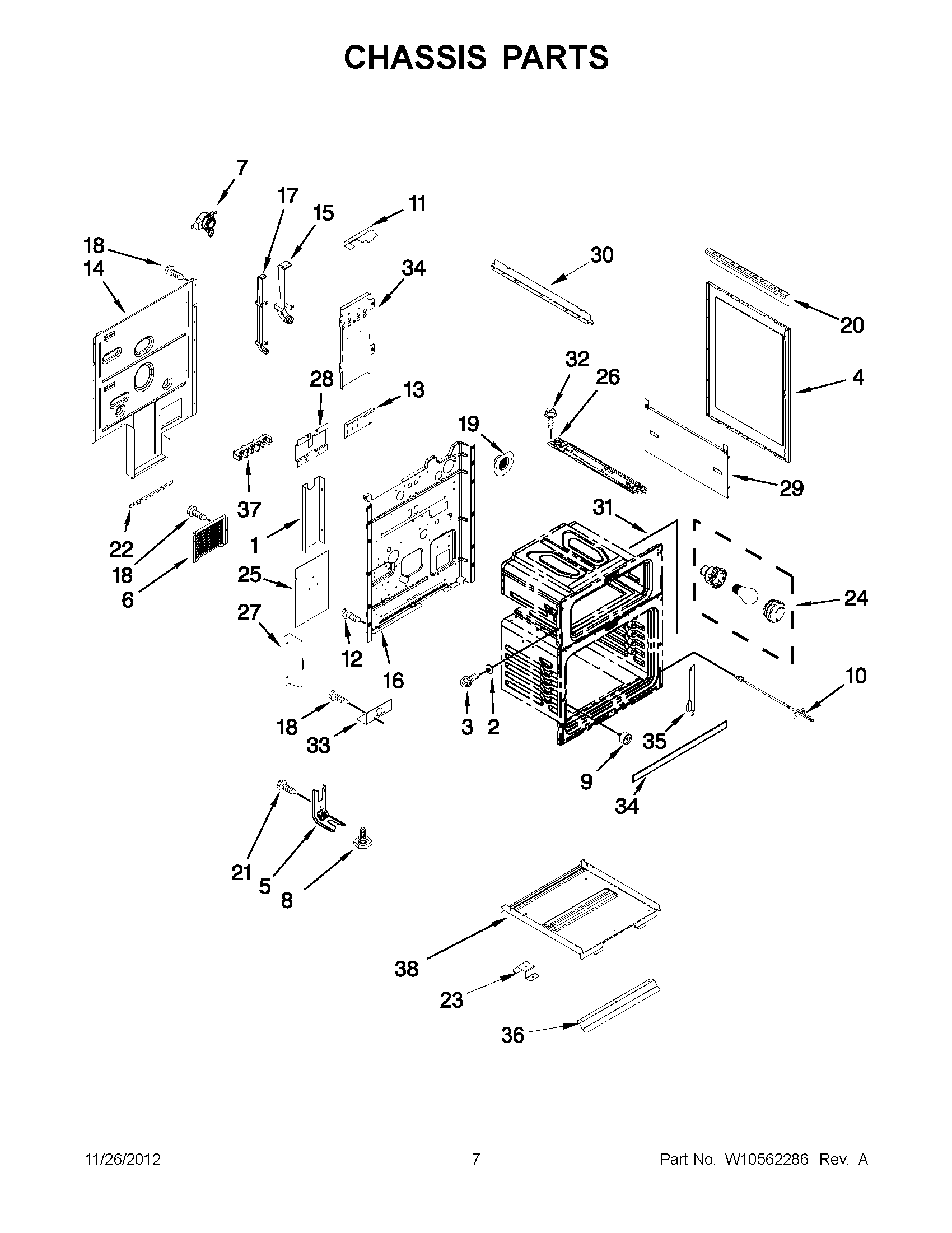

MET8885XS02 03 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, BACK
NI	MAY W10272326
NI	INSULATION, WRAPPER
NI	INSULATION, MIDDLE
NI	INSULATION, MAIN FRONT STRIP
NI	MAY W10271637
1	MAY W10332459
2	MAY W10237689
3	MAY W10267456
4	PANEL, SIDE (BLACK)
4	PANEL, SIDE (WHITE)
5	BRACKET, ANTI-TIP
6	MAY W10312612
7	SWITCH, HI LIMIT
8	Leg, Leveling
9	ASSEMBLY, BUMPER
10	SENSOR, OVEN
11	MAY W10268559
12	MAY 7101P426- 60
13	MAY W10332449
14	MAY W10261386
15	MAY W10337391
16	MAY W10260583
17	MAY W10323793
18	MAY 7101P434-60
19	MAY W10322408
20	BRACKET, U CHANNEL
21	SCREW, ANTI-TIP KIT
22	SHIELD, POWER CORD
23	CLIP, RETAINING
24	MAY W10512757
25	SHIELD, CORD RIGHT
26	MAY W10471348
27	COVER, WIRE LOWER
28	INSULATOR, HEAT SHIELD
29	SHIELD, SIDE INSULATION
30	MAY W10357697
31	MAY W10269069
31	MAY W10337392
32	Screw (Black) (2)
33	BRACKET, POWER SUPPLY
34	MAY W10261388
35	MAY W10410461
35	MAY W10410463
36	BRACKET, RETAINING
37	WPW10245259 Whirlpool Terminal Block
38	MAY W10253469
