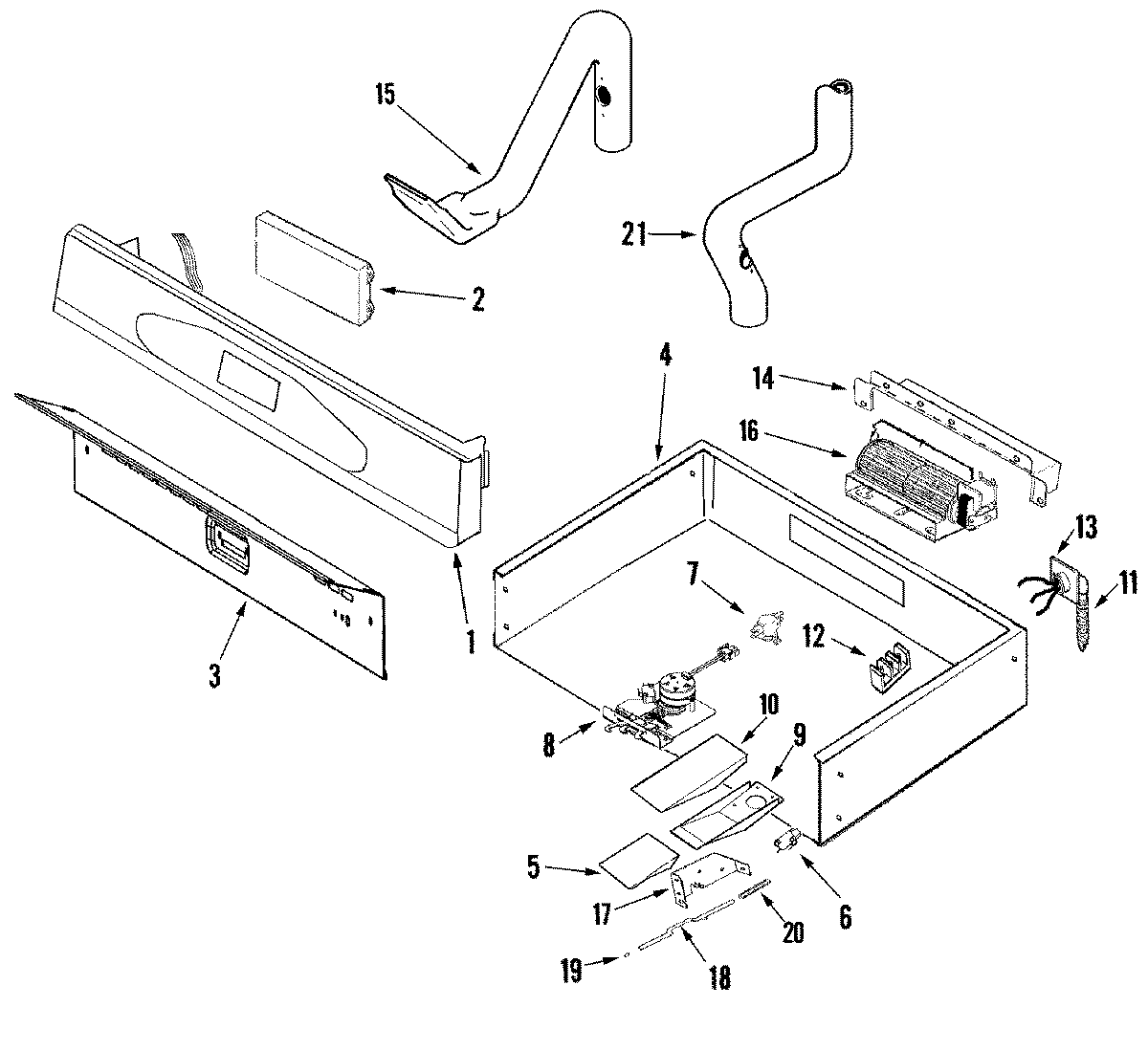

MEW5627DDW 02 – CONTROL PANEL AND INTERNAL CONTROLS

Products

PositionProduct
1MAY 74008778
2MAY 74008268
2MAY 74008990
3MAY 74008968
4MAY 74008969
5MAY 71001843
6MAY 74008264
6WP74008263 Whirlpool Door Switch
774008265 Whirlpool Oven High Limit Thermostat
77403P855-60 Whirlpool Thermostat
8WPW10186996 Whirlpool Door Latch
8MAY 7101P330-60
9MAY 74008294
10MAY 71001847
11MAY 74004726
11MAY 74004222
12MAY 7417P017-60
12WPW10245259 Whirlpool Terminal Block
12KIT, HARDWARE ADAPTER
12WP7103P027-60 Whirlpool Nut
13MAY 74004712
14WP90767 Whirlpool Screw
14MAY 74008330
15MAY 71002417
16MAY 74009596
16MAY 74009597
16MAY 74009598
16NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
17BRACKET, SWITCH ACTUATOR
18ROD, DOOR LIGHT SWITCH
19MAY 74007586
21MAY 71002418
