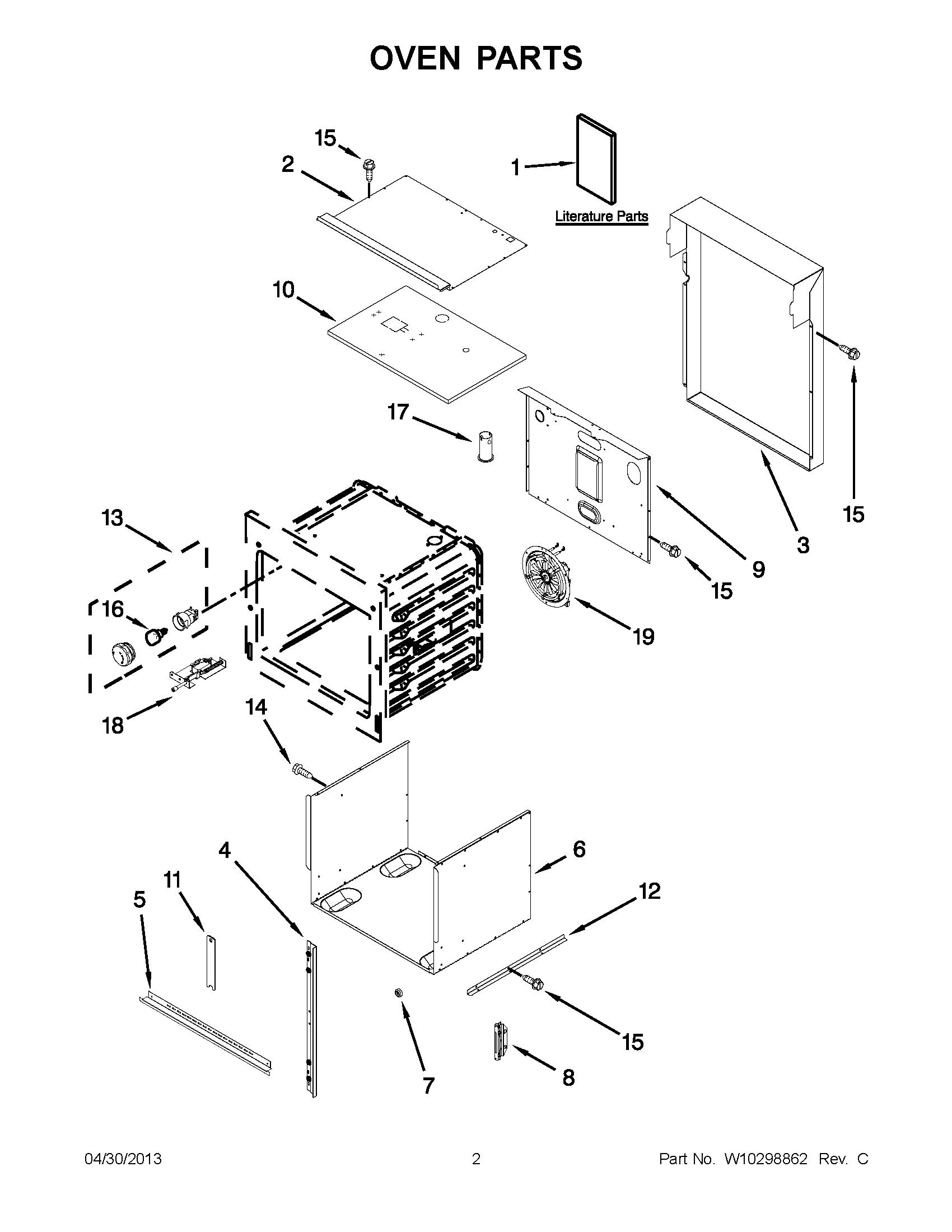

MEW6527DDS18 01 – OVEN PARTSadmin2025-04-26T09:07:55+00:00MEW6527DDS18 01 – OVEN PARTS
Products
| Position | Product |
|---|
| NI | MAY 7002P368-60 |
| NI | INSULATION, BACK |
| NI | MAY 7002P251-60 |
| NI | LINER (NOT A SERVICEABLE PART) |
| 1 | TIPS, SAFE COOKING (ENGLISH) |
| 1 | DIAGRAM, WIRING (ENGLISH) |
| 1 | DIAGRAM, WIRING (FRENCH) |
| 1 | OWNERS MANUAL BROCHURE, TIPS |
| 1 | TIPS, SAFE COOKING (FRENCH) |
| 1 | MAY W10176681 |
| 2 | MAY 2624F075-51 |
| 3 | MAY 2624F061-51 |
| 4 | TRIM, SIDE (BLACK) |
| 4 | MAY 7744P435-60 |
| 5 | MAY 3608F084-71 |
| 5 | TRIM, OVEN (BLACK) |
| 6 | MAY 2618F221-51 |
| 7 | BUMPER, RUBBER |
| 8 | MAY 8014P031-60 |
| 9 | MAY 2624F055-51 |
| 10 | MAY 7002P357-60 |
| 11 | MAY 3605F236-50 |
| 12 | MAY 3802F116-51 |
| 13 | MAY 7407P181-60 |
| 14 | MAY 7101P635-60 |
| 15 | MAY 7101P426- 60 |
| 16 | RANGE ONLY 40W 120V APPL BULB |
| 17 | MAY 7505P322-60 |
| 18 | ASSY., LIGHT SW |
| 19 | FAN, CONVECTION |
