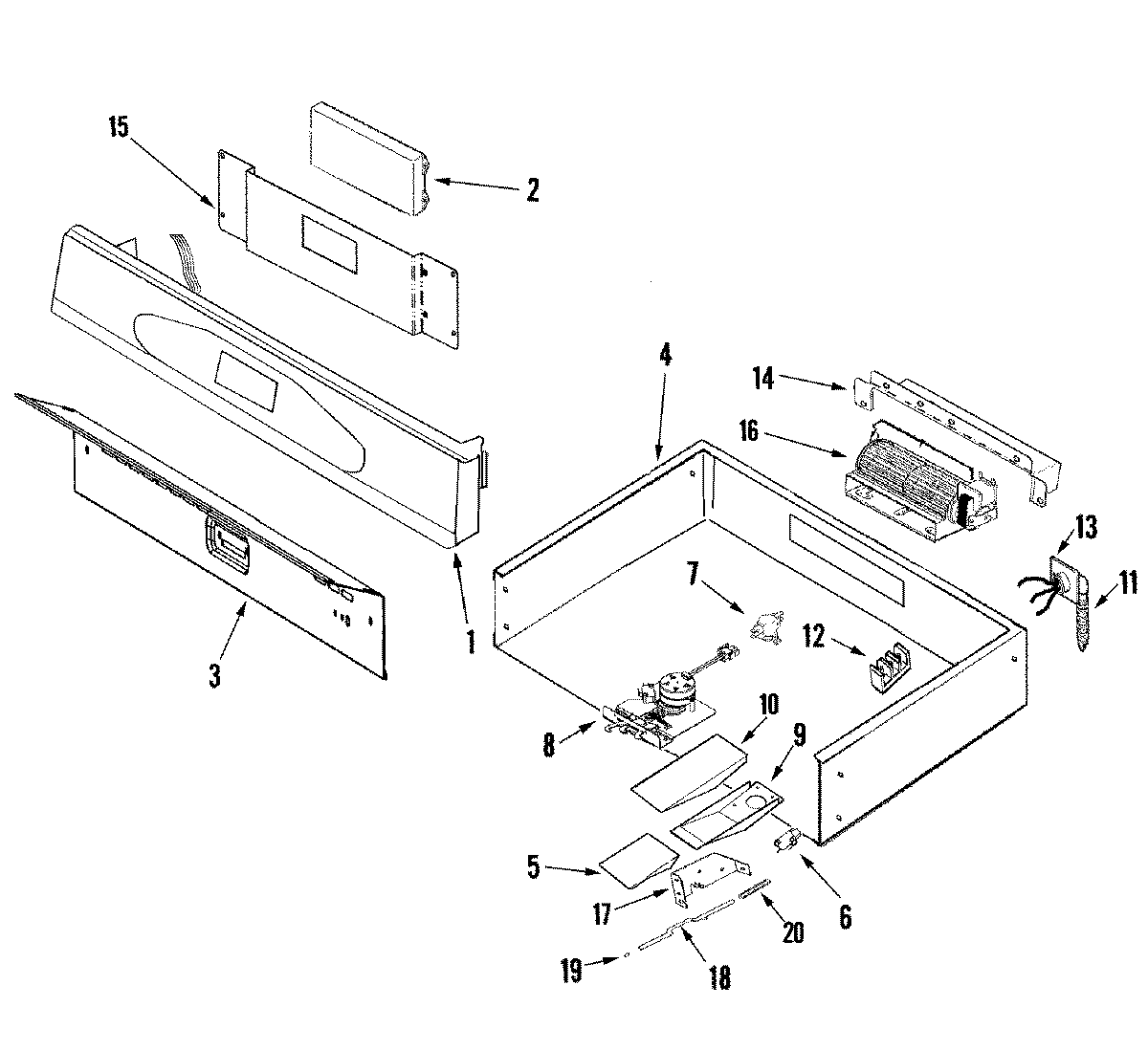

MEW6527DDW 02 – CONTROL PANEL AND INTERNAL CONTROLS

Products

Position	Product
1	5765M483-60 Whirlpool Control Panel
2	MAY 74008268
2	MAY 74008998
3	MAY 74008968
4	MAY 74008969
5	MAY 71001843
6	SWTCH-LITE
6	MAY 74008264
6	WP74008263 Whirlpool Door Switch
7	74008265 Whirlpool Oven High Limit Thermostat
8	MAY 7101P330-60
8	WPW10186996 Whirlpool Door Latch
9	MAY 74008294
10	MAY 71001847
11	MAY 74004222
11	MAY 74004735
12	MAY 7417P017-60
12	WP7103P027-60 Whirlpool Nut
12	WPW10245259 Whirlpool Terminal Block
12	KIT, HARDWARE ADAPTER
13	MAY 74004712
14	MAY 74008330
14	WP90767 Whirlpool Screw
15	MAY 74008299
16	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
16	MAY 74009598
16	MAY 74009597
16	MAY 74009596
17	BRACKET, SWITCH ACTUATOR
18	ROD, DOOR LIGHT SWITCH
19	MAY 74007586
