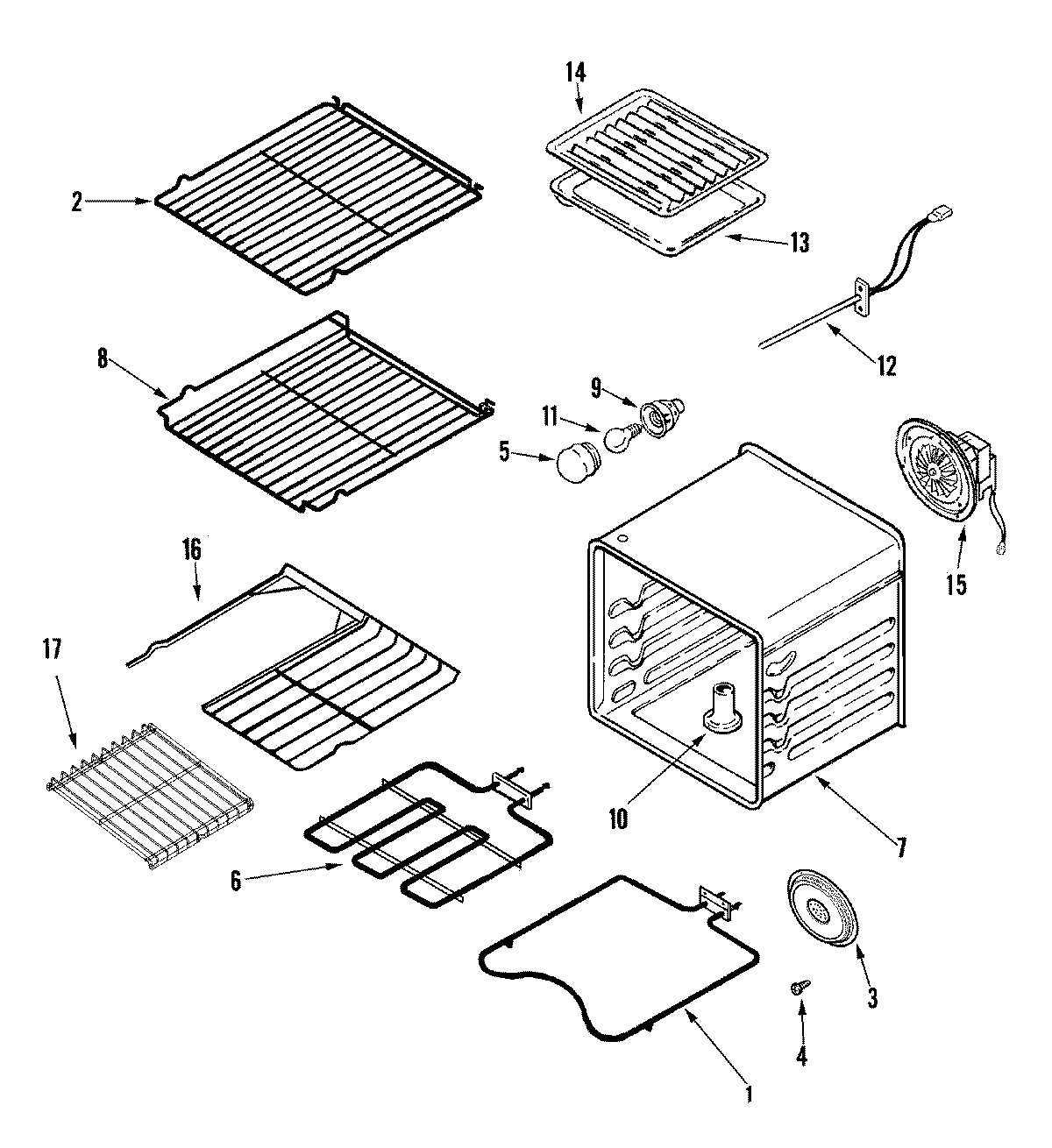

MEW6527DDW 04 – OVEN

Products

Position	Product
1	WP7406P272-60 Whirlpool Bake Element
2	MAY Y704660
2	74009585 Whirlpool Oven Rack
3	COVER, CONVECT FAN
5	MAY 71001867
6	WPW10310260 Whirlpool Broil Element
6	MAY 71001395
7	MAY 71001170
7	MAY 74008964
8	MAY Y704662
9	MAY 71001866
10	MAY 71002419
11	MAY Y707319
12	12001656 Whirlpool Range Oven Temperature Sensor
12	MAY 71001394
13	MAY Y3401F02019
14	MAY Y3413F01619
14	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
15	MAY 74008317
16	MAY 74008465
16	MAY 74009586
17	MAY 74008474
17	MAY 74009588
