MEW6530DDQ 03 – DOOR

MEW6530DDQ 03 – DOOR

Written by

in

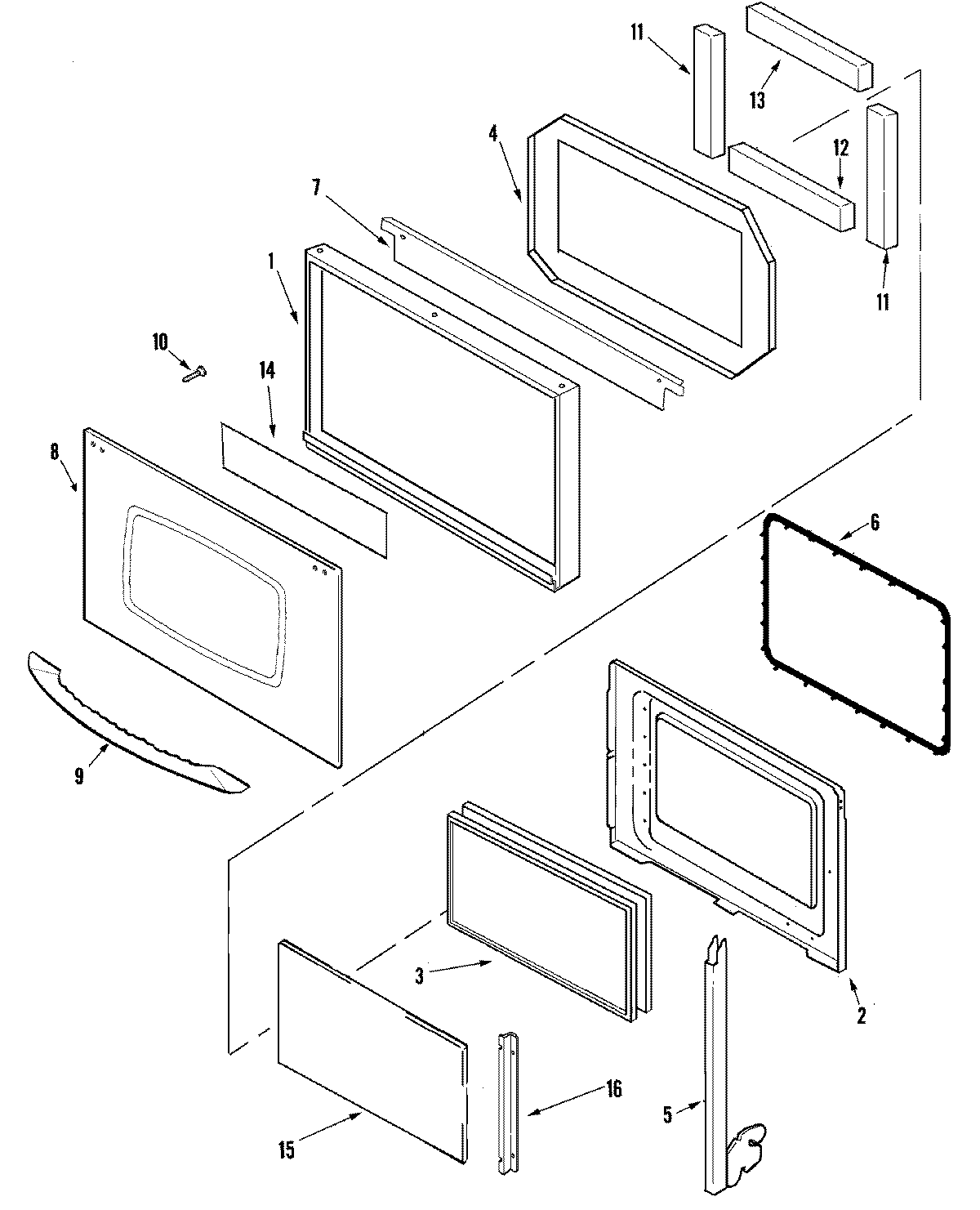

MEW6530DDQ 03 – DOOR

Products

PositionProduct
1MAY 71003563
1MAY 74006755
2MAY 74005642
3MAY 74005641
4MAY 74005648
5WP74009541 Whirlpool Screw Assembly
5WP74008014 Whirlpool Range Oven Door Hinge
6WP71001841 Whirlpool Door Seal
7WP999367 Whirlpool Refrigerator Screw
7MAY 74008284
8MAY 74008996
9WP74011778 Whirlpool Door Handle
9MAY 8010P073-60
10WP74006515 Whirlpool Washer Screw
10MAY 74008302
10WP74005233 Whirlpool Screw
1174008285 Whirlpool Oven Door Insulation (Side)
1274008286 Whirlpool Oven Door Insulation (Bottom)
1374008287 Whirlpool Oven Door Top Insulation
14MAY 74008288
15MAY 74008336
16MAY 74003650
16WP90767 Whirlpool Screw
