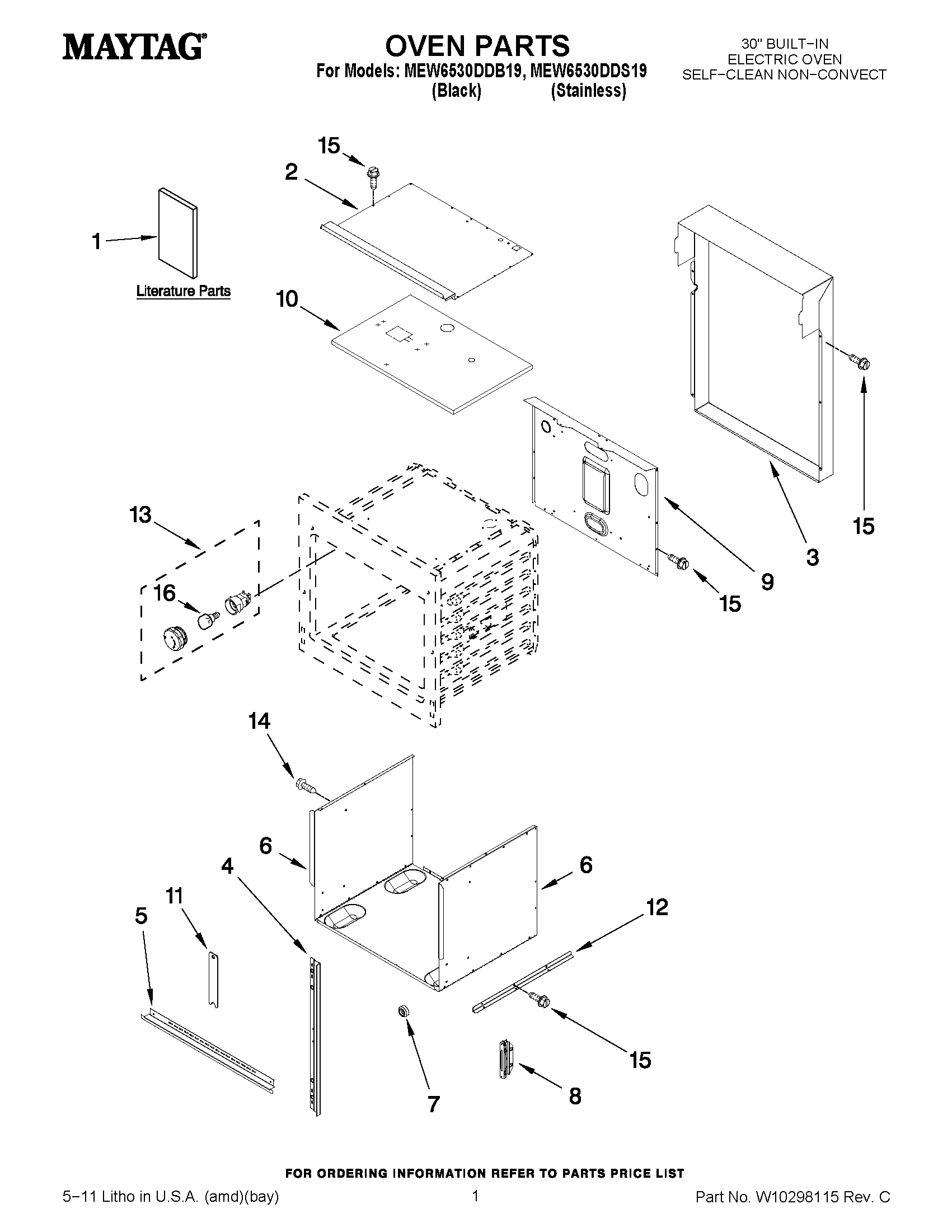

MEW6530DDS19 01 – OVEN PARTS

MEW6530DDS19 01 – OVEN PARTS

Written by

in

MEW6530DDS19 01 – OVEN PARTS

Products

PositionProduct
NIMAY 7002P368-60
NIMAY 7002P251-60
1TIPS, SAFE COOKING (ENGLISH)
1DIAGRAM, WIRING (ENGLISH)
1DIAGRAM, WIRING (FRENCH)
1OWNERS MANUAL BROCHURE, TIPS
1TIPS, SAFE COOKING (FRENCH)
1MAY W10176681
2MAY 2624F074-51
3MAY 2624F061-51
4TRIM, SIDE
5TRIM, OVEN
6MAY 2618F222-51
7BUMPER, RUBBER
8MAY 8014P031-60
9RETAINER, INSUL. (TOP/BACK)
10INSULATION,
11MAY 3605F236-50
12MAY 3802F116-51
13MAY 7407P181-60
14MAY 7101P635-60
15MAY 7101P426- 60
16RANGE ONLY 40W 120V APPL BULB
