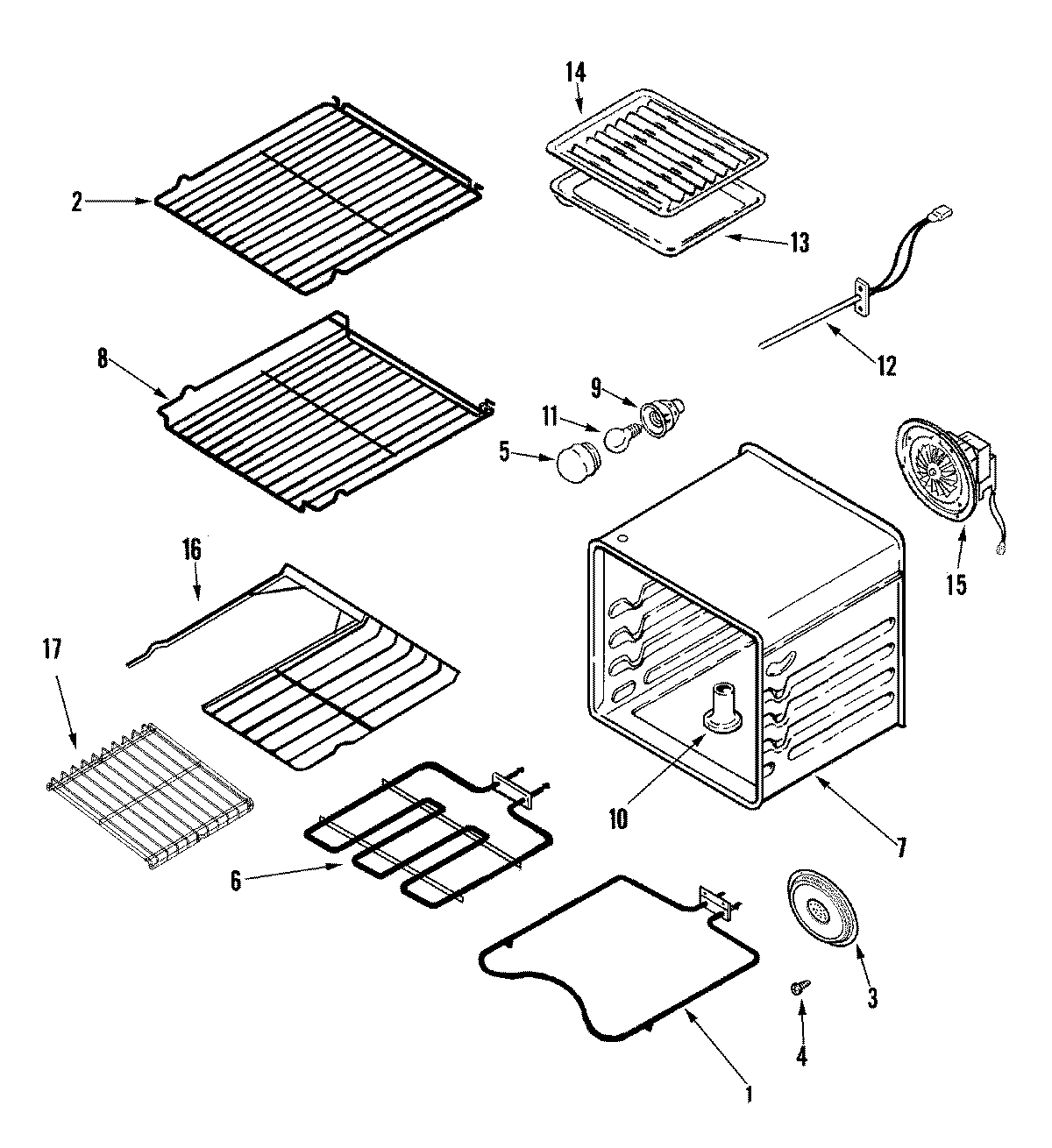

| 1 | WPW10310258 Whirlpool Bake Element |
| 2 | WPW10282527 Whirlpool Oven Rack |
| 3 | COVER, CONVECT FAN |
| 3 | MAY 71002903 |
| 5 | MAY 71001867 |
| 6 | MAY 71001395 |
| 6 | WPW10310260 Whirlpool Broil Element |
| 7 | MAY 74008329 |
| 7 | MAY 71001170 |
| 9 | MAY 71001866 |
| 10 | MAY 71002419 |
| 11 | MAY Y707319 |
| 12 | 12001656 Whirlpool Range Oven Temperature Sensor |
| 13 | MAY Y3401F02019 |
| 14 | MAY Y3413F01619 |
| 14 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 15 | MAY 74008317 |
| 15 | MAY 71001394 |
| 16 | WPW10273862 Whirlpool Oven Rack |
| 16 | MAY 74008994 |
| 17 | INSERT, HALF RACK 30`` |
| 17 | INSERT, HALF RACK 30`` |
