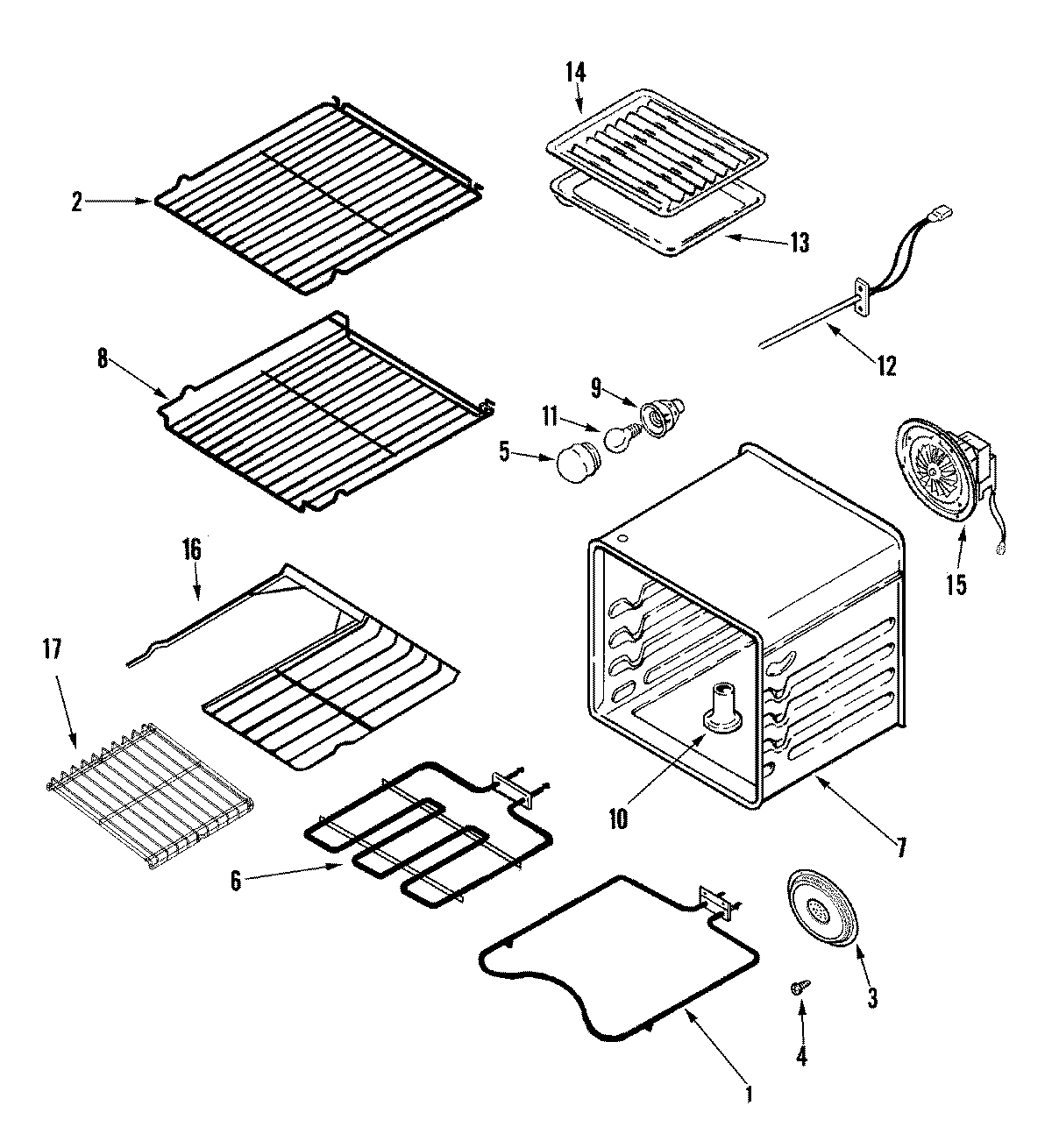

MEW6630DDW 04 – OVEN

Products

Position	Product
1	WPW10310258 Whirlpool Bake Element
2	WPW10282527 Whirlpool Oven Rack
3	COVER, CONVECT FAN
3	MAY 71002903
5	MAY 71001867
6	MAY 71001395
6	WPW10310260 Whirlpool Broil Element
7	MAY 74008329
7	MAY 71001170
9	MAY 71001866
10	MAY 71002419
11	MAY Y707319
12	12001656 Whirlpool Range Oven Temperature Sensor
13	MAY Y3401F02019
14	MAY Y3413F01619
14	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
15	MAY 74008317
15	MAY 71001394
16	WPW10273862 Whirlpool Oven Rack
16	MAY 74008994
17	INSERT, HALF RACK 30“
17	INSERT, HALF RACK 30“
