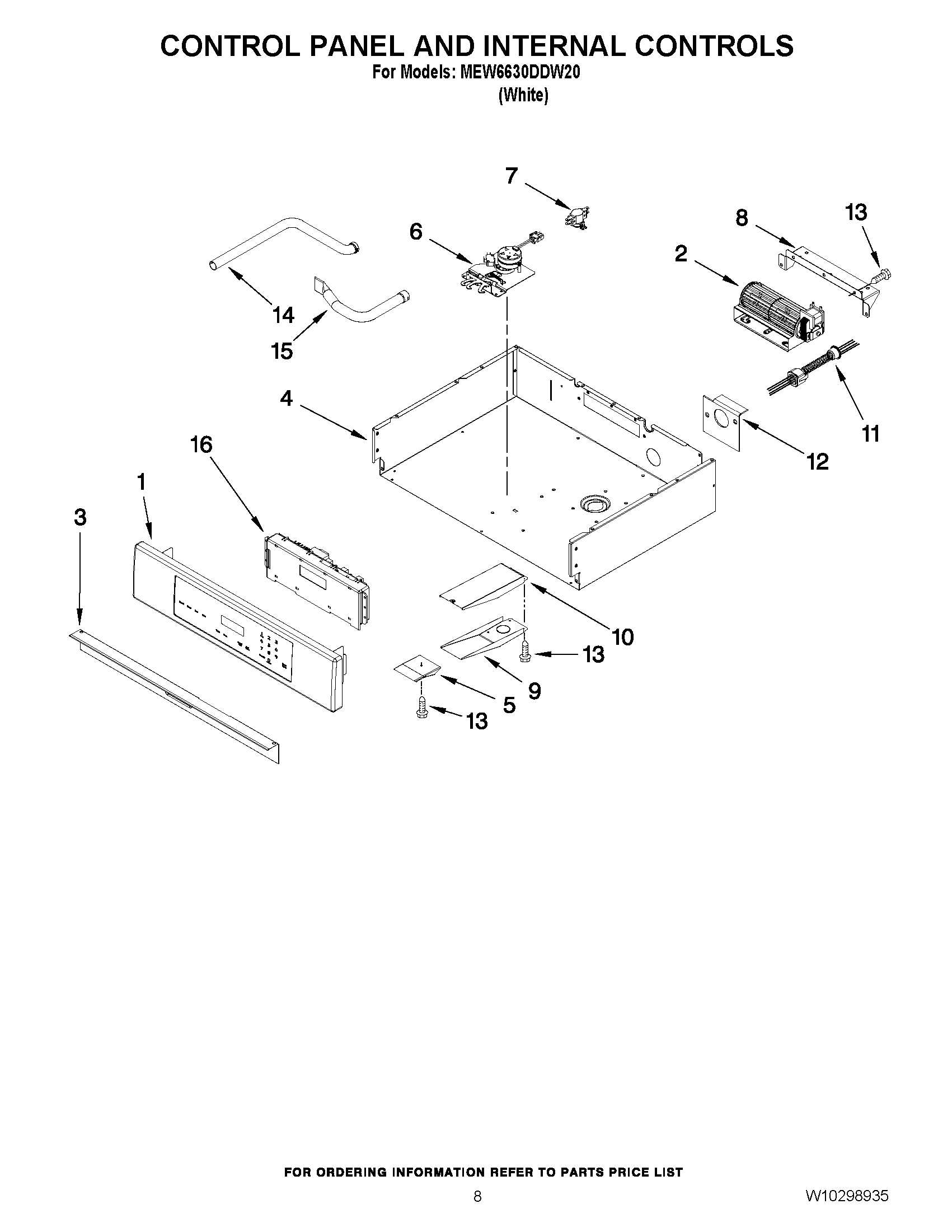

MEW6630DDW20 05 – CONTROL PANEL AND INTERNAL CONTROLS

MEW6630DDW20 05 – CONTROL PANEL AND INTERNAL CONTROLS

Written by

in

MEW6630DDW20 05 – CONTROL PANEL AND INTERNAL CONTROLS

Products

PositionProduct
1ASSEMBLY, CONTROL PANEL (WHITE)
2MAY 7427P079-60
3MAY 3608F105-70
4MAY 4026F092-51
5MAY 8312P232-60
6ASSY., LATCH DOOR
7THERMOSTAT, HI-LIMIT
7THERMOSTAT, HI-LIMIT (LOWER)
8MAY 3801F936-51
9MAY 4011F438-45
10MAY 4006F169-45
11MAY 5700P821-60
12MAY 8020P048-60
13MAY 7101P426- 60
14MAY 7506P404-60
15TUBE, VENT UPPER
16MAY 8507P323-60
