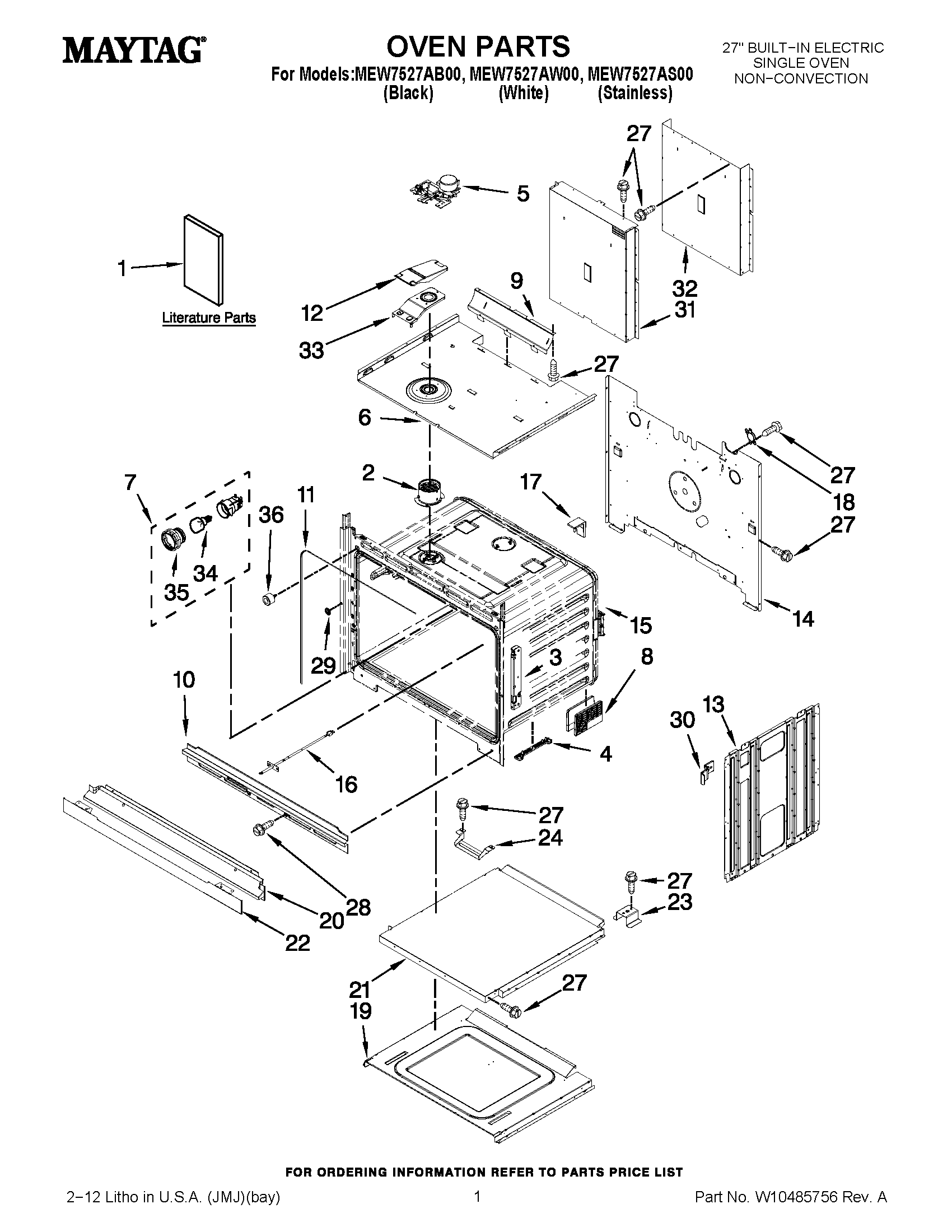

MEW7527AS00 01 – OVEN PARTS

Products

Position	Product
NI	MAY W10282943
NI	INSULATION, BACK
1	INSTRUCTIONS, INSTALLATION (ENGLISH)
1	MAY W10354192
1	INSTR, INSTALLER
1	TECH SHEET (FENCH)
1	MAY W10425193
2	MAY W10282946
3	MAY W10282975
4	MAY W10318220
5	MAY W10314880
6	CHASSIS, TOP
7	LIGHT, INDICATOR
8	MAY W10318219
9	MAY W10351258
10	MAY W10283037
11	MAY W10282961
12	MAY W10282985
13	SIDE, CHASSIS (RIGHT)
14	MAY W10282991
15	LINER (NOT A SERVICEABLE PART)
16	MAY 7430P043-60
17	MAY W10392683
18	THERMOSTAT
19	MAY W10282901
20	MAY W10327375
20	MAY W10351280
22	MAY W10327378
22	MAY W10351237
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
27	MAY 7101P426- 60
28	MAY 4450038
29	MAY W10283016
30	MAY W10347649
31	DUCT, CHASSIS BACK
32	CHASSIS, BOTTOM DUCT
33	MAY W10282984
34	MAY W10412711
35	MAY W10412722
36	BUMPER & SCREW
