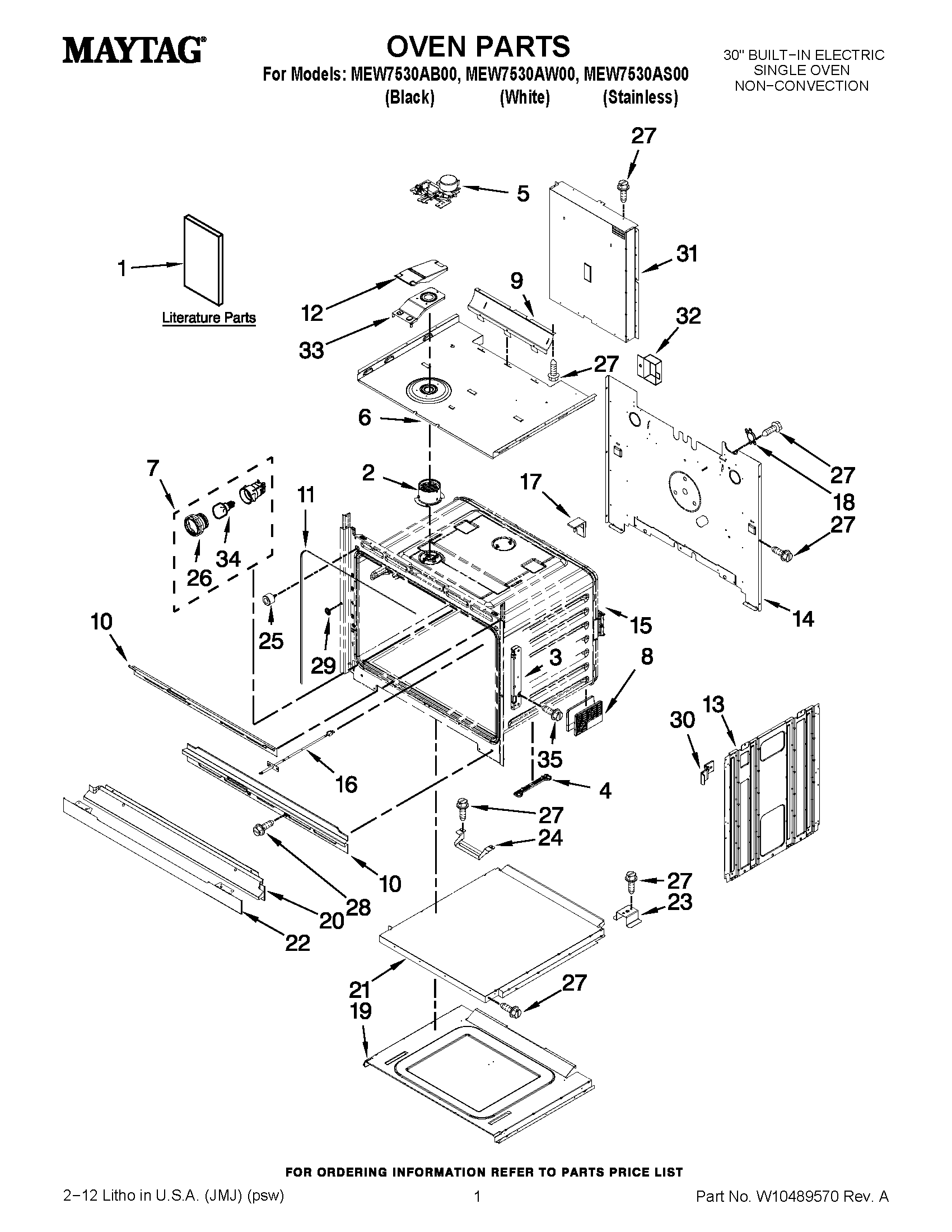

MEW7530AB00 01 – OVEN PARTS

Products

Position	Product
NI	MAY W10282944
NI	MAY W10282942
1	INSTRUCTIONS, INSTALLATION (ENGLISH)
1	MAY W10425193
1	MAY W10354192
1	INSTRUCTIONS, UNDERCOUNTER INSTALL
1	TECH SHEET (FENCH)
1	INSTR, INSTALLER
2	MAY W10282946
3	MAY W10282975
4	MAY W10318220
5	MAY W10314880
6	MAY W10282980
7	LIGHT, INDICATOR
8	MAY W10318219
9	MAY W10351258
10	VENT, TOP 30"
11	MAY W10282960
12	MAY W10282985
13	SIDE, CHASSIS (RIGHT)
14	MAY W10282990
15	LINER (NOT A SERVICEABLE PART)
16	MAY 7430P043-60
17	MAY W10392683
18	THERMOSTAT
19	MAY W10282900
20	MAY W10327373
20	MAY W10351279
21	CHASSIS, BOTTOM DUCT
22	TRIM, BOTTOM VENT (STAINLESS)
22	MAY W10351236
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	BUMPER & SCREW
26	MAY W10412722
27	MAY 7101P426- 60
28	MAY 4450038
29	MAY W10283016
30	MAY W10347649
31	DUCT, CHASSIS BACK
32	MAY 8285593
33	MAY W10282984
34	MAY W10412711
35	MAY W10254050
